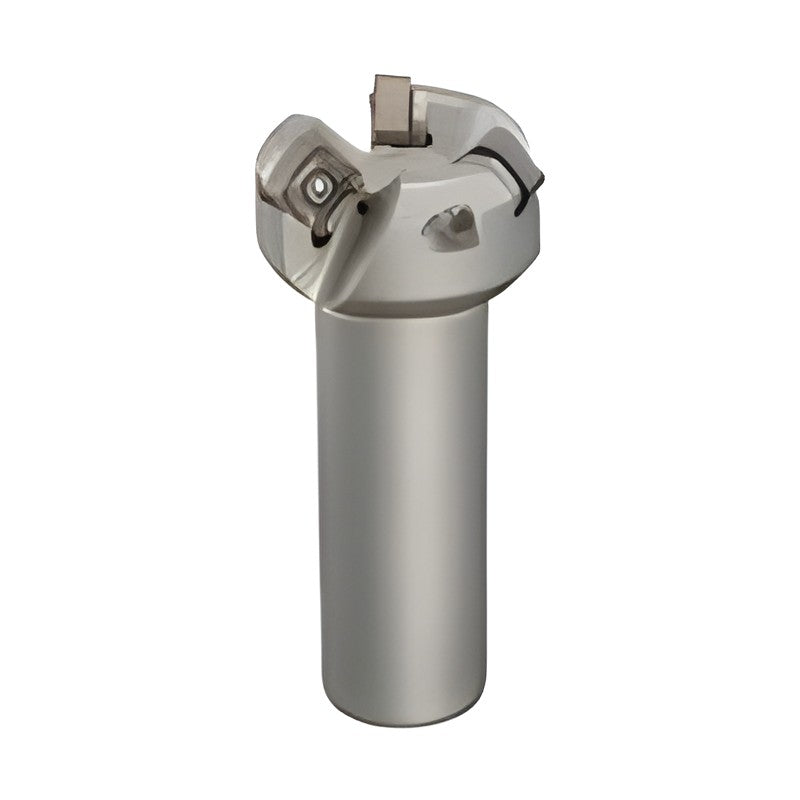

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000EW Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000EW Shank Type Milling Cutter

General-purpose indexable face milling cutter using double-sided SNMT/SNET (8 corners) or ONMT/ONET (16 corners) inserts for economical, high-efficiency milling with high surface quality.

Key features

  • Double-sided inserts with up to 16 usable corners
  • High edge strength for high-efficiency machining
  • Burr-suppressing FG/FL breakers
  • Universal grade ACU2500 for steel, stainless steel and cast iron

Specifications

Insert Not included (sold separately)
DGC13040EW DC (mm): 40 (42.9) | DCX max cutting dia (mm): 54 (50.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 3 | Weight (kg): 0.7 | Stock: Yes
DGC13050EW DC (mm): 50 (52.9) | DCX max cutting dia (mm): 64 (60.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 3 | Weight (kg): 0.9 | Stock: Yes
DGC13063EW DC (mm): 63 (65.9) | DCX max cutting dia (mm): 77 (73.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 4 | Weight (kg): 1.1 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000EW Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (3)

DGC13040EW, DGC13050EW, DGC13063EW

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DGC13040EWDC (mm): 40 (42.9) | DCX max cutting dia (mm): 54 (50.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 3 | Weight (kg): 0.7 | Stock: Yes
DGC13050EWDC (mm): 50 (52.9) | DCX max cutting dia (mm): 64 (60.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 3 | Weight (kg): 0.9 | Stock: Yes
DGC13063EWDC (mm): 63 (65.9) | DCX max cutting dia (mm): 77 (73.8) | DMM shank dia (mm): 32 | LH head length (mm): 40 (38.44) | LF length (mm): 125 | Teeth: 4 | Weight (kg): 1.1 | Stock: Yes
