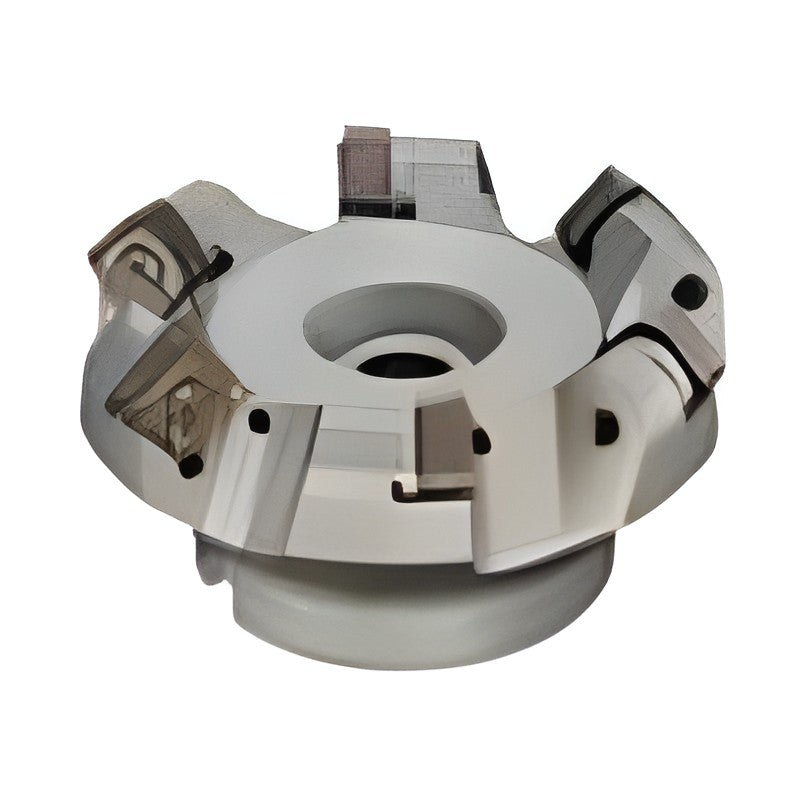

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000R(S) Milling Cutter

General-purpose indexable face milling cutter using double-sided SNMT/SNET (8 corners) or ONMT/ONET (16 corners) inserts for economical, high-efficiency milling with high surface quality.

Key features

  • Double-sided inserts with up to 16 usable corners
  • High edge strength for high-efficiency machining
  • Burr-suppressing FG/FL breakers
  • Universal grade ACU2500 for steel, stainless steel and cast iron

Specifications

Insert Not included (sold separately)
DGC13040RS DC (mm): 40 (42.9) | DCX max cutting dia (mm): 54(50.8) | DCSFMS boss dia (mm): 36 | LF length (mm): 40(38.44) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 13.5 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
DGC13050RS DC (mm): 50 (52.9) | DCX max cutting dia (mm): 64(60.8) | DCSFMS boss dia (mm): 40 | LF length (mm): 40(38.44) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
DGC13063RS DC (mm): 63 (65.9) | DCX max cutting dia (mm): 77(73.8) | DCSFMS boss dia (mm): 50 | LF length (mm): 40(38.44) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
DGC13080RS DC (mm): 80 (82.9) | DCX max cutting dia (mm): 94(90.8) | DCSFMS boss dia (mm): 60 | LF length (mm): 50(48.44) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.2 | Stock: Yes
DGC13100RS DC (mm): 100 (102.9) | DCX max cutting dia (mm): 114(110.8) | DCSFMS boss dia (mm): 70 | LF length (mm): 50(48.44) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.6 | Stock: Yes
DGC13125RS DC (mm): 125 (127.9) | DCX max cutting dia (mm): 139(135.8) | DCSFMS boss dia (mm): 80 | LF length (mm): 63(61.44) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | Teeth: 6 | Weight (kg): 2.8 | Stock: Yes
DGC13160RS DC (mm): 160 (162.9) | DCX max cutting dia (mm): 174(170.8) | DCSFMS boss dia (mm): 100 | LF length (mm): 63(61.44) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 7 | Weight (kg): 4.5 | Stock: Yes
DGC13200RS DC (mm): 200 (202.9) | DCX max cutting dia (mm): 214(210.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 8 | Weight (kg): 7.1 | Stock: Yes
DGC13250RS DC (mm): 250 (252.9) | DCX max cutting dia (mm): 264(260.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 10 | Weight (kg): 10.6 | Stock: Yes
DGC13080R DC (mm): 80 (82.9) | DCX max cutting dia (mm): 94(90.8) | DCSFMS boss dia (mm): 60 | LF length (mm): 50(48.44) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.2 | Stock: Yes
DGC13100R DC (mm): 100 (102.9) | DCX max cutting dia (mm): 114(110.8) | DCSFMS boss dia (mm): 70 | LF length (mm): 63(61.44) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 28 | Teeth: 5 | Weight (kg): 2.2 | Stock: Yes
DGC13125R DC (mm): 125 (127.9) | DCX max cutting dia (mm): 139(135.8) | DCSFMS boss dia (mm): 80 | LF length (mm): 63(61.44) | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | Teeth: 6 | Weight (kg): 2.8 | Stock: Yes
DGC13160R DC (mm): 160 (162.9) | DCX max cutting dia (mm): 174(170.8) | DCSFMS boss dia (mm): 100 | LF length (mm): 63(61.44) | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 7 | Weight (kg): 4.5 | Stock: Yes
DGC13200R DC (mm): 200 (202.9) | DCX max cutting dia (mm): 214(210.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 8 | Weight (kg): 7.1 | Stock: Yes
DGC13250R DC (mm): 250 (252.9) | DCX max cutting dia (mm): 264(260.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 150 | Teeth: 10 | Weight (kg): 11.0 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DGC 13000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (15)

DGC13040RS, DGC13050RS, DGC13063RS, DGC13080RS, DGC13100RS, DGC13125RS, DGC13160RS, DGC13200RS, DGC13250RS, DGC13080R + 5 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DGC13040RSDC (mm): 40 (42.9) | DCX max cutting dia (mm): 54(50.8) | DCSFMS boss dia (mm): 36 | LF length (mm): 40(38.44) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 13.5 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
DGC13050RSDC (mm): 50 (52.9) | DCX max cutting dia (mm): 64(60.8) | DCSFMS boss dia (mm): 40 | LF length (mm): 40(38.44) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 3 | Weight (kg): 0.4 | Stock: Yes
DGC13063RSDC (mm): 63 (65.9) | DCX max cutting dia (mm): 77(73.8) | DCSFMS boss dia (mm): 50 | LF length (mm): 40(38.44) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
DGC13080RSDC (mm): 80 (82.9) | DCX max cutting dia (mm): 94(90.8) | DCSFMS boss dia (mm): 60 | LF length (mm): 50(48.44) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.2 | Stock: Yes
DGC13100RSDC (mm): 100 (102.9) | DCX max cutting dia (mm): 114(110.8) | DCSFMS boss dia (mm): 70 | LF length (mm): 50(48.44) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.5 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.6 | Stock: Yes
DGC13125RSDC (mm): 125 (127.9) | DCX max cutting dia (mm): 139(135.8) | DCSFMS boss dia (mm): 80 | LF length (mm): 63(61.44) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | Teeth: 6 | Weight (kg): 2.8 | Stock: Yes
DGC13160RSDC (mm): 160 (162.9) | DCX max cutting dia (mm): 174(170.8) | DCSFMS boss dia (mm): 100 | LF length (mm): 63(61.44) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.5 | CBDP mounting depth (mm): 29 | D1 (mm): 88 | Teeth: 7 | Weight (kg): 4.5 | Stock: Yes
DGC13200RSDC (mm): 200 (202.9) | DCX max cutting dia (mm): 214(210.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 8 | Weight (kg): 7.1 | Stock: Yes
DGC13250RSDC (mm): 250 (252.9) | DCX max cutting dia (mm): 264(260.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 10 | Weight (kg): 10.6 | Stock: Yes
DGC13080RDC (mm): 80 (82.9) | DCX max cutting dia (mm): 94(90.8) | DCSFMS boss dia (mm): 60 | LF length (mm): 50(48.44) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.2 | Stock: Yes
DGC13100RDC (mm): 100 (102.9) | DCX max cutting dia (mm): 114(110.8) | DCSFMS boss dia (mm): 70 | LF length (mm): 63(61.44) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 28 | Teeth: 5 | Weight (kg): 2.2 | Stock: Yes
DGC13125RDC (mm): 125 (127.9) | DCX max cutting dia (mm): 139(135.8) | DCSFMS boss dia (mm): 80 | LF length (mm): 63(61.44) | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | Teeth: 6 | Weight (kg): 2.8 | Stock: Yes
DGC13160RDC (mm): 160 (162.9) | DCX max cutting dia (mm): 174(170.8) | DCSFMS boss dia (mm): 100 | LF length (mm): 63(61.44) | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 7 | Weight (kg): 4.5 | Stock: Yes
DGC13200RDC (mm): 200 (202.9) | DCX max cutting dia (mm): 214(210.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 130 | Teeth: 8 | Weight (kg): 7.1 | Stock: Yes
DGC13250RDC (mm): 250 (252.9) | DCX max cutting dia (mm): 264(260.8) | DCSFMS boss dia (mm): 130 | LF length (mm): 63(61.44) | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 150 | Teeth: 10 | Weight (kg): 11.0 | Stock: Yes
