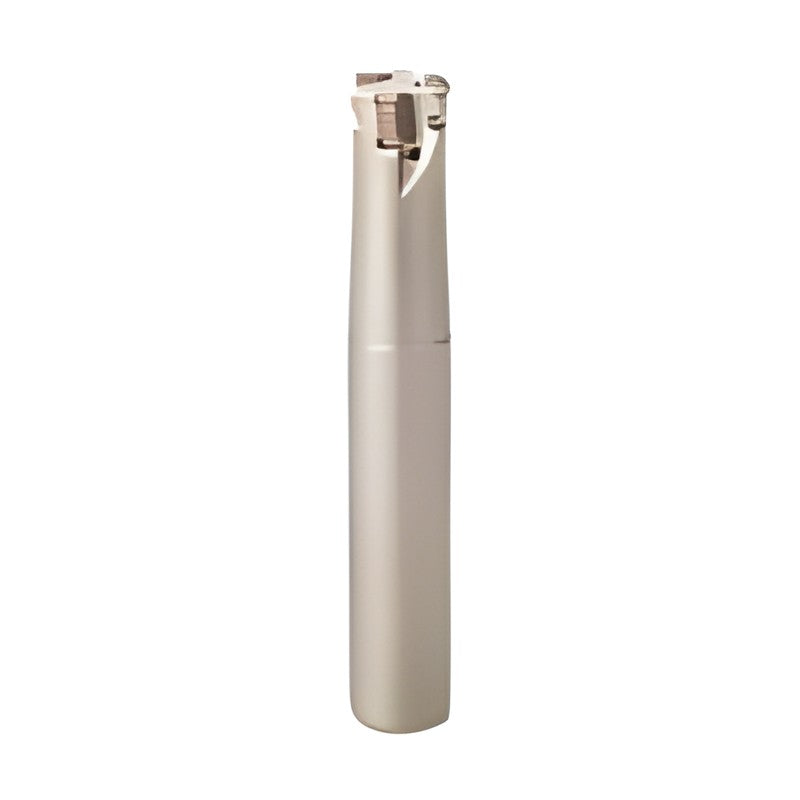

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000E(L) High-Feed Shank Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000E(L) High-Feed Shank Cutter

High-feed cutter whose compound-arc cutting edge combines a small lead angle with a large depth of cut, allowing feeds up to 3.5 mm/t.

Key features

  • Compound-arc cutting edge for small lead angle and large depth of cut
  • Feed per tooth up to 3.5 mm/t
  • Cutting forces directed axially for stable long-overhang machining
DMSL06016E02 Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
DMSL06018E02 Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
DMSL06020E03 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.27 | Stock: Yes
DMSL06020E04 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.27 | Stock: Yes
DMSL06022E03 Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.29 | Stock: Yes
DMSL06022E04 Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.29 | Stock: Yes
DMSL06025E04 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 4 | Weight (kg): 0.46 | Stock: Yes
DMSL06025E05 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 5 | Weight (kg): 0.46 | Stock: Yes
DMSL06028E04 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 4 | Weight (kg): 0.49 | Stock: Yes
DMSL06028E05 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 5 | Weight (kg): 0.48 | Stock: Yes
DMSL06030E05 Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.81 | Stock: Yes
DMSL06032E05 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.82 | Stock: Yes
DMSL06032E06 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.82 | Stock: Yes
DMSL06035E05 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.88 | Stock: Yes
DMSL06035E06 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.88 | Stock: Yes
DMSL06040E06 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.91 | Stock: Yes
DMSL06016EL02 Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
DMSL06018EL02 Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.21 | Stock: Yes
DMSL06020EL03 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 80 | Overall length LF (mm): 160 | Teeth: 3 | Weight (kg): 0.33 | Stock: Yes
DMSL06022EL03 Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 160 | Teeth: 3 | Weight (kg): 0.36 | Stock: Yes
DMSL06025EL04 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 100 | Overall length LF (mm): 170 | Teeth: 4 | Weight (kg): 0.54 | Stock: Yes
DMSL06028EL04 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 170 | Teeth: 4 | Weight (kg): 0.60 | Stock: Yes
DMSL06030EL05 Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 5 | Weight (kg): 1.01 | Stock: Yes
DMSL06032EL05 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 5 | Weight (kg): 1.06 | Stock: Yes
DMSL06035EL05 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 5 | Weight (kg): 1.21 | Stock: Yes
DMSL06040EL06 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 6 | Weight (kg): 1.24 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000E(L) High-Feed Shank Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (26)

DMSL06016E02, DMSL06018E02, DMSL06020E03, DMSL06020E04, DMSL06022E03, DMSL06022E04, DMSL06025E04, DMSL06025E05, DMSL06028E04, DMSL06028E05 + 16 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMSL06016E02Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
DMSL06018E02Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Overall length LF (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
DMSL06020E03Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.27 | Stock: Yes
DMSL06020E04Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.27 | Stock: Yes
DMSL06022E03Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 3 | Weight (kg): 0.29 | Stock: Yes
DMSL06022E04Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Overall length LF (mm): 130 | Teeth: 4 | Weight (kg): 0.29 | Stock: Yes
DMSL06025E04Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 4 | Weight (kg): 0.46 | Stock: Yes
DMSL06025E05Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 5 | Weight (kg): 0.46 | Stock: Yes
DMSL06028E04Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 4 | Weight (kg): 0.49 | Stock: Yes
DMSL06028E05Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 5 | Weight (kg): 0.48 | Stock: Yes
DMSL06030E05Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.81 | Stock: Yes
DMSL06032E05Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.82 | Stock: Yes
DMSL06032E06Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.82 | Stock: Yes
DMSL06035E05Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 5 | Weight (kg): 0.88 | Stock: Yes
DMSL06035E06Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.88 | Stock: Yes
DMSL06040E06Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 6 | Weight (kg): 0.91 | Stock: Yes
DMSL06016EL02Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
DMSL06018EL02Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Shank dia DMM (mm): 16 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.21 | Stock: Yes
DMSL06020EL03Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Shank dia DMM (mm): 20 | Head length LH (mm): 80 | Overall length LF (mm): 160 | Teeth: 3 | Weight (kg): 0.33 | Stock: Yes
DMSL06022EL03Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Shank dia DMM (mm): 20 | Head length LH (mm): 60 | Overall length LF (mm): 160 | Teeth: 3 | Weight (kg): 0.36 | Stock: Yes
DMSL06025EL04Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 100 | Overall length LF (mm): 170 | Teeth: 4 | Weight (kg): 0.54 | Stock: Yes
DMSL06028EL04Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 170 | Teeth: 4 | Weight (kg): 0.60 | Stock: Yes
DMSL06030EL05Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 5 | Weight (kg): 1.01 | Stock: Yes
DMSL06032EL05Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Overall length LF (mm): 200 | Teeth: 5 | Weight (kg): 1.06 | Stock: Yes
DMSL06035EL05Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 5 | Weight (kg): 1.21 | Stock: Yes
DMSL06040EL06Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 6 | Weight (kg): 1.24 | Stock: Yes
