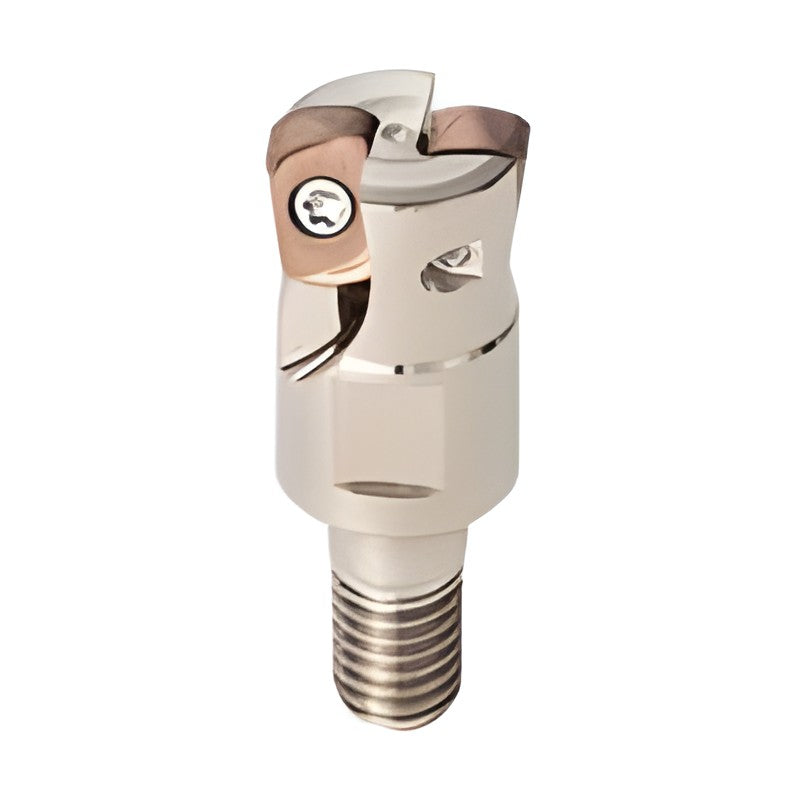

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000M Modular Head

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
DMSL06016M08Z2 Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
DMSL06018M08Z2 Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
DMSL06020M10Z3 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.05 | Stock: Yes
DMSL06020M10Z4 Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 4 | Weight (kg): 0.05 | Stock: Yes
DMSL06022M10Z3 Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
DMSL06022M10Z4 Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 4 | Weight (kg): 0.06 | Stock: Yes
DMSL06025M12Z4 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.10 | Stock: Yes
DMSL06025M12Z5 Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 5 | Weight (kg): 0.10 | Stock: Yes
DMSL06026M12Z4 Max cutting dia DCX (mm): 26 | Cutting dia DC (mm): 18.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.10 | Stock: Yes
DMSL06028M12Z4 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.11 | Stock: Yes
DMSL06028M12Z5 Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 5 | Weight (kg): 0.11 | Stock: Yes
DMSL06030M16Z5 Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.18 | Stock: Yes
DMSL06032M16Z5 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.20 | Stock: Yes
DMSL06032M16Z6 Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.20 | Stock: Yes
DMSL06035M16Z5 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.21 | Stock: Yes
DMSL06035M16Z6 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.21 | Stock: Yes
DMSL06040M16Z6 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.25 | Stock: Yes
DMSL06042M16Z6 Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.26 | Stock: Yes
DMSL06042M16Z7 Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 7 | Weight (kg): 0.26 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (19)

DMSL06016M08Z2, DMSL06018M08Z2, DMSL06020M10Z3, DMSL06020M10Z4, DMSL06022M10Z3, DMSL06022M10Z4, DMSL06025M12Z4, DMSL06025M12Z5, DMSL06026M12Z4, DMSL06028M12Z4 + 9 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMSL06016M08Z2Max cutting dia DCX (mm): 16 | Cutting dia DC (mm): 8.4 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
DMSL06018M08Z2Max cutting dia DCX (mm): 18 | Cutting dia DC (mm): 10.4 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
DMSL06020M10Z3Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.05 | Stock: Yes
DMSL06020M10Z4Max cutting dia DCX (mm): 20 | Cutting dia DC (mm): 12.4 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 4 | Weight (kg): 0.05 | Stock: Yes
DMSL06022M10Z3Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
DMSL06022M10Z4Max cutting dia DCX (mm): 22 | Cutting dia DC (mm): 14.3 | Boss dia DCSFMS (mm): 18 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 15 | Teeth: 4 | Weight (kg): 0.06 | Stock: Yes
DMSL06025M12Z4Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.10 | Stock: Yes
DMSL06025M12Z5Max cutting dia DCX (mm): 25 | Cutting dia DC (mm): 17.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 5 | Weight (kg): 0.10 | Stock: Yes
DMSL06026M12Z4Max cutting dia DCX (mm): 26 | Cutting dia DC (mm): 18.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.10 | Stock: Yes
DMSL06028M12Z4Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 4 | Weight (kg): 0.11 | Stock: Yes
DMSL06028M12Z5Max cutting dia DCX (mm): 28 | Cutting dia DC (mm): 20.3 | Boss dia DCSFMS (mm): 22 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 11 | Width across flats H (mm): 19 | Teeth: 5 | Weight (kg): 0.11 | Stock: Yes
DMSL06030M16Z5Max cutting dia DCX (mm): 30 | Cutting dia DC (mm): 22.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.18 | Stock: Yes
DMSL06032M16Z5Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.20 | Stock: Yes
DMSL06032M16Z6Max cutting dia DCX (mm): 32 | Cutting dia DC (mm): 24.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.20 | Stock: Yes
DMSL06035M16Z5Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 5 | Weight (kg): 0.21 | Stock: Yes
DMSL06035M16Z6Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 27.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.21 | Stock: Yes
DMSL06040M16Z6Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.25 | Stock: Yes
DMSL06042M16Z6Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 6 | Weight (kg): 0.26 | Stock: Yes
DMSL06042M16Z7Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 12 | Width across flats H (mm): 24 | Teeth: 7 | Weight (kg): 0.26 | Stock: Yes
