• Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000R(S) High-Feed Shell Cutter
1 1

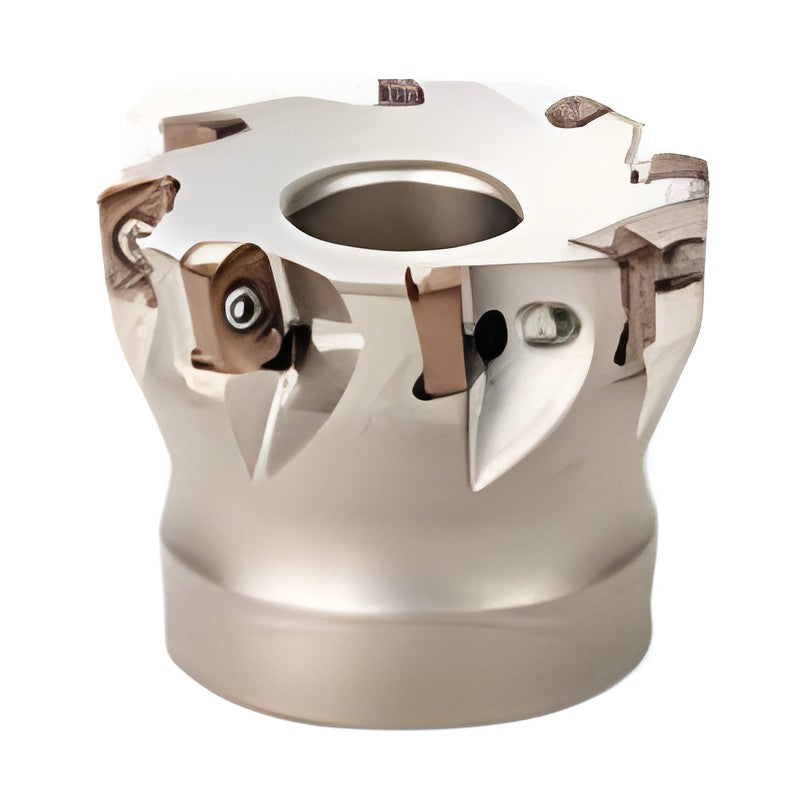

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000R(S) High-Feed Shell Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000R(S) High-Feed Shell Cutter

High-feed cutter whose compound-arc cutting edge combines a small lead angle with a large depth of cut, allowing feeds up to 3.5 mm/t.

Key features

  • Compound-arc cutting edge for small lead angle and large depth of cut
  • Feed per tooth up to 3.5 mm/t
  • Cutting forces directed axially for stable long-overhang machining
DMSL06040RS05 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.20 | Stock: Yes
DMSL06040RS06 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.20 | Stock: Yes
DMSL06040RS07 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 7 | Weight (kg): 0.19 | Stock: Yes
DMSL06042RS06 Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.21 | Stock: Yes
DMSL06042RS07 Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 7 | Weight (kg): 0.21 | Stock: Yes
DMSL06050RS05 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.31 | Stock: Yes
DMSL06050RS08 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.30 | Stock: Yes
DMSL06052RS06 Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 44.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.32 | Stock: Yes
DMSL06052RS08 Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 44.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.31 | Stock: Yes
DMSL06063RS09 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 55.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.52 | Stock: Yes
DMSL06066RS09-27 Max cutting dia DCX (mm): 66 | Cutting dia DC (mm): 58.3 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 9 | Weight (kg): 0.77 | Stock: Yes
DMSL06080RS09 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 72.3 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 9 | Weight (kg): 0.94 | Stock: Yes
DMSL06050R05 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.32 | Stock: Yes
DMSL06050R08 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.30 | Stock: Yes
DMSL06063R09 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 55.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.52 | Stock: Yes
DMSL06080R09 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 72.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 27 | Bolt dia D2 (mm): 18 | Teeth: 9 | Weight (kg): 1.39 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSL 06000R(S) High-Feed Shell Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (16)

DMSL06040RS05, DMSL06040RS06, DMSL06040RS07, DMSL06042RS06, DMSL06042RS07, DMSL06050RS05, DMSL06050RS08, DMSL06052RS06, DMSL06052RS08, DMSL06063RS09 + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMSL06040RS05Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.20 | Stock: Yes
DMSL06040RS06Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.20 | Stock: Yes
DMSL06040RS07Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 32.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 7 | Weight (kg): 0.19 | Stock: Yes
DMSL06042RS06Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.21 | Stock: Yes
DMSL06042RS07Max cutting dia DCX (mm): 42 | Cutting dia DC (mm): 34.3 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 7 | Weight (kg): 0.21 | Stock: Yes
DMSL06050RS05Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.31 | Stock: Yes
DMSL06050RS08Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.30 | Stock: Yes
DMSL06052RS06Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 44.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.32 | Stock: Yes
DMSL06052RS08Max cutting dia DCX (mm): 52 | Cutting dia DC (mm): 44.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.31 | Stock: Yes
DMSL06063RS09Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 55.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.52 | Stock: Yes
DMSL06066RS09-27Max cutting dia DCX (mm): 66 | Cutting dia DC (mm): 58.3 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 9 | Weight (kg): 0.77 | Stock: Yes
DMSL06080RS09Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 72.3 | Boss dia DCSFMS (mm): 55 | Height LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 9 | Weight (kg): 0.94 | Stock: Yes
DMSL06050R05Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.32 | Stock: Yes
DMSL06050R08Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 42.3 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.30 | Stock: Yes
DMSL06063R09Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 55.3 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22.225 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.52 | Stock: Yes
DMSL06080R09Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 72.3 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 27 | Bolt dia D2 (mm): 18 | Teeth: 9 | Weight (kg): 1.39 | Stock: Yes
