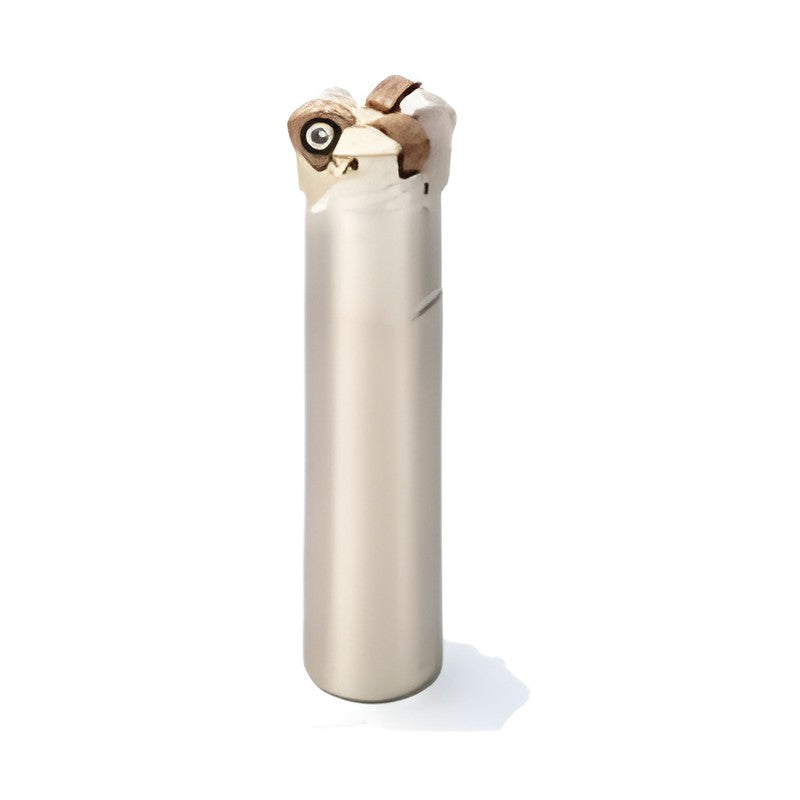

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000E(L) High-Feed Shank Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000E(L) High-Feed Shank Cutter

High-feed cutter whose compound-arc cutting edge combines a small lead angle with a large depth of cut, allowing feeds up to 3.5 mm/t.

Key features

  • Compound-arc cutting edge for small lead angle and large depth of cut
  • Feed per tooth up to 3.5 mm/t
  • Cutting forces directed axially for stable long-overhang machining
DMSW08035E02 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.85 | Stock: Yes
DMSW08040E03 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.86 | Stock: Yes
DMSW08050E03-42 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 33.4 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 1.51 | Stock: Yes
DMSW08035EL02 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 2 | Weight (kg): 1.21 | Stock: Yes
DMSW08040EL03 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 3 | Weight (kg): 1.22 | Stock: Yes
DMSW08050EL03-42 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 33.4 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 2.54 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000E(L) High-Feed Shank Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

DMSW08035E02, DMSW08040E03, DMSW08050E03-42, DMSW08035EL02, DMSW08040EL03, DMSW08050EL03-42

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMSW08035E02Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 2 | Weight (kg): 0.85 | Stock: Yes
DMSW08040E03Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.86 | Stock: Yes
DMSW08050E03-42Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 33.4 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 1.51 | Stock: Yes
DMSW08035EL02Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 2 | Weight (kg): 1.21 | Stock: Yes
DMSW08040EL03Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 210 | Teeth: 3 | Weight (kg): 1.22 | Stock: Yes
DMSW08050EL03-42Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 33.4 | Shank dia DMM (mm): 42 | Head length LH (mm): 50 | Overall length LF (mm): 250 | Teeth: 3 | Weight (kg): 2.54 | Stock: Yes
