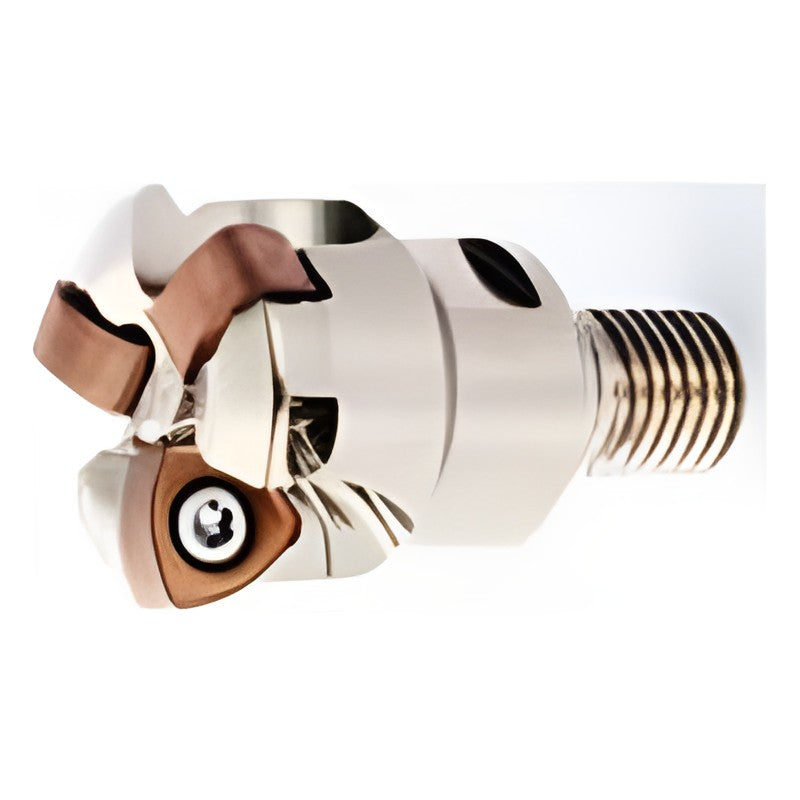

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000M Modular Head

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
DMSW08035M16Z2 Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
DMSW08040M16Z3 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.21 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill DMSW 08000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (2)

DMSW08035M16Z2, DMSW08040M16Z3

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMSW08035M16Z2Max cutting dia DCX (mm): 35 | Cutting dia DC (mm): 18.6 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
DMSW08040M16Z3Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 23.5 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.21 | Stock: Yes
