• Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000E Shank Type Milling Cutter
1 1

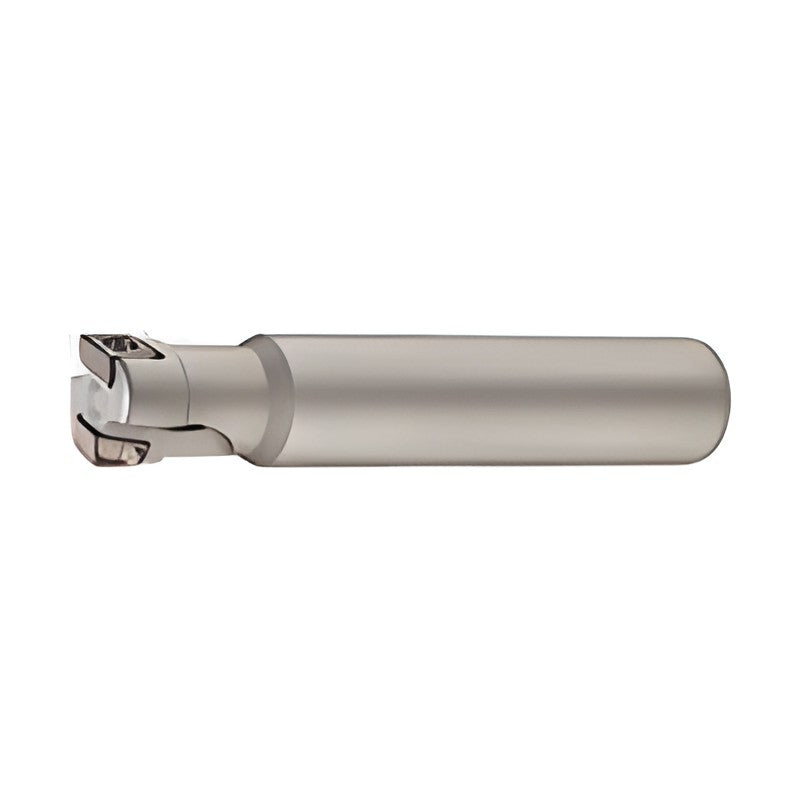

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000E Shank Type Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness.

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
TSX08016E DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
TSX08020E DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 2 | Weight (kg): 0.22 | Stock: Yes
TSX08020E-16 DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
TSX08025E DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.40 | Stock: Yes
TSX08025E-20 DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.26 | Stock: Yes
TSX08032E DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.67 | Stock: Yes
TSX08032E-25 DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.43 | Stock: Yes
TSX08040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.72 | Stock: Yes
TSX08050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.85 | Stock: Yes
TSX08063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 6 | Weight (kg): 1.09 | Stock: Yes
TSX08080E DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.44 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (11)

TSX08016E, TSX08020E, TSX08020E-16, TSX08025E, TSX08025E-20, TSX08032E, TSX08032E-25, TSX08040E, TSX08050E, TSX08063E + 1 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSX08016EDC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
TSX08020EDC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 2 | Weight (kg): 0.22 | Stock: Yes
TSX08020E-16DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
TSX08025EDC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.40 | Stock: Yes
TSX08025E-20DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.26 | Stock: Yes
TSX08032EDC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.67 | Stock: Yes
TSX08032E-25DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.43 | Stock: Yes
TSX08040EDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.72 | Stock: Yes
TSX08050EDC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.85 | Stock: Yes
TSX08063EDC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 6 | Weight (kg): 1.09 | Stock: Yes
TSX08080EDC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.44 | Stock: Yes
