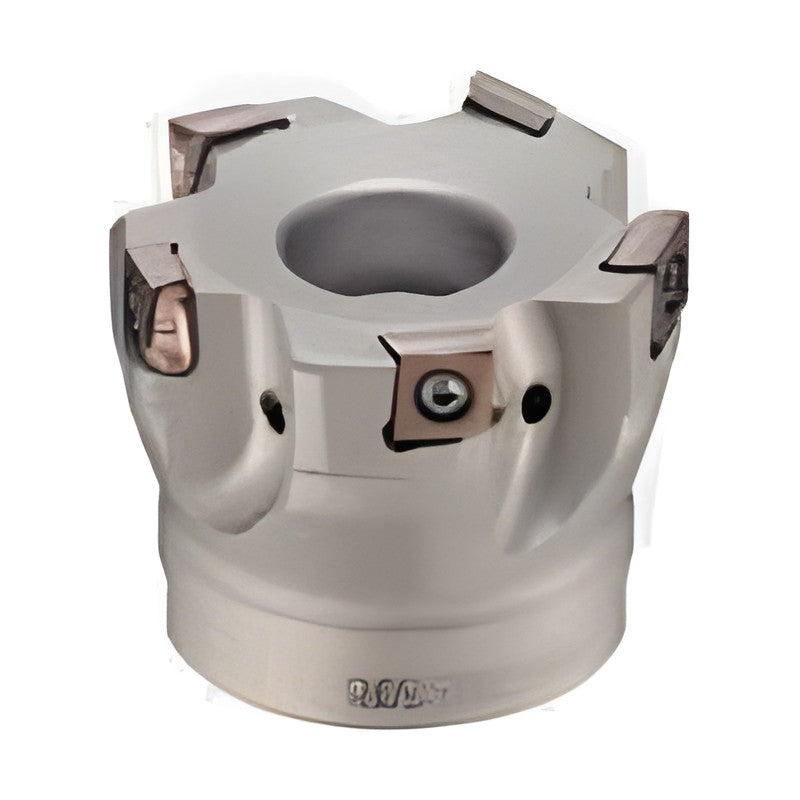

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000R/L(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000R/L(S) Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness.

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
TSX08040RS DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.21 | Hand: Right | Stock: Yes
TSX08050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.30 | Hand: Right | Stock: Yes
TSX08063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.53 | Hand: Right | Stock: Yes
TSX08080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.99 | Hand: Right | Stock: Yes
TSX08080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.00 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 08000R/L(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

TSX08040RS, TSX08050RS, TSX08063RS, TSX08080RS, TSX08080R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSX08040RSDC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.21 | Hand: Right | Stock: Yes
TSX08050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.30 | Hand: Right | Stock: Yes
TSX08063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.53 | Hand: Right | Stock: Yes
TSX08080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.99 | Hand: Right | Stock: Yes
TSX08080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.00 | Hand: Right | Stock: Yes
