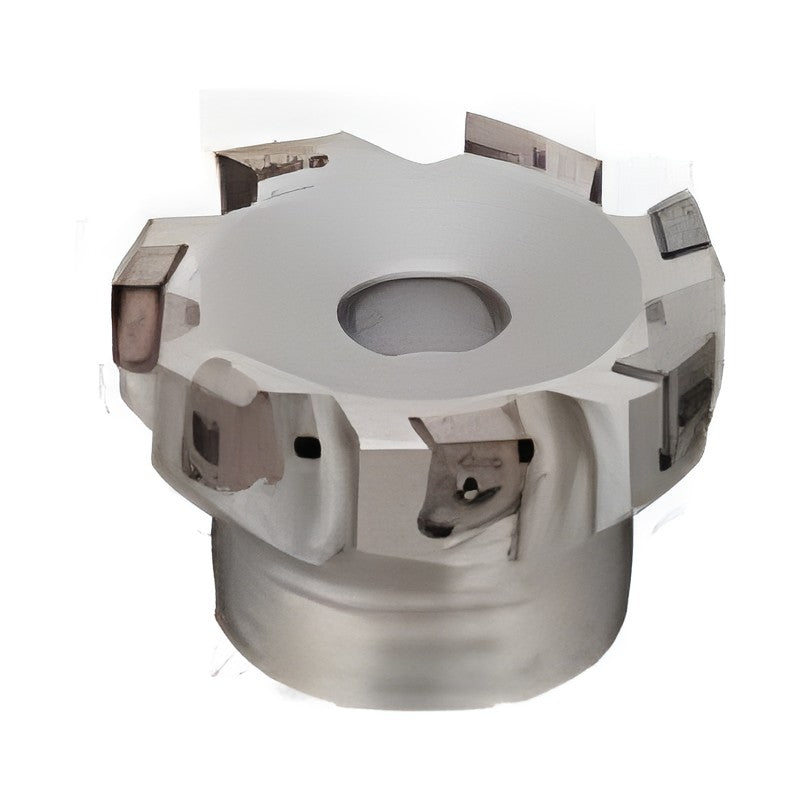

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 13000R/L(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 13000R/L(S) Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness.

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
TSX13040RS DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 3 | Weight (kg): 0.20 | Hand: Right | Stock: Yes
TSX13050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.30 | Hand: Right | Stock: Yes
TSX13063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.50 | Hand: Right | Stock: Yes
TSX13080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.92 | Hand: Right | Stock: Yes
TSX13100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.35 | Hand: Right | Stock: Yes
TSX13125RS DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 7 | Weight (kg): 2.55 | Hand: Right | Stock: Yes
TSX13160RS DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 90 | Teeth: 8 | Weight (kg): 4.97 | Hand: Right | Stock: Yes
TSX13200RS DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 12 | Weight (kg): 6.20 | Hand: Right | Stock: Yes
TSX13250RS DC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 14 | Weight (kg): 9.35 | Hand: Right | Stock: Yes
TSX13315RS DC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 16 | Weight (kg): 16.42 | Hand: Right | Stock: Yes
TSX13080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.93 | Hand: Right | Stock: Yes
TSX13100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 6 | Weight (kg): 1.88 | Hand: Right | Stock: Yes
TSX13125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10.0 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 7 | Weight (kg): 2.61 | Hand: Right | Stock: Yes
TSX13160R DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11.0 | CBDP mounting depth (mm): 38.0 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 4.18 | Hand: Right | Stock: Yes
TSX13200R DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 12 | Weight (kg): 6.36 | Hand: Right | Stock: Yes
TSX13250R DC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 14 | Weight (kg): 9.60 | Hand: Right | Stock: Yes
TSX13315R DC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 16 | Weight (kg): 16.68 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSX 13000R/L(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (17)

TSX13040RS, TSX13050RS, TSX13063RS, TSX13080RS, TSX13100RS, TSX13125RS, TSX13160RS, TSX13200RS, TSX13250RS, TSX13315RS + 7 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSX13040RSDC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 3 | Weight (kg): 0.20 | Hand: Right | Stock: Yes
TSX13050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.30 | Hand: Right | Stock: Yes
TSX13063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.50 | Hand: Right | Stock: Yes
TSX13080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.92 | Hand: Right | Stock: Yes
TSX13100RSDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | Teeth: 6 | Weight (kg): 1.35 | Hand: Right | Stock: Yes
TSX13125RSDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 7 | Weight (kg): 2.55 | Hand: Right | Stock: Yes
TSX13160RSDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 90 | Teeth: 8 | Weight (kg): 4.97 | Hand: Right | Stock: Yes
TSX13200RSDC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 12 | Weight (kg): 6.20 | Hand: Right | Stock: Yes
TSX13250RSDC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 14 | Weight (kg): 9.35 | Hand: Right | Stock: Yes
TSX13315RSDC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 16 | Weight (kg): 16.42 | Hand: Right | Stock: Yes
TSX13080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 5 | Weight (kg): 0.93 | Hand: Right | Stock: Yes
TSX13100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 6 | Weight (kg): 1.88 | Hand: Right | Stock: Yes
TSX13125RDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10.0 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 7 | Weight (kg): 2.61 | Hand: Right | Stock: Yes
TSX13160RDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11.0 | CBDP mounting depth (mm): 38.0 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 4.18 | Hand: Right | Stock: Yes
TSX13200RDC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 12 | Weight (kg): 6.36 | Hand: Right | Stock: Yes
TSX13250RDC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 14 | Weight (kg): 9.60 | Hand: Right | Stock: Yes
TSX13315RDC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 16 | Weight (kg): 16.68 | Hand: Right | Stock: Yes
