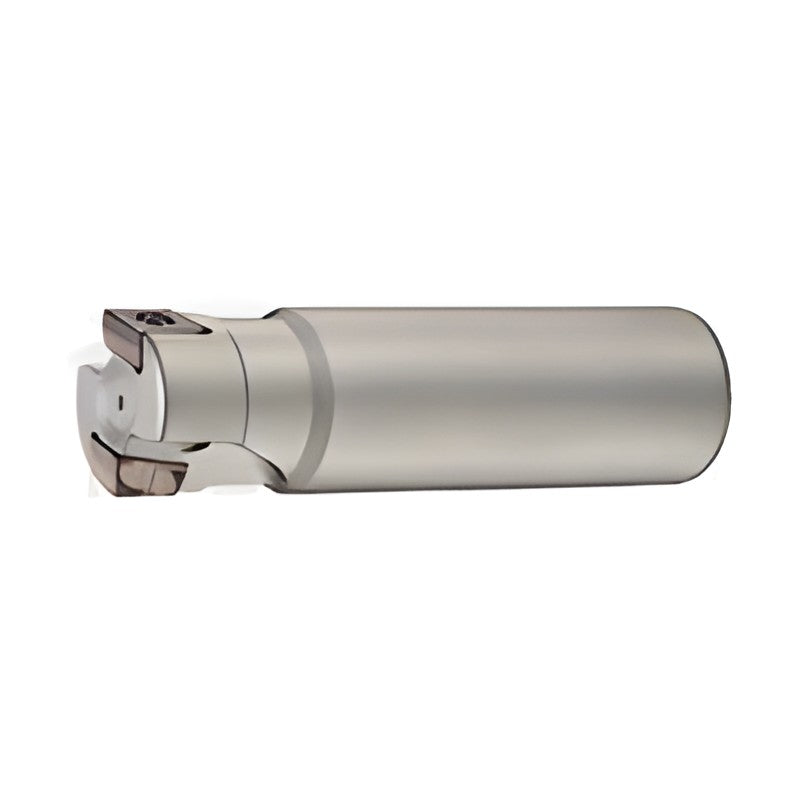

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000E Shank Type Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness (extra-fine pitch version).

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Extra-fine pitch
TSXF13040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.70 | Stock: Yes
TSXF13050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 6 | Weight (kg): 0.80 | Stock: Yes
TSXF13063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.07 | Stock: Yes
TSXF13080E DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 8 | Weight (kg): 1.42 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

TSXF13040E, TSXF13050E, TSXF13063E, TSXF13080E

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSXF13040EDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.70 | Stock: Yes
TSXF13050EDC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 6 | Weight (kg): 0.80 | Stock: Yes
TSXF13063EDC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.07 | Stock: Yes
TSXF13080EDC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 8 | Weight (kg): 1.42 | Stock: Yes
