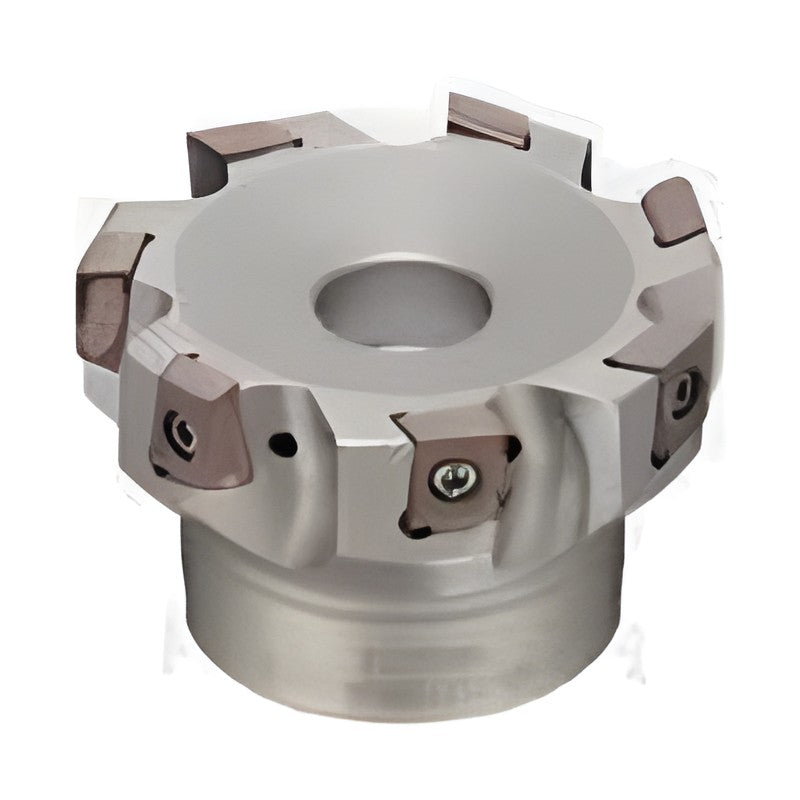

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000R/L(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000R/L(S) Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness (extra-fine pitch version).

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Extra-fine pitch
TSXF13040RS DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.18 | Hand: Right | Stock: Yes
TSXF13050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.29 | Hand: Right | Stock: Yes
TSXF13063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.50 | Hand: Right | Stock: Yes
TSXF13080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.92 | Hand: Right | Stock: Yes
TSXF13100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.34 | Hand: Right | Stock: Yes
TSXF13125RS DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 14 | Weight (kg): 2.58 | Hand: Right | Stock: Yes
TSXF13160RS DC (mm): 160 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 90 | Teeth: 16 | Weight (kg): 5.08 | Hand: Right | Stock: Yes
TSXF13080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.93 | Hand: Right | Stock: Yes
TSXF13100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 10 | Weight (kg): 1.88 | Hand: Right | Stock: Yes
TSXF13125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10.0 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 14 | Weight (kg): 2.60 | Hand: Right | Stock: Yes
TSXF13160R DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11.0 | CBDP mounting depth (mm): 38.0 | D1 (mm): 72 | Teeth: 16 | Weight (kg): 4.28 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXF 13000R/L(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (11)

TSXF13040RS, TSXF13050RS, TSXF13063RS, TSXF13080RS, TSXF13100RS, TSXF13125RS, TSXF13160RS, TSXF13080R, TSXF13100R, TSXF13125R + 1 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSXF13040RSDC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 5 | Weight (kg): 0.18 | Hand: Right | Stock: Yes
TSXF13050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.29 | Hand: Right | Stock: Yes
TSXF13063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.50 | Hand: Right | Stock: Yes
TSXF13080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.92 | Hand: Right | Stock: Yes
TSXF13100RSDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | Teeth: 10 | Weight (kg): 1.34 | Hand: Right | Stock: Yes
TSXF13125RSDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 14 | Weight (kg): 2.58 | Hand: Right | Stock: Yes
TSXF13160RSDC (mm): 160 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 90 | Teeth: 16 | Weight (kg): 5.08 | Hand: Right | Stock: Yes
TSXF13080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.93 | Hand: Right | Stock: Yes
TSXF13100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 10 | Weight (kg): 1.88 | Hand: Right | Stock: Yes
TSXF13125RDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10.0 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 14 | Weight (kg): 2.60 | Hand: Right | Stock: Yes
TSXF13160RDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11.0 | CBDP mounting depth (mm): 38.0 | D1 (mm): 72 | Teeth: 16 | Weight (kg): 4.28 | Hand: Right | Stock: Yes
