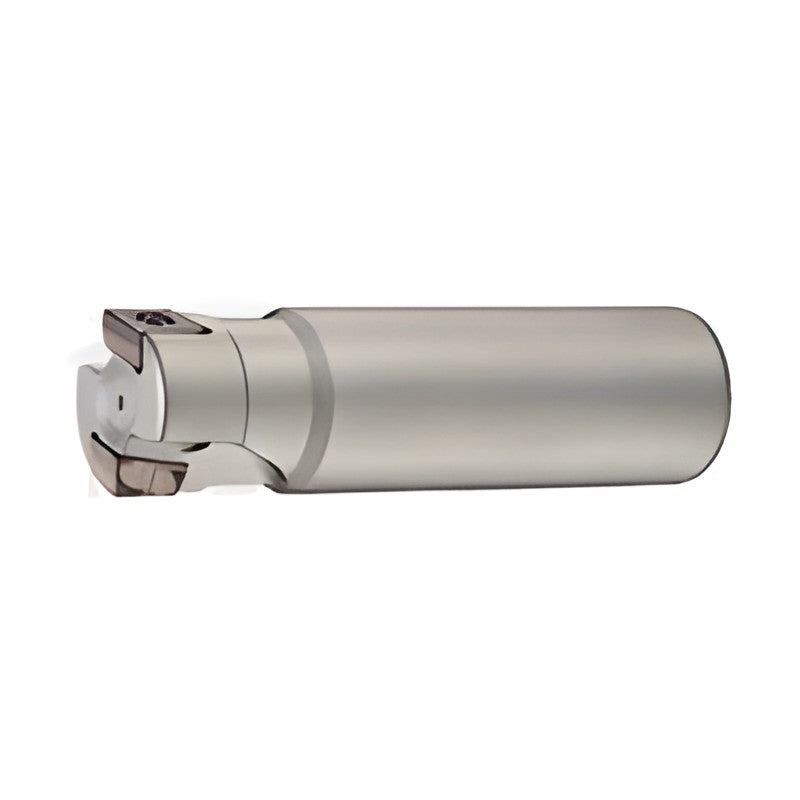

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXM 13000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXM 13000E Shank Type Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness (fine pitch version).

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Fine pitch
TSXM13032E DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.65 | Stock: Yes
TSXM13040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.71 | Stock: Yes
TSXM13050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.80 | Stock: Yes
TSXM13063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 6 | Weight (kg): 1.07 | Stock: Yes
TSXM13080E DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.41 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXM 13000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

TSXM13032E, TSXM13040E, TSXM13050E, TSXM13063E, TSXM13080E

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSXM13032EDC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 3 | Weight (kg): 0.65 | Stock: Yes
TSXM13040EDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.71 | Stock: Yes
TSXM13050EDC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 120 | Teeth: 5 | Weight (kg): 0.80 | Stock: Yes
TSXM13063EDC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 6 | Weight (kg): 1.07 | Stock: Yes
TSXM13080EDC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 35 | LF length (mm): 125 | Teeth: 7 | Weight (kg): 1.41 | Stock: Yes
