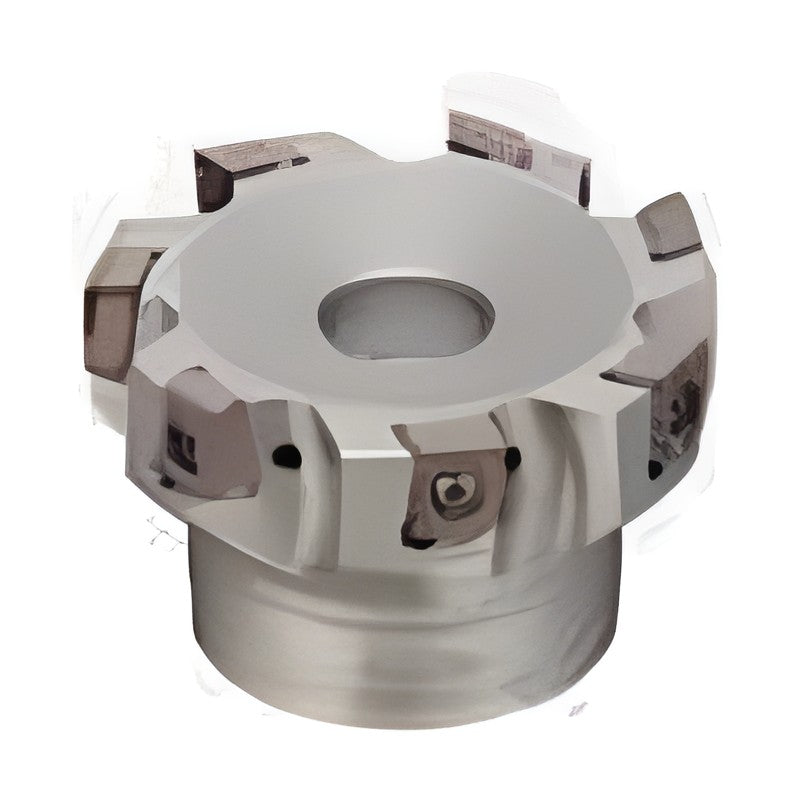

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXM 13000R/L(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXM 13000R/L(S) Milling Cutter

Indexable milling cutter using ground-class tangential LNEX 0804/1306 inserts for precise, high-quality surfaces with high edge strength and sharpness (fine pitch version).

Key features

  • Ground-class inserts for precise surface quality
  • Tangential insert mounting for high edge strength
  • 2 insert sizes and 3 breaker types
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Fine pitch
TSXM13040RS DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.19 | Hand: Right | Stock: Yes
TSXM13050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.28 | Hand: Right | Stock: Yes
TSXM13063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.50 | Hand: Right | Stock: Yes
TSXM13080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.92 | Hand: Right | Stock: Yes
TSXM13100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | Teeth: 8 | Weight (kg): 1.36 | Hand: Right | Stock: Yes
TSXM13125RS DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 10 | Weight (kg): 2.57 | Hand: Right | Stock: Yes
TSXM13160RS DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | D1 (mm): 90 | Teeth: 12 | Weight (kg): 5.02 | Hand: Right | Stock: Yes
TSXM13200RS DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 16 | Weight (kg): 6.32 | Hand: Right | Stock: Yes
TSXM13250RS DC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 20 | Weight (kg): 9.42 | Hand: Right | Stock: Yes
TSXM13315RS DC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 60 | KWW keyway width (mm): 25.7 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 24 | Weight (kg): 16.37 | Hand: Right | Stock: Yes
TSXM13080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6.0 | CBDP mounting depth (mm): 25.0 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 0.93 | Hand: Right | Stock: Yes
TSXM13100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 32.0 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 8 | Weight (kg): 1.90 | Hand: Right | Stock: Yes
TSXM13125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10.0 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 10 | Weight (kg): 2.62 | Hand: Right | Stock: Yes
TSXM13160R DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11.0 | CBDP mounting depth (mm): 38.0 | D1 (mm): 72 | Teeth: 12 | Weight (kg): 4.22 | Hand: Right | Stock: Yes
TSXM13200R DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 135 | Teeth: 16 | Weight (kg): 6.48 | Hand: Right | Stock: Yes
TSXM13250R DC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 160 | Teeth: 20 | Weight (kg): 9.68 | Hand: Right | Stock: Yes
TSXM13315R DC (mm): 315 | DCSFMS boss dia (mm): 240 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14.0 | CBDP mounting depth (mm): 35.0 | D1 (mm): 230 | Teeth: 24 | Weight (kg): 16.63 | Hand: Right | Stock: Yes
