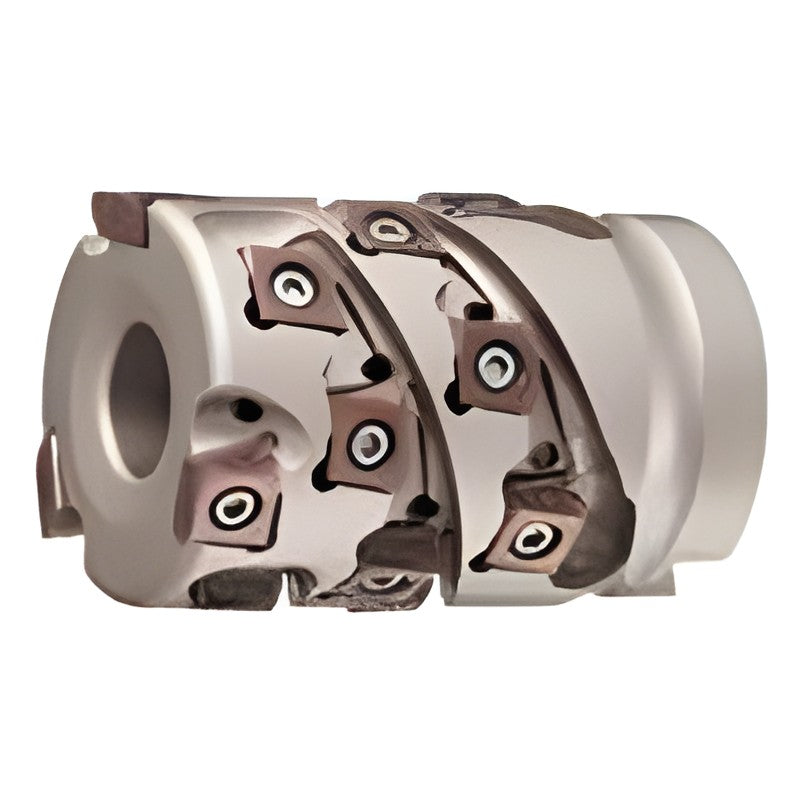

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 08000RS Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 08000RS Milling Cutter

Long-edge (repeater) milling cutter with multi-stage LNEX inserts of the TSX type for high-efficiency deep shoulder milling.

Key features

  • Multi-stage LNEX insert arrangement
  • Ground-class inserts

Specifications

Insert Not included (sold separately)
TSXR08032RS3416Z02 DC (mm): 32 | APMX max depth of cut (mm): 34 | DCSFMS boss dia (mm): 33 | LF length (mm): 55 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | Total inserts: 10 | Tiers: 5 | Effective teeth: 2 | Weight (kg): 0.17 | Stock: Yes
TSXR08040RS4016Z03 DC (mm): 40 | APMX max depth of cut (mm): 40 | DCSFMS boss dia (mm): 37 | LF length (mm): 60 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | Total inserts: 18 | Tiers: 6 | Effective teeth: 3 | Weight (kg): 0.32 | Stock: Yes
TSXR08050RS5422Z03 DC (mm): 50 | APMX max depth of cut (mm): 54 | DCSFMS boss dia (mm): 47 | LF length (mm): 75 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | Total inserts: 24 | Tiers: 8 | Effective teeth: 3 | Weight (kg): 0.70 | Stock: Yes
TSXR08050RS5422Z04 DC (mm): 50 | APMX max depth of cut (mm): 54 | DCSFMS boss dia (mm): 47 | LF length (mm): 75 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | Total inserts: 32 | Tiers: 8 | Effective teeth: 4 | Weight (kg): 0.68 | Stock: Yes
TSXR08063RS6027Z05 DC (mm): 63 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 60 | LF length (mm): 80 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | Total inserts: 45 | Tiers: 9 | Effective teeth: 5 | Weight (kg): 1.25 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 08000RS Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

TSXR08032RS3416Z02, TSXR08040RS4016Z03, TSXR08050RS5422Z03, TSXR08050RS5422Z04, TSXR08063RS6027Z05

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSXR08032RS3416Z02DC (mm): 32 | APMX max depth of cut (mm): 34 | DCSFMS boss dia (mm): 33 | LF length (mm): 55 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | Total inserts: 10 | Tiers: 5 | Effective teeth: 2 | Weight (kg): 0.17 | Stock: Yes
TSXR08040RS4016Z03DC (mm): 40 | APMX max depth of cut (mm): 40 | DCSFMS boss dia (mm): 37 | LF length (mm): 60 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | Total inserts: 18 | Tiers: 6 | Effective teeth: 3 | Weight (kg): 0.32 | Stock: Yes
TSXR08050RS5422Z03DC (mm): 50 | APMX max depth of cut (mm): 54 | DCSFMS boss dia (mm): 47 | LF length (mm): 75 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | Total inserts: 24 | Tiers: 8 | Effective teeth: 3 | Weight (kg): 0.70 | Stock: Yes
TSXR08050RS5422Z04DC (mm): 50 | APMX max depth of cut (mm): 54 | DCSFMS boss dia (mm): 47 | LF length (mm): 75 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | Total inserts: 32 | Tiers: 8 | Effective teeth: 4 | Weight (kg): 0.68 | Stock: Yes
TSXR08063RS6027Z05DC (mm): 63 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 60 | LF length (mm): 80 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | Total inserts: 45 | Tiers: 9 | Effective teeth: 5 | Weight (kg): 1.25 | Stock: Yes
