Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000E Long-Edge Shank Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000E Long-Edge Shank Cutter

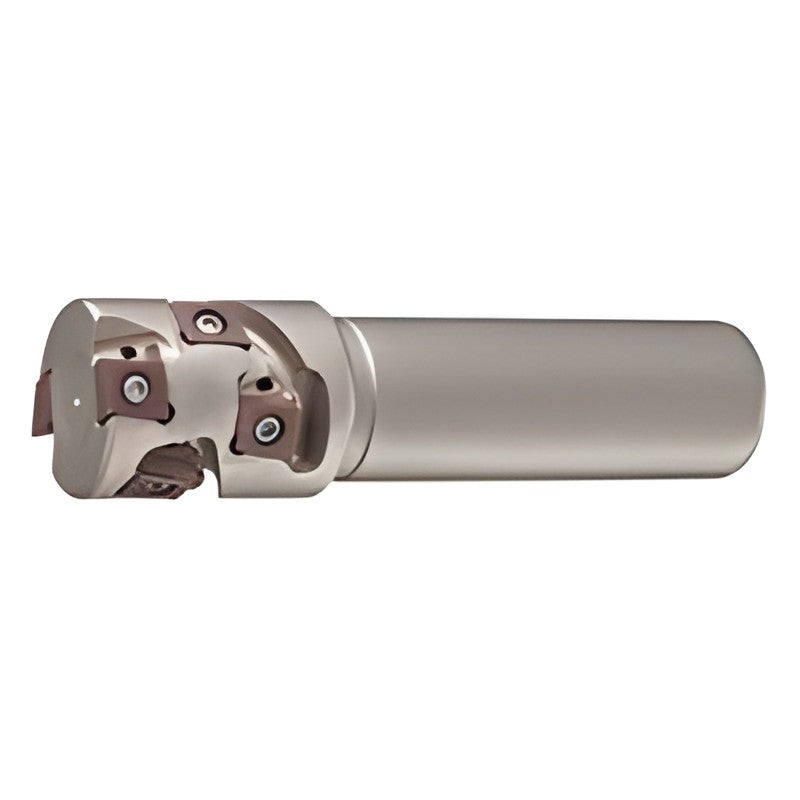

Multi-step long-edge shank type cutter of the SEC-Sumi Dual Mill TSX series for shoulder and side milling with double-sided LNEX inserts.

TSXR13040E4132Z02 Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 41 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 150 | Total teeth: 8 | Steps: 4 | Effective teeth: 2 | Weight (kg): 0.91 | Stock: Yes
TSXR13050E6042Z03 Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 60 | Shank dia DMM (mm): 42 | Head length LH (mm): 80 | Overall length LF (mm): 170 | Total teeth: 18 | Steps: 6 | Effective teeth: 3 | Weight (kg): 1.74 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000E Long-Edge Shank Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (2)

TSXR13040E4132Z02, TSXR13050E6042Z03

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSXR13040E4132Z02Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 41 | Shank dia DMM (mm): 32 | Head length LH (mm): 60 | Overall length LF (mm): 150 | Total teeth: 8 | Steps: 4 | Effective teeth: 2 | Weight (kg): 0.91 | Stock: Yes
TSXR13050E6042Z03Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 60 | Shank dia DMM (mm): 42 | Head length LH (mm): 80 | Overall length LF (mm): 170 | Total teeth: 18 | Steps: 6 | Effective teeth: 3 | Weight (kg): 1.74 | Stock: Yes
