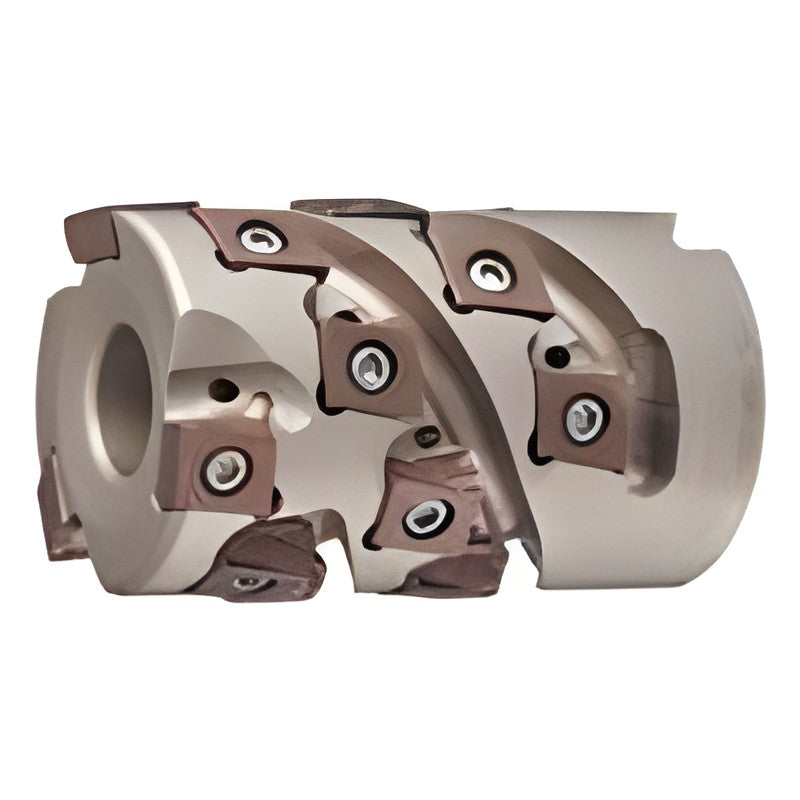

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000RS Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000RS Milling Cutter

Long-edge (repeater) milling cutter with multi-stage LNEX inserts of the TSX type for high-efficiency deep shoulder milling.

Key features

  • Multi-stage LNEX insert arrangement
  • Ground-class inserts

Specifications

Insert Not included (sold separately)
TSXR13040RS4116Z02 DC (mm): 40 | APMX max depth of cut (mm): 41 | DCSFMS boss dia (mm): 37 | LF length (mm): 60 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18.0 | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.31 | Stock: Yes
TSXR13050RS6022Z03 DC (mm): 50 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 47 | LF length (mm): 80 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20.0 | Total inserts: 18 | Tiers: 6 | Effective teeth: 3 | Weight (kg): 0.66 | Stock: Yes
TSXR13063RS5027Z03 DC (mm): 63 | APMX max depth of cut (mm): 50 | DCSFMS boss dia (mm): 60 | LF length (mm): 75 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | Total inserts: 15 | Tiers: 5 | Effective teeth: 3 | Weight (kg): 1.12 | Stock: Yes
TSXR13063RS6027Z04 DC (mm): 63 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 60 | LF length (mm): 80 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7.0 | CBDP mounting depth (mm): 22.0 | Total inserts: 24 | Tiers: 6 | Effective teeth: 4 | Weight (kg): 1.15 | Stock: Yes
TSXR13080RS6032Z04 DC (mm): 80 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 77 | LF length (mm): 80 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 26.0 | Total inserts: 24 | Tiers: 6 | Effective teeth: 4 | Weight (kg): 2.06 | Stock: Yes
TSXR13080RS6032Z05 DC (mm): 80 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 77 | LF length (mm): 80 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8.0 | CBDP mounting depth (mm): 26.0 | Total inserts: 30 | Tiers: 6 | Effective teeth: 5 | Weight (kg): 2.04 | Stock: Yes
TSXR13100RS6040Z05 DC (mm): 100 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 88 | LF length (mm): 85 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | Total inserts: 30 | Tiers: 6 | Effective teeth: 5 | Weight (kg): 3.45 | Stock: Yes
TSXR13100RS6040Z06 DC (mm): 100 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 88 | LF length (mm): 85 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | Total inserts: 36 | Tiers: 6 | Effective teeth: 6 | Weight (kg): 3.44 | Stock: Yes
TSXR13125RS6040Z07 DC (mm): 125 | APMX max depth of cut (mm): 60 | DCSFMS boss dia (mm): 100 | LF length (mm): 85 | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9.0 | CBDP mounting depth (mm): 29.0 | Total inserts: 42 | Tiers: 6 | Effective teeth: 7 | Weight (kg): 5.63 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Dual Mill TSXR 13000RS Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (9)

TSXR13040RS4116Z02, TSXR13050RS6022Z03, TSXR13063RS5027Z03, TSXR13063RS6027Z04, TSXR13080RS6032Z04, TSXR13080RS6032Z05, TSXR13100RS6040Z05, TSXR13100RS6040Z06, TSXR13125RS6040Z07

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
