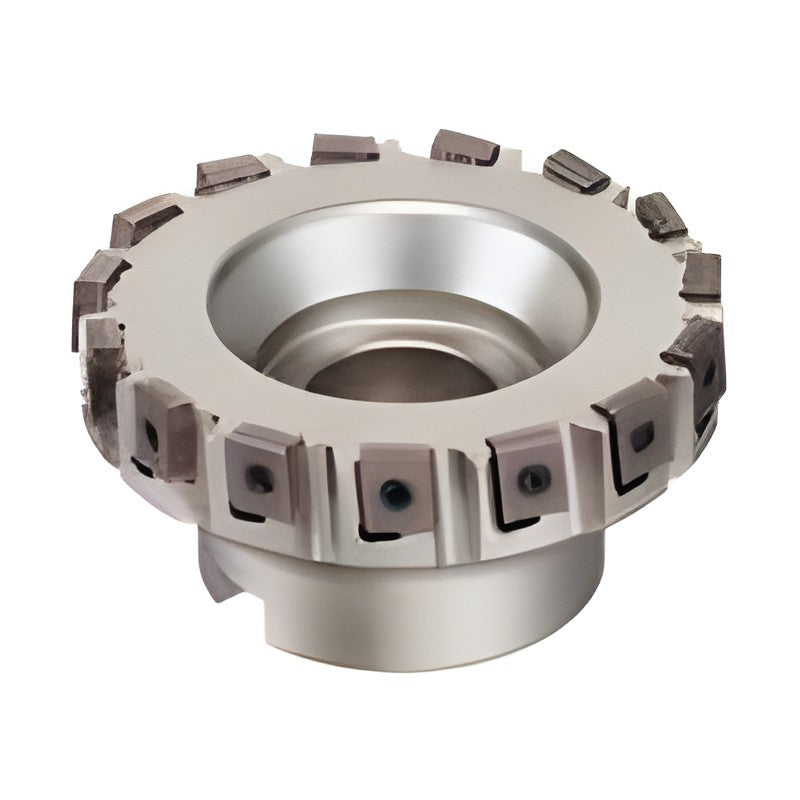

• Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWC(F) 4000 Shoulder Milling Cutter for Cast Iron
1 1

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWC(F) 4000 Shoulder Milling Cutter for Cast Iron

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWC(F) 4000 Shoulder Milling Cutter for Cast Iron

Shoulder milling cutter of the SEC-Sumi Power Mill series for cast iron, in standard (PWC) and extra-fine (PWCF) pitch.

PWC4080R Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 7 | Weight (kg): 0.9 | Stock: Yes
PWC4100R Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 8 | Weight (kg): 1.3 | Stock: Yes
PWC4125R Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 10 | Weight (kg): 2.5 | Stock: Yes
PWC4160R Cutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 12 | Weight (kg): 4.2 | Stock: Yes
PWC4200R Cutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 16 | Weight (kg): 7.2 | Stock: Yes
PWCF4080R Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 9 | Weight (kg): 0.9 | Stock: Yes
PWCF4100R Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 12 | Weight (kg): 1.4 | Stock: Yes
PWCF4125R Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 15 | Weight (kg): 2.6 | Stock: Yes
PWCF4160R Cutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 18 | Weight (kg): 4.3 | Stock: Yes
PWCF4200R Cutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 24 | Weight (kg): 7.4 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWC(F) 4000 Shoulder Milling Cutter for Cast Iron

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

PWC4080R, PWC4100R, PWC4125R, PWC4160R, PWC4200R, PWCF4080R, PWCF4100R, PWCF4125R, PWCF4160R, PWCF4200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PWC4080RCutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 7 | Weight (kg): 0.9 | Stock: Yes
PWC4100RCutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 8 | Weight (kg): 1.3 | Stock: Yes
PWC4125RCutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 10 | Weight (kg): 2.5 | Stock: Yes
PWC4160RCutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 12 | Weight (kg): 4.2 | Stock: Yes
PWC4200RCutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 16 | Weight (kg): 7.2 | Stock: Yes
PWCF4080RCutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 9 | Weight (kg): 0.9 | Stock: Yes
PWCF4100RCutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 12 | Weight (kg): 1.4 | Stock: Yes
PWCF4125RCutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 15 | Weight (kg): 2.6 | Stock: Yes
PWCF4160RCutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 18 | Weight (kg): 4.3 | Stock: Yes
PWCF4200RCutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 150 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 24 | Weight (kg): 7.4 | Stock: Yes
