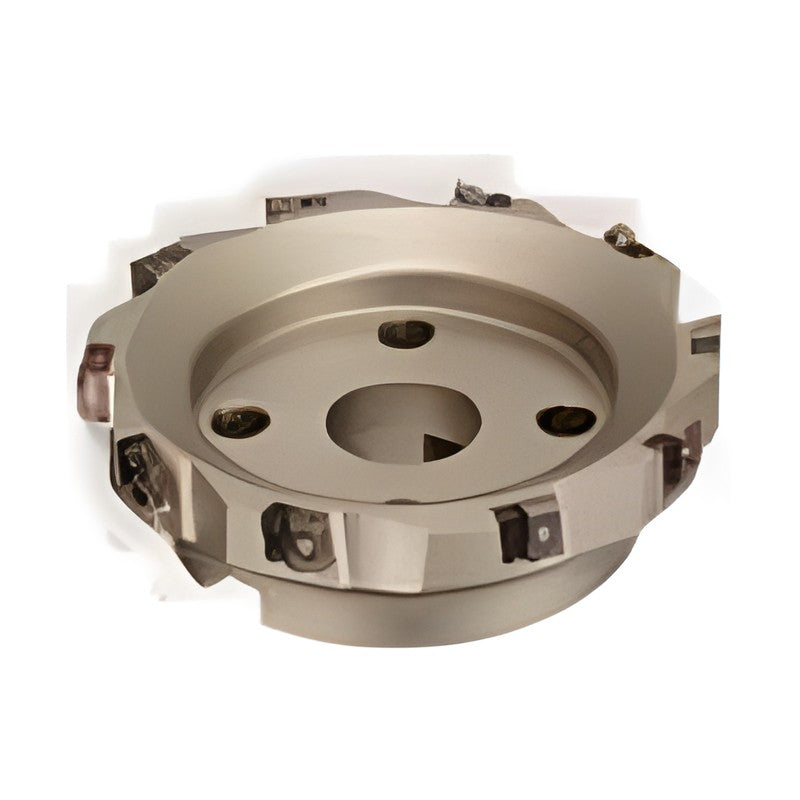

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWS(F) 4000 Shoulder Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWS(F) 4000 Shoulder Milling Cutter

High-reliability shoulder milling cutter carrying tangentially mounted inserts with high edge strength and sharp cutting performance.

Key features

  • Tangential inserts with high edge strength
  • Nicked insert option for low vibration at long overhang
PWS4080R Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.0 | Stock: Yes
PWS4100R Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Teeth: 6 | Weight (kg): 1.8 | Stock: Yes
PWS4125R Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Teeth: 6 | Weight (kg): 2.4 | Stock: Yes
PWS4160R Cutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 8 | Weight (kg): 4.0 | Stock: Yes
PWS4200R Cutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 10 | Weight (kg): 6.6 | Stock: Yes
PWS4250R Cutting dia DC (mm): 250 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 160 | Teeth: 12 | Weight (kg): 12.4 | Stock: Yes
PWSF4080R Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Teeth: 6 | Weight (kg): 0.9 | Stock: Yes
PWSF4100R Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Teeth: 8 | Weight (kg): 1.7 | Stock: Yes
PWSF4125R Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Teeth: 8 | Weight (kg): 2.3 | Stock: Yes
PWSF4160R Cutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 10 | Weight (kg): 3.9 | Stock: Yes
PWSF4200R Cutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 12 | Weight (kg): 6.6 | Stock: Yes
PWSF4250R Cutting dia DC (mm): 250 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 160 | Teeth: 14 | Weight (kg): 12.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWS(F) 4000 Shoulder Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

PWS4080R, PWS4100R, PWS4125R, PWS4160R, PWS4200R, PWS4250R, PWSF4080R, PWSF4100R, PWSF4125R, PWSF4160R + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PWS4080RCutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Teeth: 4 | Weight (kg): 1.0 | Stock: Yes
PWS4100RCutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Teeth: 6 | Weight (kg): 1.8 | Stock: Yes
PWS4125RCutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Teeth: 6 | Weight (kg): 2.4 | Stock: Yes
PWS4160RCutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 8 | Weight (kg): 4.0 | Stock: Yes
PWS4200RCutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 10 | Weight (kg): 6.6 | Stock: Yes
PWS4250RCutting dia DC (mm): 250 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 160 | Teeth: 12 | Weight (kg): 12.4 | Stock: Yes
PWSF4080RCutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 20 | Teeth: 6 | Weight (kg): 0.9 | Stock: Yes
PWSF4100RCutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 28 | Teeth: 8 | Weight (kg): 1.7 | Stock: Yes
PWSF4125RCutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 55 | Teeth: 8 | Weight (kg): 2.3 | Stock: Yes
PWSF4160RCutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 63 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 41.5 | Bolt dia D1 (mm): 72 | Teeth: 10 | Weight (kg): 3.9 | Stock: Yes
PWSF4200RCutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 130 | Teeth: 12 | Weight (kg): 6.6 | Stock: Yes
PWSF4250RCutting dia DC (mm): 250 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 63 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 160 | Teeth: 14 | Weight (kg): 12.5 | Stock: Yes
