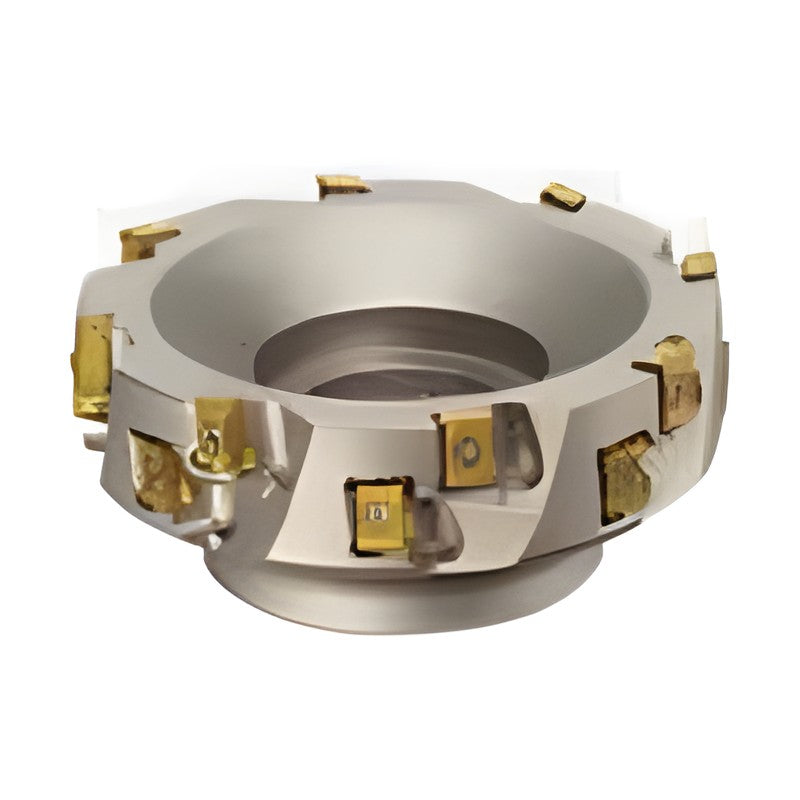

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWSR 4000 Two-Step Shoulder Milling Cutter

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWSR 4000 Two-Step Shoulder Milling Cutter

Two-step insert arrangement version of the SEC-Sumi Power Mill for large depths of cut.

PWSR4080R Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 70 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 8 | Steps: 2 | Effective teeth: 4 | Weight (kg): 1.4
PWSR4100R Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 70 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 12 | Steps: 2 | Effective teeth: 6 | Weight (kg): 2.0
PWSR4125R Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 70 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 12 | Steps: 2 | Effective teeth: 6 | Weight (kg): 3.0
PWSR4160R Cutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 70 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 16 | Steps: 2 | Effective teeth: 8 | Weight (kg): 5.2
PWSR4200R Cutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 160 | Teeth: 20 | Steps: 2 | Effective teeth: 10 | Weight (kg): 8.0
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Sumi Power Mill PWSR 4000 Two-Step Shoulder Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

PWSR4080R, PWSR4100R, PWSR4125R, PWSR4160R, PWSR4200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PWSR4080RCutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 60 | Height LF (mm): 70 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 29.5 | Teeth: 8 | Steps: 2 | Effective teeth: 4 | Weight (kg): 1.4
PWSR4100RCutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 70 | Height LF (mm): 70 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 46 | Teeth: 12 | Steps: 2 | Effective teeth: 6 | Weight (kg): 2.0
PWSR4125RCutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 80 | Height LF (mm): 70 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 56 | Teeth: 12 | Steps: 2 | Effective teeth: 6 | Weight (kg): 3.0
PWSR4160RCutting dia DC (mm): 160 | Boss dia DCSFMS (mm): 100 | Height LF (mm): 70 | Bore dia DCB (mm): 50.8 | Keyway width KWW (mm): 19.1 | Keyway depth KDP (mm): 11 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 72 | Teeth: 16 | Steps: 2 | Effective teeth: 8 | Weight (kg): 5.2
PWSR4200RCutting dia DC (mm): 200 | Boss dia DCSFMS (mm): 130 | Height LF (mm): 70 | Bore dia DCB (mm): 47.625 | Keyway width KWW (mm): 25.4 | Keyway depth KDP (mm): 14 | Counterbore depth CBDP (mm): 38 | Bolt dia D1 (mm): 160 | Teeth: 20 | Steps: 2 | Effective teeth: 10 | Weight (kg): 8.0
