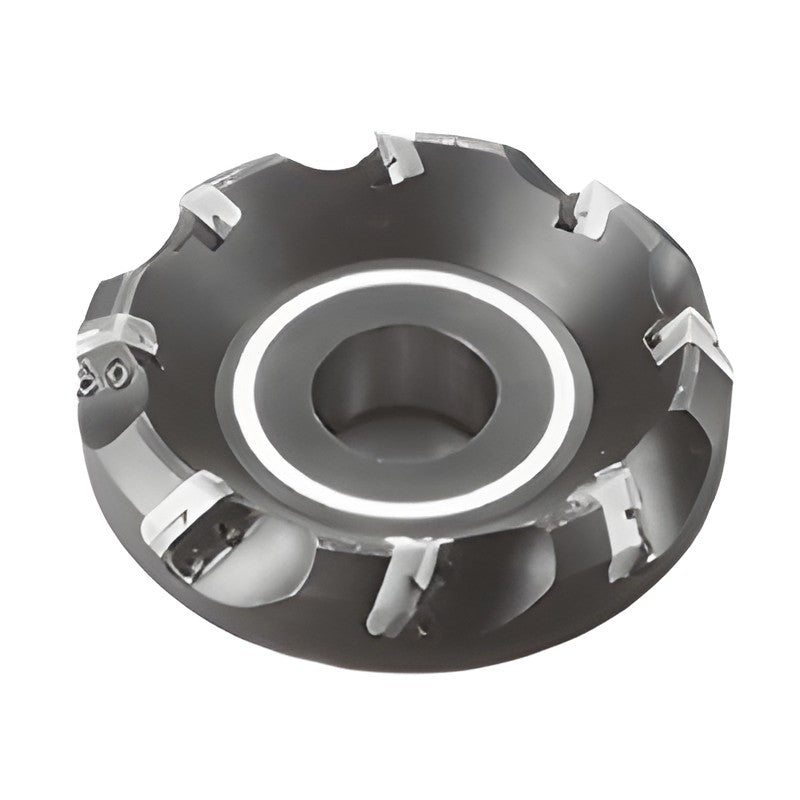

Sumitomo Electric Hardmetal SEC-SUMI UFO Mill UFO 4000 Milling Cutter

Indexable face milling cutter for SFEN/SFKN 12T3 or 1504 inserts with adjustable cartridge-type clamping, for face milling of steel, stainless steel, cast iron and non-ferrous metals.

Key features

Insert clamp and locator design for accurate face milling
Wiper inserts (UW) available
T-wrench TT25 supplied as standard accessory

Specifications

Insert	Not included (sold separately)

UFO4080R		DC (mm): 80 \| BD body dia (mm): 102 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| Teeth: 4 \| Weight (kg): 2.1 \| Hand: Right \| Stock: Yes
UFO4100R		DC (mm): 100 \| BD body dia (mm): 122 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| Teeth: 5 \| Weight (kg): 2.9 \| Hand: Right \| Stock: Yes
UFO4125R		DC (mm): 125 \| BD body dia (mm): 146 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| Teeth: 6 \| Weight (kg): 4.2 \| Hand: Right \| Stock: Yes
UFO4160R		DC (mm): 160 \| BD body dia (mm): 180 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| Teeth: 8 \| Weight (kg): 6.6 \| Hand: Right \| Stock: Yes
UFO4200R		DC (mm): 200 \| BD body dia (mm): 220 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| Teeth: 10 \| Weight (kg): 9.5 \| Hand: Right \| Stock: Yes
UFO4250R		DC (mm): 250 \| BD body dia (mm): 270 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| Teeth: 12 \| Weight (kg): 14.8 \| Hand: Right \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-SUMI UFO Mill UFO 4000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

UFO4080R, UFO4100R, UFO4125R, UFO4160R, UFO4200R, UFO4250R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UFO4080R	DC (mm): 80 \| BD body dia (mm): 102 \| DCSFMS boss dia (mm): 60 \| LF length (mm): 50 \| DCB bore dia (mm): 25.4 \| KWW keyway width (mm): 9.5 \| KDP keyway depth (mm): 6 \| CBDP mounting depth (mm): 25 \| Teeth: 4 \| Weight (kg): 2.1 \| Hand: Right \| Stock: Yes
	UFO4100R	DC (mm): 100 \| BD body dia (mm): 122 \| DCSFMS boss dia (mm): 70 \| LF length (mm): 50 \| DCB bore dia (mm): 31.75 \| KWW keyway width (mm): 12.7 \| KDP keyway depth (mm): 8 \| CBDP mounting depth (mm): 32 \| Teeth: 5 \| Weight (kg): 2.9 \| Hand: Right \| Stock: Yes
	UFO4125R	DC (mm): 125 \| BD body dia (mm): 146 \| DCSFMS boss dia (mm): 75 \| LF length (mm): 63 \| DCB bore dia (mm): 38.1 \| KWW keyway width (mm): 15.9 \| KDP keyway depth (mm): 10 \| CBDP mounting depth (mm): 38 \| Teeth: 6 \| Weight (kg): 4.2 \| Hand: Right \| Stock: Yes
	UFO4160R	DC (mm): 160 \| BD body dia (mm): 180 \| DCSFMS boss dia (mm): 100 \| LF length (mm): 63 \| DCB bore dia (mm): 50.8 \| KWW keyway width (mm): 19.1 \| KDP keyway depth (mm): 11 \| CBDP mounting depth (mm): 38 \| Teeth: 8 \| Weight (kg): 6.6 \| Hand: Right \| Stock: Yes
	UFO4200R	DC (mm): 200 \| BD body dia (mm): 220 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| Teeth: 10 \| Weight (kg): 9.5 \| Hand: Right \| Stock: Yes
	UFO4250R	DC (mm): 250 \| BD body dia (mm): 270 \| DCSFMS boss dia (mm): 130 \| LF length (mm): 63 \| DCB bore dia (mm): 47.625 \| KWW keyway width (mm): 25.4 \| KDP keyway depth (mm): 14 \| CBDP mounting depth (mm): 35 \| Teeth: 12 \| Weight (kg): 14.8 \| Hand: Right \| Stock: Yes
