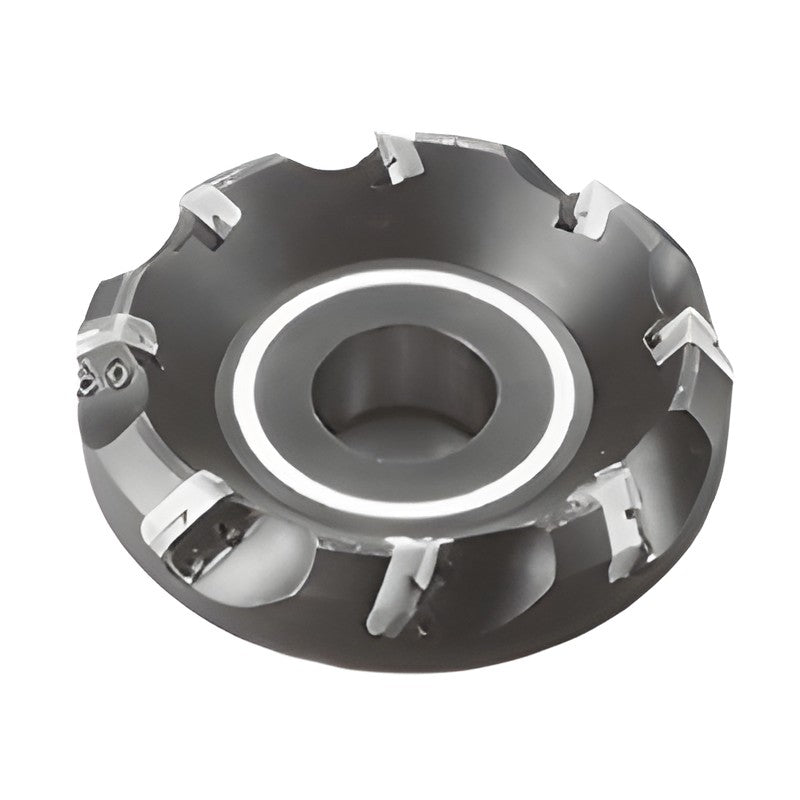

Sumitomo Electric Hardmetal SEC-SUMI UFO Mill UFO 5000 Milling Cutter

Sumitomo Electric Hardmetal SEC-SUMI UFO Mill UFO 5000 Milling Cutter

Indexable face milling cutter for SFEN/SFKN 12T3 or 1504 inserts with adjustable cartridge-type clamping, for face milling of steel, stainless steel, cast iron and non-ferrous metals.

Key features

  • Insert clamp and locator design for accurate face milling
  • Wiper inserts (UW) available
  • T-wrench TT25 supplied as standard accessory

Specifications

Insert Not included (sold separately)
UFO5100R DC (mm): 100 | BD body dia (mm): 119 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 2.8 | Hand: Right | Stock: Yes
UFO5125R DC (mm): 125 | BD body dia (mm): 143 | DCSFMS boss dia (mm): 75 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.0 | Hand: Right | Stock: Yes
UFO5160R DC (mm): 160 | BD body dia (mm): 177 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.4 | Hand: Right | Stock: Yes
UFO5200R DC (mm): 200 | BD body dia (mm): 217 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | Teeth: 10 | Weight (kg): 9.2 | Hand: Right | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-SUMI UFO Mill UFO 5000 Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

UFO5100R, UFO5125R, UFO5160R, UFO5200R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UFO5100RDC (mm): 100 | BD body dia (mm): 119 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | Teeth: 5 | Weight (kg): 2.8 | Hand: Right | Stock: Yes
UFO5125RDC (mm): 125 | BD body dia (mm): 143 | DCSFMS boss dia (mm): 75 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 38 | Teeth: 6 | Weight (kg): 4.0 | Hand: Right | Stock: Yes
UFO5160RDC (mm): 160 | BD body dia (mm): 177 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | Teeth: 8 | Weight (kg): 6.4 | Hand: Right | Stock: Yes
UFO5200RDC (mm): 200 | BD body dia (mm): 217 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | Teeth: 10 | Weight (kg): 9.2 | Hand: Right | Stock: Yes
