Sumitomo Electric Hardmetal SEC-T-Slot Cutter TSE

Sumitomo Electric Hardmetal SEC-T-Slot Cutter TSE

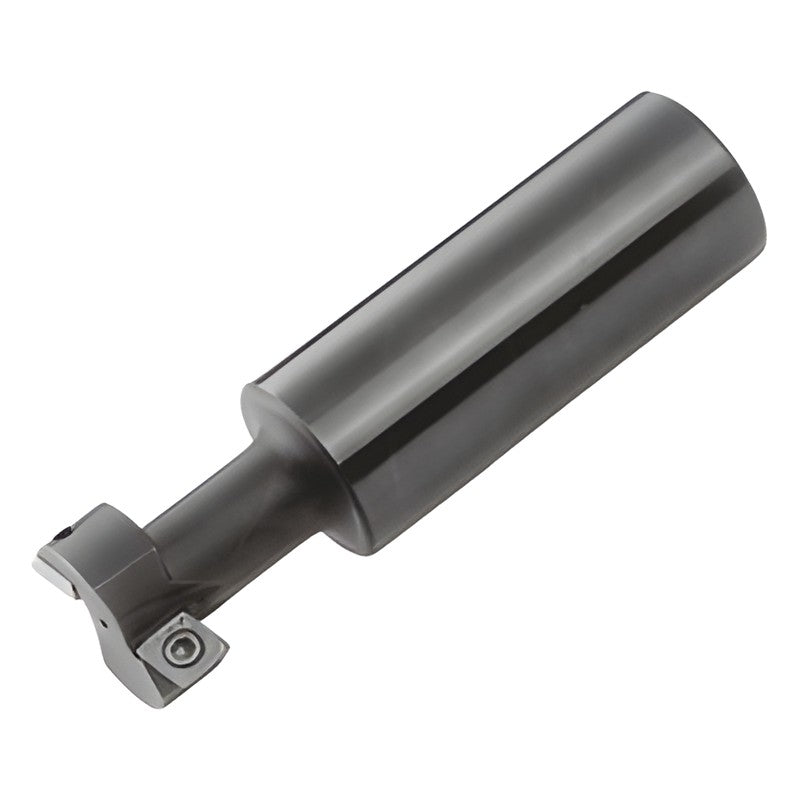

Indexable shank type T-slot cutter using CPMT/CPMH inserts.

TSE2125 Cutting dia DC (mm): 21 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 10.5 | Cutting width CW (mm): 9 | Length L2 (mm): 20 | Overall length LF (mm): 109 | Teeth: 2 | Stock: Yes
TSE2525 Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 12.5 | Cutting width CW (mm): 11 | Length L2 (mm): 21 | Overall length LF (mm): 112 | Teeth: 2 | Stock: Yes
TSE3232 Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 16.5 | Cutting width CW (mm): 14 | Length L2 (mm): 26 | Overall length LF (mm): 120 | Teeth: 2 | Stock: Yes
TSE4032 Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 20.5 | Cutting width CW (mm): 18 | Length L2 (mm): 32 | Overall length LF (mm): 130 | Teeth: 2 | Stock: Yes
TSE5032 Cutting dia DC (mm): 50 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 26.5 | Cutting width CW (mm): 22 | Length L2 (mm): 38 | Overall length LF (mm): 140 | Teeth: 4 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-T-Slot Cutter TSE

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

TSE2125, TSE2525, TSE3232, TSE4032, TSE5032

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSE2125Cutting dia DC (mm): 21 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 10.5 | Cutting width CW (mm): 9 | Length L2 (mm): 20 | Overall length LF (mm): 109 | Teeth: 2 | Stock: Yes
TSE2525Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Neck dia DN (mm): 12.5 | Cutting width CW (mm): 11 | Length L2 (mm): 21 | Overall length LF (mm): 112 | Teeth: 2 | Stock: Yes
TSE3232Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 16.5 | Cutting width CW (mm): 14 | Length L2 (mm): 26 | Overall length LF (mm): 120 | Teeth: 2 | Stock: Yes
TSE4032Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 20.5 | Cutting width CW (mm): 18 | Length L2 (mm): 32 | Overall length LF (mm): 130 | Teeth: 2 | Stock: Yes
TSE5032Cutting dia DC (mm): 50 | Shank dia DMM (mm): 32 | Neck dia DN (mm): 26.5 | Cutting width CW (mm): 22 | Length L2 (mm): 38 | Overall length LF (mm): 140 | Teeth: 4 | Stock: Yes
