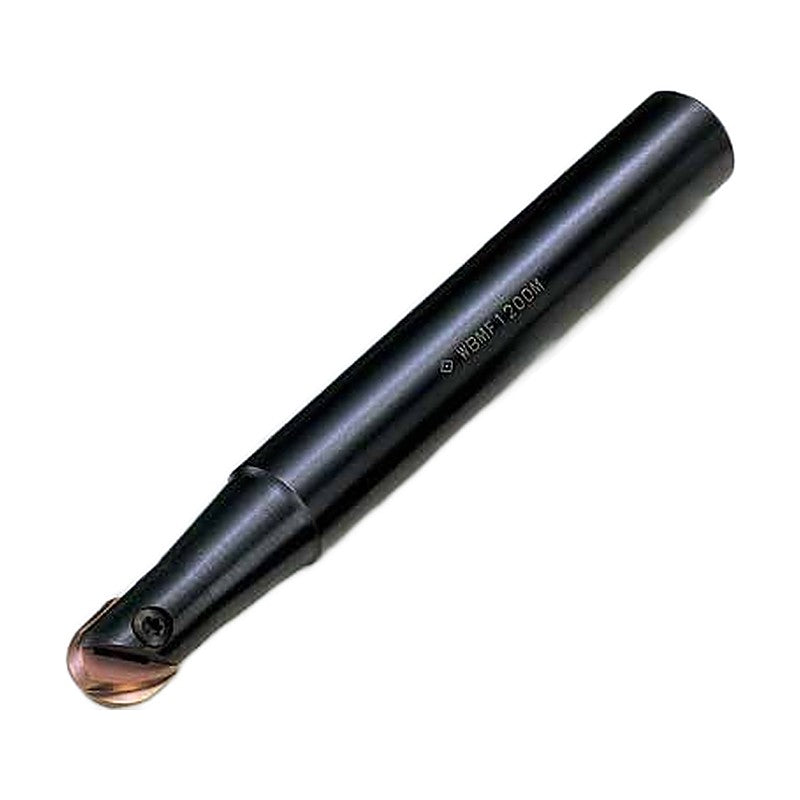

Sumitomo Electric Hardmetal SEC-Wave Ball WBMF 1000 Ball Cutter for Finishing

Sumitomo Electric Hardmetal SEC-Wave Ball WBMF 1000 Ball Cutter for Finishing

Indexable ball shank cutter for 3D copy finishing of dies and machine parts, available from 10 to 30 mm diameter.

Key features

  • High-precision clamping method
  • Large helix angle design
WBMF1100S Cutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Usable length LU (mm): 17 | Overall length LF (mm): 100 | Stock: Yes
WBMF1100M Cutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 35 | Usable length LU (mm): 17 | Overall length LF (mm): 130 | Stock: Yes
WBMF1100L Cutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 50 | Usable length LU (mm): 17 | Overall length LF (mm): 180 | Stock: Yes
WBMF1120S Cutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 40 | Usable length LU (mm): 19.5 | Overall length LF (mm): 110 | Stock: Yes
WBMF1120M Cutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 40 | Usable length LU (mm): 19.5 | Overall length LF (mm): 150 | Stock: Yes
WBMF1120L Cutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 60 | Usable length LU (mm): 19.5 | Overall length LF (mm): 200 | Stock: Yes
WBMF1160S Cutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Usable length LU (mm): 25.5 | Overall length LF (mm): 130 | Stock: Yes
WBMF1160M Cutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Usable length LU (mm): 25.5 | Overall length LF (mm): 180 | Stock: Yes
WBMF1160L Cutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 70 | Usable length LU (mm): 25.5 | Overall length LF (mm): 220 | Stock: Yes
WBMF1200S Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 32 | Overall length LF (mm): 140 | Stock: Yes
WBMF1200M Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 32 | Overall length LF (mm): 200 | Stock: Yes
WBMF1200L Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 80 | Usable length LU (mm): 32 | Overall length LF (mm): 250 | Stock: Yes
WBMF1250S Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Usable length LU (mm): 36 | Overall length LF (mm): 150 | Stock: Yes
WBMF1250M Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 73 | Usable length LU (mm): 36 | Overall length LF (mm): 220 | Stock: Yes
WBMF1250L Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 100 | Usable length LU (mm): 36 | Overall length LF (mm): 300 | Stock: Yes
WBMF1300S Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 80 | Usable length LU (mm): 43 | Overall length LF (mm): 160 | Stock: Yes
WBMF1300M Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 85 | Usable length LU (mm): 43 | Overall length LF (mm): 240 | Stock: Yes
WBMF1300L Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Usable length LU (mm): 43 | Overall length LF (mm): 350 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Ball WBMF 1000 Ball Cutter for Finishing

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (18)

WBMF1100S, WBMF1100M, WBMF1100L, WBMF1120S, WBMF1120M, WBMF1120L, WBMF1160S, WBMF1160M, WBMF1160L, WBMF1200S + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WBMF1100SCutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 30 | Usable length LU (mm): 17 | Overall length LF (mm): 100 | Stock: Yes
WBMF1100MCutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 35 | Usable length LU (mm): 17 | Overall length LF (mm): 130 | Stock: Yes
WBMF1100LCutting dia DC (mm): 10 | Max depth of cut APMX (mm): 9 | Shank dia DMM (mm): 16 | Head length LH (mm): 50 | Usable length LU (mm): 17 | Overall length LF (mm): 180 | Stock: Yes
WBMF1120SCutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 40 | Usable length LU (mm): 19.5 | Overall length LF (mm): 110 | Stock: Yes
WBMF1120MCutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 40 | Usable length LU (mm): 19.5 | Overall length LF (mm): 150 | Stock: Yes
WBMF1120LCutting dia DC (mm): 12 | Max depth of cut APMX (mm): 10.5 | Shank dia DMM (mm): 16 | Head length LH (mm): 60 | Usable length LU (mm): 19.5 | Overall length LF (mm): 200 | Stock: Yes
WBMF1160SCutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Usable length LU (mm): 25.5 | Overall length LF (mm): 130 | Stock: Yes
WBMF1160MCutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 50 | Usable length LU (mm): 25.5 | Overall length LF (mm): 180 | Stock: Yes
WBMF1160LCutting dia DC (mm): 16 | Max depth of cut APMX (mm): 12 | Shank dia DMM (mm): 20 | Head length LH (mm): 70 | Usable length LU (mm): 25.5 | Overall length LF (mm): 220 | Stock: Yes
WBMF1200SCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 32 | Overall length LF (mm): 140 | Stock: Yes
WBMF1200MCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 32 | Overall length LF (mm): 200 | Stock: Yes
WBMF1200LCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 15 | Shank dia DMM (mm): 25 | Head length LH (mm): 80 | Usable length LU (mm): 32 | Overall length LF (mm): 250 | Stock: Yes
WBMF1250SCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Usable length LU (mm): 36 | Overall length LF (mm): 150 | Stock: Yes
WBMF1250MCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 73 | Usable length LU (mm): 36 | Overall length LF (mm): 220 | Stock: Yes
WBMF1250LCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 18.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 100 | Usable length LU (mm): 36 | Overall length LF (mm): 300 | Stock: Yes
WBMF1300SCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 80 | Usable length LU (mm): 43 | Overall length LF (mm): 160 | Stock: Yes
WBMF1300MCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 85 | Usable length LU (mm): 43 | Overall length LF (mm): 240 | Stock: Yes
WBMF1300LCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 22.5 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Usable length LU (mm): 43 | Overall length LF (mm): 350 | Stock: Yes
