• Sumitomo Electric Hardmetal SEC-Wave Ball WBMR 2000 Ball Cutter for Roughing
1 1

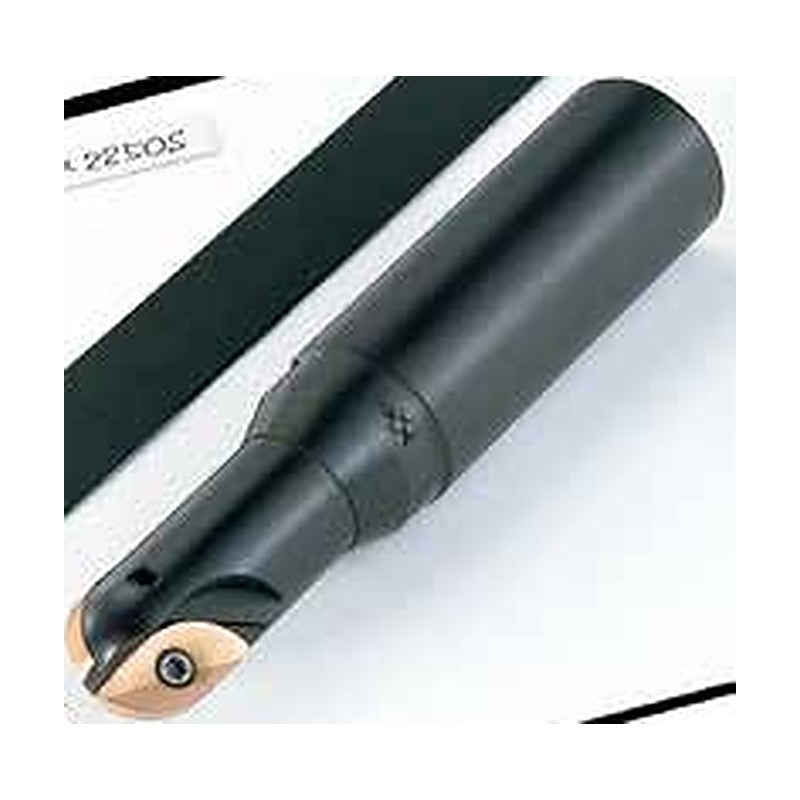

Sumitomo Electric Hardmetal SEC-Wave Ball WBMR 2000 Ball Cutter for Roughing

Sumitomo Electric Hardmetal SEC-Wave Ball WBMR 2000 Ball Cutter for Roughing

Indexable ball shank cutter for 3D copy roughing of dies and machine parts, available from 20 to 50 mm diameter.

Key features

  • Wave cutting edge with high rake angle
  • Economical M-class inserts
  • Screw anti-loosening mechanism
WBMR2200S Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 40 | Overall length LF (mm): 140 | Stock: Yes
WBMR2200M Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 40 | Overall length LF (mm): 200 | Stock: Yes
WBMR2200L Cutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 80 | Usable length LU (mm): 40 | Overall length LF (mm): 250 | Stock: Yes
WBMR2250S Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Usable length LU (mm): 50 | Overall length LF (mm): 150 | Stock: Yes
WBMR2250M Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 73 | Usable length LU (mm): 50 | Overall length LF (mm): 220 | Stock: Yes
WBMR2250L Cutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 100 | Usable length LU (mm): 50 | Overall length LF (mm): 300 | Stock: Yes
WBMR2300S Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 80 | Usable length LU (mm): 60 | Overall length LF (mm): 160 | Stock: Yes
WBMR2300M Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 85 | Usable length LU (mm): 60 | Overall length LF (mm): 240 | Stock: Yes
WBMR2300L Cutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Usable length LU (mm): 60 | Overall length LF (mm): 350 | Stock: Yes
WBMR2400S Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2400M Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2400L Cutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
WBMR2500S Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2500M Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2500L Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
WBMR2500S-C Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2500M-C Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2500L-C Cutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Ball WBMR 2000 Ball Cutter for Roughing

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (18)

WBMR2200S, WBMR2200M, WBMR2200L, WBMR2250S, WBMR2250M, WBMR2250L, WBMR2300S, WBMR2300M, WBMR2300L, WBMR2400S + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WBMR2200SCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 40 | Overall length LF (mm): 140 | Stock: Yes
WBMR2200MCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Usable length LU (mm): 40 | Overall length LF (mm): 200 | Stock: Yes
WBMR2200LCutting dia DC (mm): 20 | Max depth of cut APMX (mm): 20 | Shank dia DMM (mm): 25 | Head length LH (mm): 80 | Usable length LU (mm): 40 | Overall length LF (mm): 250 | Stock: Yes
WBMR2250SCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Usable length LU (mm): 50 | Overall length LF (mm): 150 | Stock: Yes
WBMR2250MCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 73 | Usable length LU (mm): 50 | Overall length LF (mm): 220 | Stock: Yes
WBMR2250LCutting dia DC (mm): 25 | Max depth of cut APMX (mm): 23 | Shank dia DMM (mm): 32 | Head length LH (mm): 100 | Usable length LU (mm): 50 | Overall length LF (mm): 300 | Stock: Yes
WBMR2300SCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 80 | Usable length LU (mm): 60 | Overall length LF (mm): 160 | Stock: Yes
WBMR2300MCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 85 | Usable length LU (mm): 60 | Overall length LF (mm): 240 | Stock: Yes
WBMR2300LCutting dia DC (mm): 30 | Max depth of cut APMX (mm): 28 | Shank dia DMM (mm): 32 | Head length LH (mm): 120 | Usable length LU (mm): 60 | Overall length LF (mm): 350 | Stock: Yes
WBMR2400SCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2400MCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2400LCutting dia DC (mm): 40 | Max depth of cut APMX (mm): 35 | Shank dia DMM (mm): 42 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
WBMR2500SCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2500MCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2500LCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 42 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
WBMR2500S-CCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 100 | Overall length LF (mm): 200 | Stock: Yes
WBMR2500M-CCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 180 | Overall length LF (mm): 280 | Stock: Yes
WBMR2500L-CCutting dia DC (mm): 50 | Max depth of cut APMX (mm): 47 | Shank dia DMM (mm): 50.8 | Head length LH (mm): 250 | Overall length LF (mm): 350 | Stock: Yes
