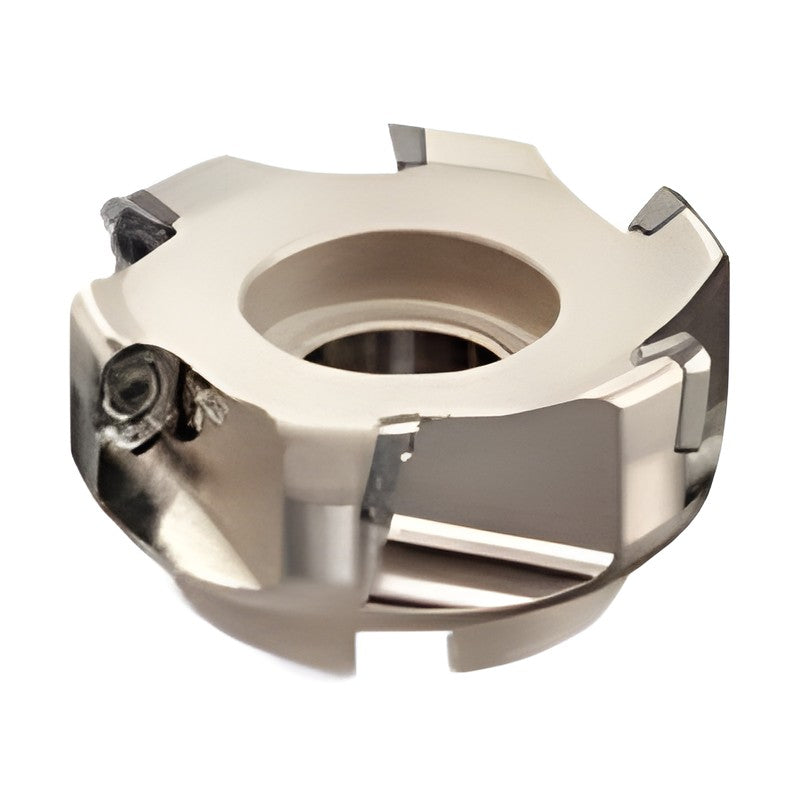

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 3000 Cutter for Non-Ferrous Metals

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 3000 Cutter for Non-Ferrous Metals

Wave Mill cutter for roughing and finishing of aluminium alloys and other non-ferrous metals, with coolant holes on all types.

Key features

  • Lapped rake face for better adhesion resistance
  • DL1000 DLC-coated grade
  • Anti-scatter safety design
WAX3050-3.2 Cutting dia DC (mm): 50 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.34 | Stock: Yes
WAX3063-3.2 Cutting dia DC (mm): 63 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.6 | Stock: Yes
WAX3080-3.2 Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 57 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 26 | Bolt dia D3 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
WAX3100-3.2 Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 67 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Bolt dia D3 (mm): 17 | Teeth: 6 | Weight (kg): 2.2 | Stock: Yes
WAX3125-3.2 Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 87 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 30 | Bolt dia D2 (mm): 21 | Teeth: 7 | Weight (kg): 3.5 | Stock: Yes
WAX3050-4.0 Cutting dia DC (mm): 50 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.34 | Stock: Yes
WAX3063-4.0 Cutting dia DC (mm): 63 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.6 | Stock: Yes
WAX3080-4.0 Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 57 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 26 | Bolt dia D3 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
WAX3100-4.0 Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 67 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Bolt dia D3 (mm): 17 | Teeth: 6 | Weight (kg): 2.2 | Stock: Yes
WAX3125-4.0 Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 87 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 30 | Bolt dia D2 (mm): 21 | Teeth: 7 | Weight (kg): 3.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 3000 Cutter for Non-Ferrous Metals

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

WAX3050-3.2, WAX3063-3.2, WAX3080-3.2, WAX3100-3.2, WAX3125-3.2, WAX3050-4.0, WAX3063-4.0, WAX3080-4.0, WAX3100-4.0, WAX3125-4.0

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAX3050-3.2Cutting dia DC (mm): 50 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.34 | Stock: Yes
WAX3063-3.2Cutting dia DC (mm): 63 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.6 | Stock: Yes
WAX3080-3.2Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 57 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 26 | Bolt dia D3 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
WAX3100-3.2Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 67 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Bolt dia D3 (mm): 17 | Teeth: 6 | Weight (kg): 2.2 | Stock: Yes
WAX3125-3.2Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 87 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 30 | Bolt dia D2 (mm): 21 | Teeth: 7 | Weight (kg): 3.5 | Stock: Yes
WAX3050-4.0Cutting dia DC (mm): 50 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.34 | Stock: Yes
WAX3063-4.0Cutting dia DC (mm): 63 | Boss dia DCSFMS (mm): 42 | Height LF (mm): 50 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 21 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.6 | Stock: Yes
WAX3080-4.0Cutting dia DC (mm): 80 | Boss dia DCSFMS (mm): 57 | Height LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 25 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 26 | Bolt dia D3 (mm): 14 | Teeth: 5 | Weight (kg): 1.0 | Stock: Yes
WAX3100-4.0Cutting dia DC (mm): 100 | Boss dia DCSFMS (mm): 67 | Height LF (mm): 63 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32.5 | Bolt dia D1 (mm): 46 | Bolt dia D2 (mm): 28 | Bolt dia D3 (mm): 17 | Teeth: 6 | Weight (kg): 2.2 | Stock: Yes
WAX3125-4.0Cutting dia DC (mm): 125 | Boss dia DCSFMS (mm): 87 | Height LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 35.5 | Bolt dia D1 (mm): 30 | Bolt dia D2 (mm): 21 | Teeth: 7 | Weight (kg): 3.5 | Stock: Yes
