• Sumitomo Electric Hardmetal SEC-Wave Mill WAX 4000E/EL Shank Cutter for Non-Ferrous Metals
1 1

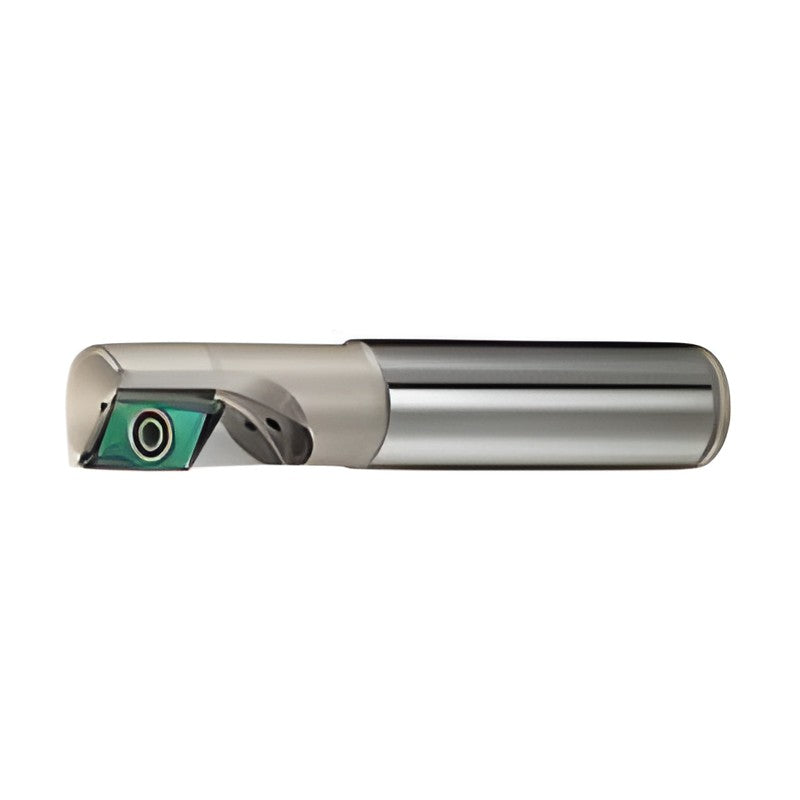

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 4000E/EL Shank Cutter for Non-Ferrous Metals

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 4000E/EL Shank Cutter for Non-Ferrous Metals

Wave Mill cutter for roughing and finishing of aluminium alloys and other non-ferrous metals, with coolant holes on all types.

Key features

  • Lapped rake face for better adhesion resistance
  • DL1000 DLC-coated grade
WAX4025E-3.2 Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 1 | Weight (kg): 0.41 | Stock: Yes
WAX4025EL-3.2 Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 200 | Teeth: 1 | Weight (kg): 0.63 | Stock: Yes
WAX4032E-3.2 Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 1 | Weight (kg): 0.72 | Stock: Yes
WAX4032EL-3.2 Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 1 | Weight (kg): 1.2 | Stock: Yes
WAX4040E-3.2 Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 160 | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WAX4040EL-3.2 Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 2 | Weight (kg): 1.2 | Stock: Yes
WAX4025E-4.0 Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 1 | Weight (kg): 0.41 | Stock: Yes
WAX4025EL-4.0 Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 200 | Teeth: 1 | Weight (kg): 0.63 | Stock: Yes
WAX4032E-4.0 Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 1 | Weight (kg): 0.72 | Stock: Yes
WAX4032EL-4.0 Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 1 | Weight (kg): 1.2 | Stock: Yes
WAX4040E-4.0 Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 160 | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WAX4040EL-4.0 Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 2 | Weight (kg): 1.2 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WAX 4000E/EL Shank Cutter for Non-Ferrous Metals

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

WAX4025E-3.2, WAX4025EL-3.2, WAX4032E-3.2, WAX4032EL-3.2, WAX4040E-3.2, WAX4040EL-3.2, WAX4025E-4.0, WAX4025EL-4.0, WAX4032E-4.0, WAX4032EL-4.0 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAX4025E-3.2Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 1 | Weight (kg): 0.41 | Stock: Yes
WAX4025EL-3.2Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 200 | Teeth: 1 | Weight (kg): 0.63 | Stock: Yes
WAX4032E-3.2Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 1 | Weight (kg): 0.72 | Stock: Yes
WAX4032EL-3.2Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 1 | Weight (kg): 1.2 | Stock: Yes
WAX4040E-3.2Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 160 | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WAX4040EL-3.2Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 2 | Weight (kg): 1.2 | Stock: Yes
WAX4025E-4.0Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 140 | Teeth: 1 | Weight (kg): 0.41 | Stock: Yes
WAX4025EL-4.0Cutting dia DC (mm): 25 | Shank dia DMM (mm): 25 | Head length LH (mm): 60 | Overall length LF (mm): 200 | Teeth: 1 | Weight (kg): 0.63 | Stock: Yes
WAX4032E-4.0Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 150 | Teeth: 1 | Weight (kg): 0.72 | Stock: Yes
WAX4032EL-4.0Cutting dia DC (mm): 32 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 1 | Weight (kg): 1.2 | Stock: Yes
WAX4040E-4.0Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 160 | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WAX4040EL-4.0Cutting dia DC (mm): 40 | Shank dia DMM (mm): 32 | Head length LH (mm): 70 | Overall length LF (mm): 220 | Teeth: 2 | Weight (kg): 1.2 | Stock: Yes
