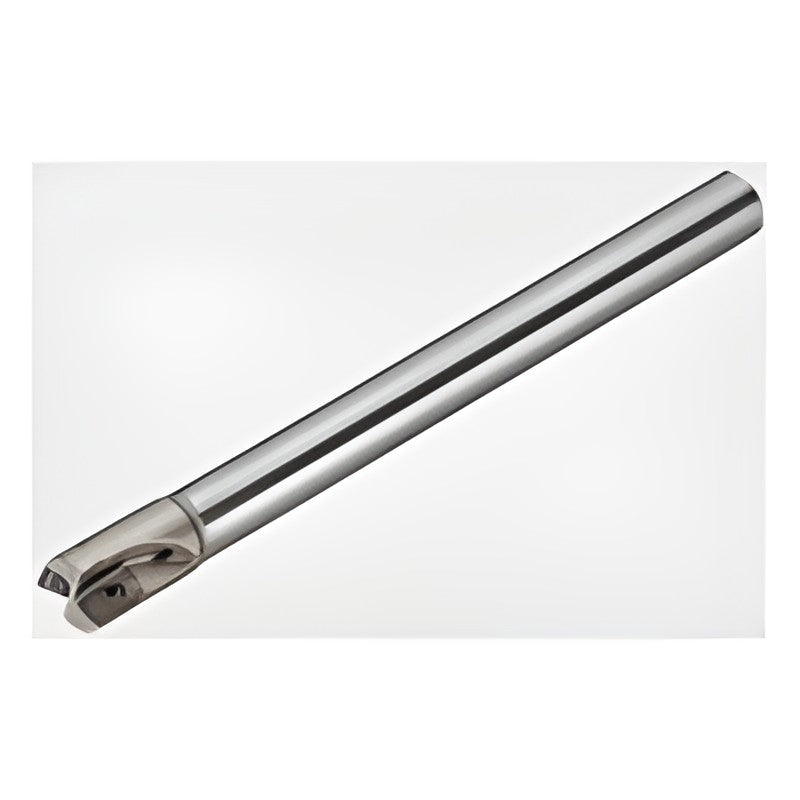

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 1000E/EL Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 1000E/EL Shank Type Milling Cutter

Indexable shoulder milling cutter using AXMT/AXET 0602, 1235 or 1705 inserts; strengthened low-resistance inserts and a rigid body give stable high-efficiency machining and smooth finished surfaces.

Key features

  • Curved cutting edge improves edge strength and reduces cutting resistance
  • High-precision edge for near-finish surface quality
  • Through-coolant/air for improved chip evacuation
  • Special surface treatment for corrosion and wear resistance
  • 6 breaker types and 9 grades

Specifications

Insert Not included (sold separately)
WEX1010E DC (mm): 10 | DMM shank dia (mm): 10 | LH head length (mm): 17 | LF length (mm): 50 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
WEX1012E DC (mm): 12 | DMM shank dia (mm): 12 | LH head length (mm): 20 | LF length (mm): 80 | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
WEX1014E DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 22 | LF length (mm): 80 | Teeth: 3 | Weight (kg): 0.10 | Stock: Yes
WEX1016E DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 20 | LF length (mm): 90 | Teeth: 4 | Weight (kg): 0.12 | Stock: Yes
WEX1018E DC (mm): 18 | DMM shank dia (mm): 20 | LH head length (mm): 22 | LF length (mm): 100 | Teeth: 4 | Weight (kg): 0.21 | Stock: Yes
WEX1020E DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 22 | LF length (mm): 100 | Teeth: 5 | Weight (kg): 0.22 | Stock: Yes
WEX1025E DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 25 | LF length (mm): 115 | Teeth: 7 | Weight (kg): 0.27 | Stock: Yes
WEX1010EL DC (mm): 10 | DMM shank dia (mm): 8 | LH head length (mm): 17 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
WEX1012EL DC (mm): 12 | DMM shank dia (mm): 10 | LH head length (mm): 20 | LF length (mm): 120 | Teeth: 2 | Weight (kg): 0.06 | Stock: Yes
WEX1014EL DC (mm): 14 | DMM shank dia (mm): 12 | LH head length (mm): 20 | LF length (mm): 145 | Teeth: 3 | Weight (kg): 0.11 | Stock: Yes
WEX1016EL DC (mm): 16 | DMM shank dia (mm): 14 | LH head length (mm): 20 | LF length (mm): 160 | Teeth: 3 | Weight (kg): 0.17 | Stock: Yes
WEX1018EL DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 20 | LF length (mm): 180 | Teeth: 3 | Weight (kg): 0.25 | Stock: Yes
WEX1020EL DC (mm): 20 | DMM shank dia (mm): 18 | LH head length (mm): 25 | LF length (mm): 200 | Teeth: 4 | Weight (kg): 0.36 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 1000E/EL Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (13)

WEX1010E, WEX1012E, WEX1014E, WEX1016E, WEX1018E, WEX1020E, WEX1025E, WEX1010EL, WEX1012EL, WEX1014EL + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEX1010EDC (mm): 10 | DMM shank dia (mm): 10 | LH head length (mm): 17 | LF length (mm): 50 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
WEX1012EDC (mm): 12 | DMM shank dia (mm): 12 | LH head length (mm): 20 | LF length (mm): 80 | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
WEX1014EDC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 22 | LF length (mm): 80 | Teeth: 3 | Weight (kg): 0.10 | Stock: Yes
WEX1016EDC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 20 | LF length (mm): 90 | Teeth: 4 | Weight (kg): 0.12 | Stock: Yes
WEX1018EDC (mm): 18 | DMM shank dia (mm): 20 | LH head length (mm): 22 | LF length (mm): 100 | Teeth: 4 | Weight (kg): 0.21 | Stock: Yes
WEX1020EDC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 22 | LF length (mm): 100 | Teeth: 5 | Weight (kg): 0.22 | Stock: Yes
WEX1025EDC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 25 | LF length (mm): 115 | Teeth: 7 | Weight (kg): 0.27 | Stock: Yes
WEX1010ELDC (mm): 10 | DMM shank dia (mm): 8 | LH head length (mm): 17 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.03 | Stock: Yes
WEX1012ELDC (mm): 12 | DMM shank dia (mm): 10 | LH head length (mm): 20 | LF length (mm): 120 | Teeth: 2 | Weight (kg): 0.06 | Stock: Yes
WEX1014ELDC (mm): 14 | DMM shank dia (mm): 12 | LH head length (mm): 20 | LF length (mm): 145 | Teeth: 3 | Weight (kg): 0.11 | Stock: Yes
WEX1016ELDC (mm): 16 | DMM shank dia (mm): 14 | LH head length (mm): 20 | LF length (mm): 160 | Teeth: 3 | Weight (kg): 0.17 | Stock: Yes
WEX1018ELDC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 20 | LF length (mm): 180 | Teeth: 3 | Weight (kg): 0.25 | Stock: Yes
WEX1020ELDC (mm): 20 | DMM shank dia (mm): 18 | LH head length (mm): 25 | LF length (mm): 200 | Teeth: 4 | Weight (kg): 0.36 | Stock: Yes
