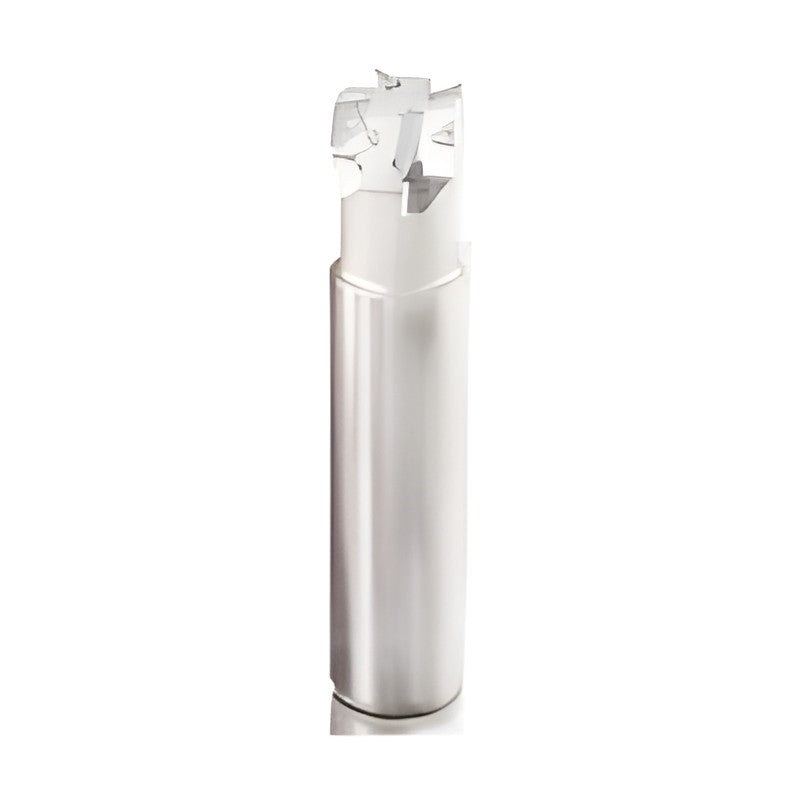

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000E/EL Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000E/EL Shank Type Milling Cutter

Indexable shoulder milling cutter using AXMT/AXET 0602, 1235 or 1705 inserts; strengthened low-resistance inserts and a rigid body give stable high-efficiency machining and smooth finished surfaces.

Key features

  • Curved cutting edge improves edge strength and reduces cutting resistance
  • High-precision edge for near-finish surface quality
  • Through-coolant/air for improved chip evacuation
  • Special surface treatment for corrosion and wear resistance
  • 6 breaker types and 9 grades

Specifications

Insert Not included (sold separately)
WEX2014E DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 80 | Teeth: 1 | Weight (kg): 0.10 | Stock: Yes
WEX2014EL DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 120 | Teeth: 1 | Weight (kg): 0.14 | Stock: Yes
WEX2016E DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEX2016EL DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 145 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEX2018E DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.14 | Stock: Yes
WEX2018EL DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 145 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEX2020E DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 3 | Weight (kg): 0.22 | Stock: Yes
WEX2020EL DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 150 | Teeth: 2 | Weight (kg): 0.32 | Stock: Yes
WEX2022E DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEX2022EL DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 2 | Weight (kg): 0.33 | Stock: Yes
WEX2025E DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.38 | Stock: Yes
WEX2025EL DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.55 | Stock: Yes
WEX2028E DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.39 | Stock: Yes
WEX2028EL DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.59 | Stock: Yes
WEX2030E DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.40 | Stock: Yes
WEX2030EL DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.60 | Stock: Yes
WEX2032E DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 5 | Weight (kg): 0.70 | Stock: Yes
WEX2032EL DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 0.99 | Stock: Yes
WEX2040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 6 | Weight (kg): 0.91 | Stock: Yes
WEX2040EL DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 1.12 | Stock: Yes
WEX2050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 7 | Weight (kg): 1.02 | Stock: Yes
WEX2063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 8 | Weight (kg): 1.22 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000E/EL Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (22)

WEX2014E, WEX2014EL, WEX2016E, WEX2016EL, WEX2018E, WEX2018EL, WEX2020E, WEX2020EL, WEX2022E, WEX2022EL + 12 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEX2014EDC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 80 | Teeth: 1 | Weight (kg): 0.10 | Stock: Yes
WEX2014ELDC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 120 | Teeth: 1 | Weight (kg): 0.14 | Stock: Yes
WEX2016EDC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEX2016ELDC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 145 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEX2018EDC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 100 | Teeth: 2 | Weight (kg): 0.14 | Stock: Yes
WEX2018ELDC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25 | LF length (mm): 145 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEX2020EDC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 3 | Weight (kg): 0.22 | Stock: Yes
WEX2020ELDC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 40 | LF length (mm): 150 | Teeth: 2 | Weight (kg): 0.32 | Stock: Yes
WEX2022EDC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 110 | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEX2022ELDC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 2 | Weight (kg): 0.33 | Stock: Yes
WEX2025EDC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.38 | Stock: Yes
WEX2025ELDC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.55 | Stock: Yes
WEX2028EDC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.39 | Stock: Yes
WEX2028ELDC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.59 | Stock: Yes
WEX2030EDC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 4 | Weight (kg): 0.40 | Stock: Yes
WEX2030ELDC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 30 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.60 | Stock: Yes
WEX2032EDC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 5 | Weight (kg): 0.70 | Stock: Yes
WEX2032ELDC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 0.99 | Stock: Yes
WEX2040EDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 6 | Weight (kg): 0.91 | Stock: Yes
WEX2040ELDC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 1.12 | Stock: Yes
WEX2050EDC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 7 | Weight (kg): 1.02 | Stock: Yes
WEX2063EDC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30 | LF length (mm): 150 | Teeth: 8 | Weight (kg): 1.22 | Stock: Yes
