Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000F Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000F Milling Cutter

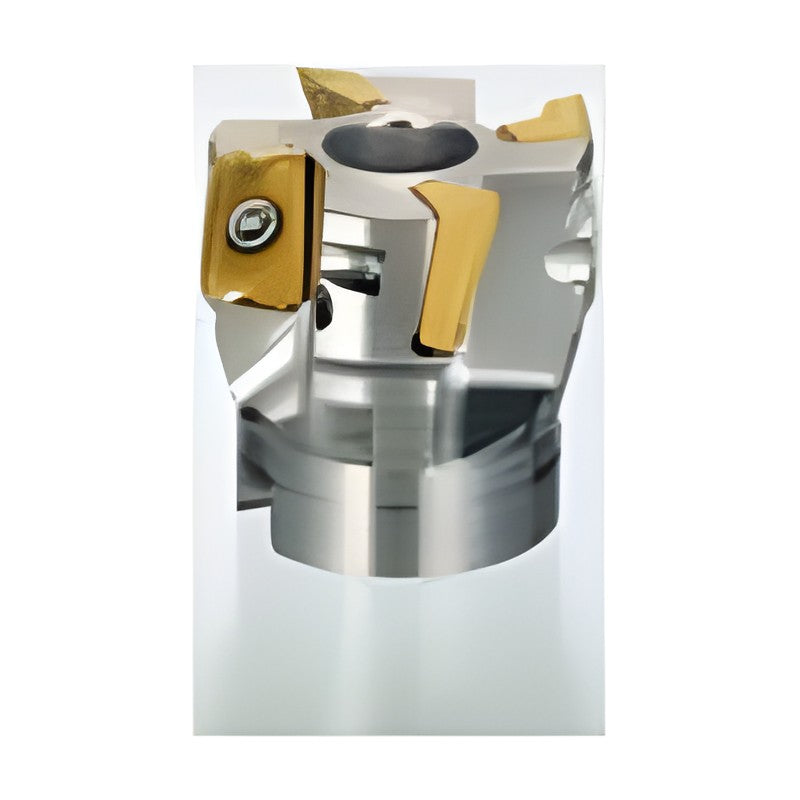

Indexable shoulder milling cutter using AXMT/AXET 0602, 1235 or 1705 inserts; strengthened low-resistance inserts and a rigid body give stable high-efficiency machining and smooth finished surfaces.

Key features

  • Curved cutting edge improves edge strength and reduces cutting resistance
  • High-precision edge for near-finish surface quality
  • Through-coolant/air for improved chip evacuation
  • Special surface treatment for corrosion and wear resistance
  • 6 breaker types and 9 grades

Specifications

Insert Not included (sold separately)
WEX2040F DC (mm): 40 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.19 | Stock: Yes
WEX2050F DC (mm): 50 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.29 | Stock: Yes
WEX2063F DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.51 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000F Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (3)

WEX2040F, WEX2050F, WEX2063F

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEX2040FDC (mm): 40 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.19 | Stock: Yes
WEX2050FDC (mm): 50 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.29 | Stock: Yes
WEX2063FDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.51 | Stock: Yes
