• Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000M Modular Head
1 1

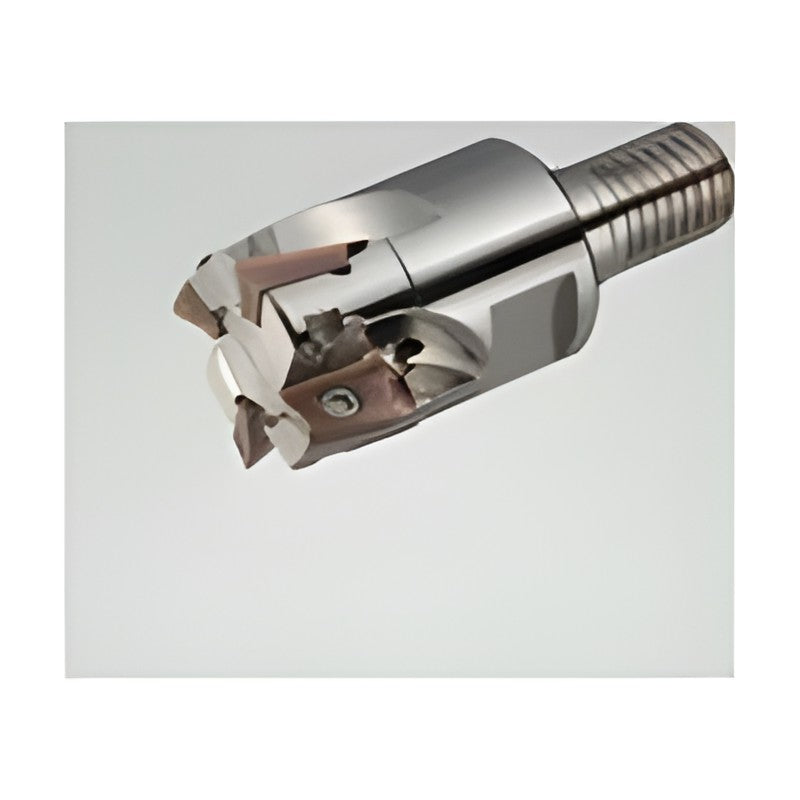

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000M Modular Head

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
WEX2016M08Z2 Cutting dia DC (mm): 16 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Yes
WEX2018M08Z2 Cutting dia DC (mm): 18 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Yes
WEX2020M10Z3 Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Yes
WEX2022M10Z3 Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Yes
WEX2025M12Z4 Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Stock: Yes
WEX2028M12Z4 Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Stock: Yes
WEX2030M16Z4 Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Stock: Yes
WEX2032M16Z5 Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 5 | Stock: Yes
WEX2040M16Z6 Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 6 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 2000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (9)

WEX2016M08Z2, WEX2018M08Z2, WEX2020M10Z3, WEX2022M10Z3, WEX2025M12Z4, WEX2028M12Z4, WEX2030M16Z4, WEX2032M16Z5, WEX2040M16Z6

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEX2016M08Z2Cutting dia DC (mm): 16 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Yes
WEX2018M08Z2Cutting dia DC (mm): 18 | Boss dia DCSFMS (mm): 15.0 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Stock: Yes
WEX2020M10Z3Cutting dia DC (mm): 20 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Yes
WEX2022M10Z3Cutting dia DC (mm): 22 | Boss dia DCSFMS (mm): 18.0 | Connection dia DCON (mm): 10.5 | Connection thread CRKS: M10 | Overall length OAL (mm): 49 | Effective length LF (mm): 30 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 15 | Teeth: 3 | Stock: Yes
WEX2025M12Z4Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Stock: Yes
WEX2028M12Z4Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 35 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 4 | Stock: Yes
WEX2030M16Z4Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Stock: Yes
WEX2032M16Z5Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 5 | Stock: Yes
WEX2040M16Z6Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 6 | Stock: Yes
