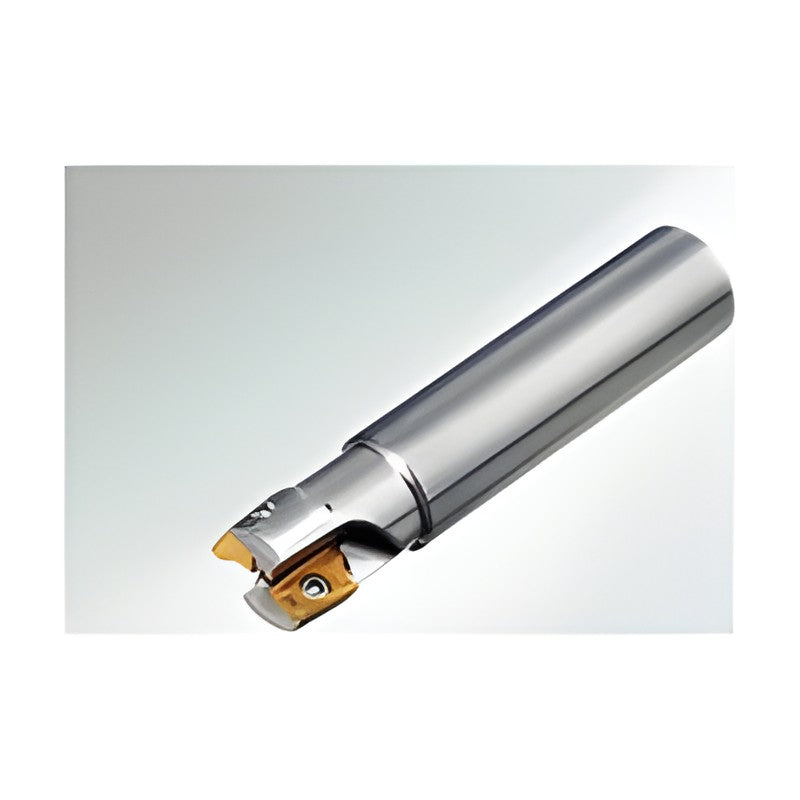

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 3000E/ES/EL/E-C/ES-C Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 3000E/ES/EL/E-C/ES-C Shank Type Milling Cutter

Indexable shoulder milling cutter using AXMT/AXET 0602, 1235 or 1705 inserts; strengthened low-resistance inserts and a rigid body give stable high-efficiency machining and smooth finished surfaces.

Key features

  • Curved cutting edge improves edge strength and reduces cutting resistance
  • High-precision edge for near-finish surface quality
  • Through-coolant/air for improved chip evacuation
  • Special surface treatment for corrosion and wear resistance
  • 6 breaker types and 9 grades

Specifications

Insert Not included (sold separately)
WEX3025E-20 DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 2 | Weight (kg): 0.25 | Stock: Yes
WEX3025E DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 2 | Weight (kg): 0.37 | Stock: Yes
WEX3028E DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35 | LF length (mm): 120 | Teeth: 2 | Weight (kg): 0.39 | Stock: Yes
WEX3030E DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 3 | Weight (kg): 0.42 | Stock: Yes
WEX3032E-25 DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 3 | Weight (kg): 0.43 | Stock: Yes
WEX3032E DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 3 | Weight (kg): 0.67 | Stock: Yes
WEX3035E DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 40 | LF length (mm): 130 | Teeth: 3 | Weight (kg): 0.69 | Stock: Yes
WEX3040E DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 4 | Weight (kg): 1.01 | Stock: Yes
WEX3050E DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 5 | Weight (kg): 1.23 | Stock: Yes
WEX3063E DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 6 | Weight (kg): 1.58 | Stock: Yes
WEX3050ES DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 5 | Weight (kg): 0.86 | Stock: Yes
WEX3050ES-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 5 | Weight (kg): 1.36 | Stock: Yes
WEX3025EL DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.54 | Stock: Yes
WEX3028EL DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 2 | Weight (kg): 0.56 | Stock: Yes
WEX3030EL DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 60 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 0.60 | Stock: Yes
WEX3032EL DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 0.95 | Stock: Yes
WEX3035EL DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 60 | LF length (mm): 180 | Teeth: 2 | Weight (kg): 0.98 | Stock: Yes
WEX3040EL DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 80 | LF length (mm): 220 | Teeth: 2 | Weight (kg): 1.38 | Stock: Yes
WEX3040E-C DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 3 | Weight (kg): 1.04 | Stock: Yes
WEX3050E-C DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 3 | Weight (kg): 1.28 | Stock: Yes
WEX3063E-C DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 50 | LF length (mm): 170 | Teeth: 4 | Weight (kg): 1.64 | Stock: Yes
WEX3050ES-C DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 3 | Weight (kg): 0.91 | Stock: Yes
WEX3050ES-C-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 3 | Weight (kg): 1.41 | Stock: Yes
WEX3063ES-C DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 4 | Weight (kg): 1.07 | Stock: Yes
WEX3063ES-C-42 DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 25 | LF length (mm): 135 | Teeth: 4 | Weight (kg): 1.57 | Stock: Yes
