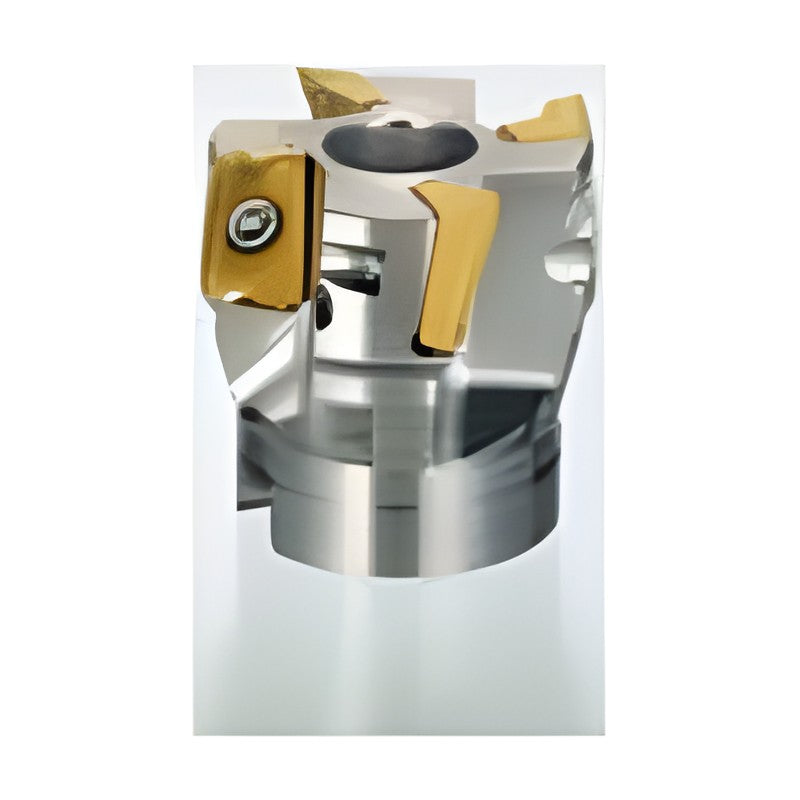

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 3000F/R Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 3000F/R Milling Cutter

Indexable shoulder milling cutter using AXMT/AXET 0602, 1235 or 1705 inserts; strengthened low-resistance inserts and a rigid body give stable high-efficiency machining and smooth finished surfaces.

Key features

  • Curved cutting edge improves edge strength and reduces cutting resistance
  • High-precision edge for near-finish surface quality
  • Through-coolant/air for improved chip evacuation
  • Special surface treatment for corrosion and wear resistance
  • 6 breaker types and 9 grades

Specifications

Insert Not included (sold separately)
WEX3040F DC (mm): 40 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.16 | Stock: Yes
WEX3050F DC (mm): 50 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.25 | Stock: Yes
WEX3063F DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.48 | Stock: Yes
WEX3080R DC (mm): 80 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 35 | D2 (mm): 26 | D3 (mm): 13.5 | Teeth: 4 | Weight (kg): 1.06 | Stock: Yes
WEX3100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 46 | D2 (mm): 28 | D3 (mm): 17 | Teeth: 5 | Weight (kg): 1.99 | Stock: Yes
WEX3125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.89 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEX 3000F/R Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (6)

WEX3040F, WEX3050F, WEX3063F, WEX3080R, WEX3100R, WEX3125R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEX3040FDC (mm): 40 | DCSFMS boss dia (mm): 32 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.16 | Stock: Yes
WEX3050FDC (mm): 50 | DCSFMS boss dia (mm): 40 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.25 | Stock: Yes
WEX3063FDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.48 | Stock: Yes
WEX3080RDC (mm): 80 | DCSFMS boss dia (mm): 60 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 35 | D2 (mm): 26 | D3 (mm): 13.5 | Teeth: 4 | Weight (kg): 1.06 | Stock: Yes
WEX3100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32.5 | D1 (mm): 46 | D2 (mm): 28 | D3 (mm): 17 | Teeth: 5 | Weight (kg): 1.99 | Stock: Yes
WEX3125RDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.89 | Stock: Yes
