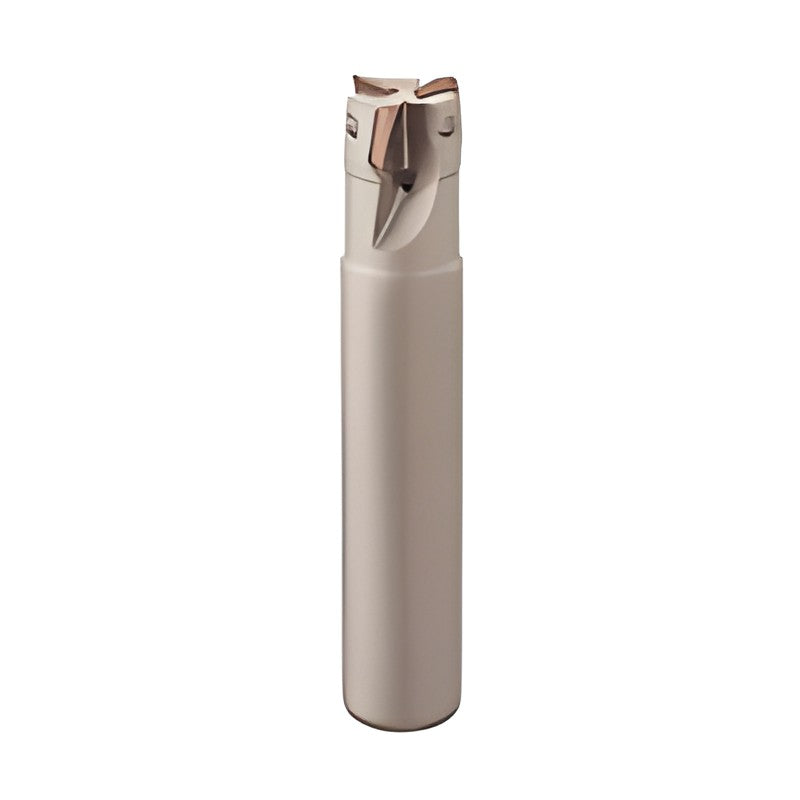

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000E Shank Type Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ11014E01 DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 80(79.7) | Teeth: 1 | Weight (kg): 0.10 | Stock: Yes
WEZ11016E02 DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEZ11016E02-12 DC (mm): 16 | DMM shank dia (mm): 12 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.07 | Stock: Yes
WEZ11018E02 DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEZ11020E02 DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 2 | Weight (kg): 0.23 | Stock: Yes
WEZ11020E02-16 DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
WEZ11020E03 DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.22 | Stock: Yes
WEZ11020E03-16 DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.14 | Stock: Yes
WEZ11022E03 DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEZ11025E02 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 2 | Weight (kg): 0.40 | Stock: Yes
WEZ11025E03 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 3 | Weight (kg): 0.40 | Stock: Yes
WEZ11025E03-20 DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 3 | Weight (kg): 0.26 | Stock: Yes
WEZ11025E04 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.39 | Stock: Yes
WEZ11025E04-20 DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.26 | Stock: Yes
WEZ11028E04 DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.41 | Stock: Yes
WEZ11030E04 DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 4 | Weight (kg): 0.46 | Stock: Yes
WEZ11032E02 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 2 | Weight (kg): 0.74 | Stock: Yes
WEZ11032E03 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 3 | Weight (kg): 0.73 | Stock: Yes
WEZ11032E04 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 4 | Weight (kg): 0.73 | Stock: Yes
WEZ11032E05 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.72 | Stock: Yes
WEZ11032E05-25 DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.46 | Stock: Yes
WEZ11035E05 DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.75 | Stock: Yes
WEZ11040E02 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.96 | Stock: Yes
WEZ11040E04 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 4 | Weight (kg): 0.94 | Stock: Yes
WEZ11040E06 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 6 | Weight (kg): 0.93 | Stock: Yes
WEZ11050E05 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 5 | Weight (kg): 1.04 | Stock: Yes
WEZ11050E07 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 7 | Weight (kg): 1.04 | Stock: Yes
WEZ11063E08 DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 8 | Weight (kg): 1.24 | Stock: Yes
WEZ11080E10 DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 10 | Weight (kg): 1.52 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (29)

WEZ11014E01, WEZ11016E02, WEZ11016E02-12, WEZ11018E02, WEZ11020E02, WEZ11020E02-16, WEZ11020E03, WEZ11020E03-16, WEZ11022E03, WEZ11025E02 + 19 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZ11014E01DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 80(79.7) | Teeth: 1 | Weight (kg): 0.10 | Stock: Yes
WEZ11016E02DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEZ11016E02-12DC (mm): 16 | DMM shank dia (mm): 12 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.07 | Stock: Yes
WEZ11018E02DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 100(99.7) | Teeth: 2 | Weight (kg): 0.13 | Stock: Yes
WEZ11020E02DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 2 | Weight (kg): 0.23 | Stock: Yes
WEZ11020E02-16DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
WEZ11020E03DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.22 | Stock: Yes
WEZ11020E03-16DC (mm): 20 | DMM shank dia (mm): 16 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.14 | Stock: Yes
WEZ11022E03DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEZ11025E02DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 2 | Weight (kg): 0.40 | Stock: Yes
WEZ11025E03DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 3 | Weight (kg): 0.40 | Stock: Yes
WEZ11025E03-20DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 3 | Weight (kg): 0.26 | Stock: Yes
WEZ11025E04DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.39 | Stock: Yes
WEZ11025E04-20DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.26 | Stock: Yes
WEZ11028E04DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.7) | LF length (mm): 120(119.7) | Teeth: 4 | Weight (kg): 0.41 | Stock: Yes
WEZ11030E04DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 4 | Weight (kg): 0.46 | Stock: Yes
WEZ11032E02DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 2 | Weight (kg): 0.74 | Stock: Yes
WEZ11032E03DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 3 | Weight (kg): 0.73 | Stock: Yes
WEZ11032E04DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 4 | Weight (kg): 0.73 | Stock: Yes
WEZ11032E05DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.72 | Stock: Yes
WEZ11032E05-25DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.46 | Stock: Yes
WEZ11035E05DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Teeth: 5 | Weight (kg): 0.75 | Stock: Yes
WEZ11040E02DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.96 | Stock: Yes
WEZ11040E04DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 4 | Weight (kg): 0.94 | Stock: Yes
WEZ11040E06DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 6 | Weight (kg): 0.93 | Stock: Yes
WEZ11050E05DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 5 | Weight (kg): 1.04 | Stock: Yes
WEZ11050E07DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 7 | Weight (kg): 1.04 | Stock: Yes
WEZ11063E08DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 8 | Weight (kg): 1.24 | Stock: Yes
WEZ11080E10DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 10 | Weight (kg): 1.52 | Stock: Yes
