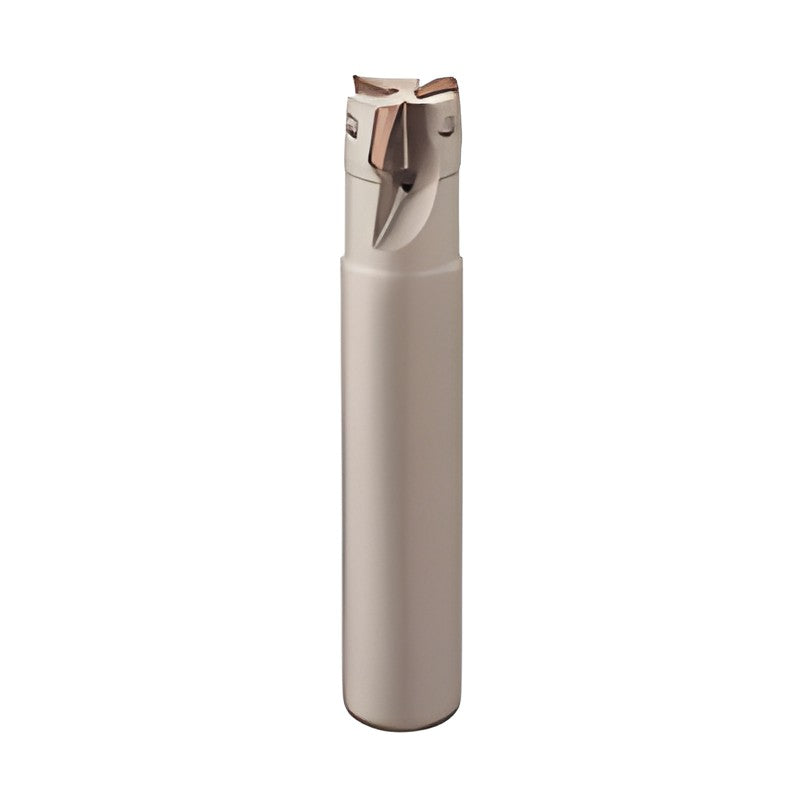

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000EL Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000EL Shank Type Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ11014EL01 DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 120(119.7) | Teeth: 1 | Weight (kg): 0.16 | Stock: Yes
WEZ11016EL02 DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEZ11016EL02-14 DC (mm): 16 | DMM shank dia (mm): 14 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
WEZ11018EL02 DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.20 | Stock: Yes
WEZ11020EL02 DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 40(39.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.31 | Stock: Yes
WEZ11020EL02-18 DC (mm): 20 | DMM shank dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.26 | Stock: Yes
WEZ11022EL02 DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.32 | Stock: Yes
WEZ11025EL02 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.57 | Stock: Yes
WEZ11025EL02-22 DC (mm): 25 | DMM shank dia (mm): 22 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.46 | Stock: Yes
WEZ11025EL03 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 0.57 | Stock: Yes
WEZ11028EL02 DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.60 | Stock: Yes
WEZ11030EL02 DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.62 | Stock: Yes
WEZ11032EL02 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.97 | Stock: Yes
WEZ11032EL02-30 DC (mm): 32 | DMM shank dia (mm): 30 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WEZ11032EL03 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 0.96 | Stock: Yes
WEZ11035EL02 DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 1.02 | Stock: Yes
WEZ11035EL03 DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 1.00 | Stock: Yes
WEZ11040EL02 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 1.08 | Stock: Yes
WEZ11050EL03 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 1.19 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000EL Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (19)

WEZ11014EL01, WEZ11016EL02, WEZ11016EL02-14, WEZ11018EL02, WEZ11020EL02, WEZ11020EL02-18, WEZ11022EL02, WEZ11025EL02, WEZ11025EL02-22, WEZ11025EL03 + 9 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZ11014EL01DC (mm): 14 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 120(119.7) | Teeth: 1 | Weight (kg): 0.16 | Stock: Yes
WEZ11016EL02DC (mm): 16 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEZ11016EL02-14DC (mm): 16 | DMM shank dia (mm): 14 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.15 | Stock: Yes
WEZ11018EL02DC (mm): 18 | DMM shank dia (mm): 16 | LH head length (mm): 25(24.7) | LF length (mm): 145(144.7) | Teeth: 2 | Weight (kg): 0.20 | Stock: Yes
WEZ11020EL02DC (mm): 20 | DMM shank dia (mm): 20 | LH head length (mm): 40(39.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.31 | Stock: Yes
WEZ11020EL02-18DC (mm): 20 | DMM shank dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.26 | Stock: Yes
WEZ11022EL02DC (mm): 22 | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 150(149.7) | Teeth: 2 | Weight (kg): 0.32 | Stock: Yes
WEZ11025EL02DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.57 | Stock: Yes
WEZ11025EL02-22DC (mm): 25 | DMM shank dia (mm): 22 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.46 | Stock: Yes
WEZ11025EL03DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 0.57 | Stock: Yes
WEZ11028EL02DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.60 | Stock: Yes
WEZ11030EL02DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.62 | Stock: Yes
WEZ11032EL02DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.97 | Stock: Yes
WEZ11032EL02-30DC (mm): 32 | DMM shank dia (mm): 30 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 0.88 | Stock: Yes
WEZ11032EL03DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 0.96 | Stock: Yes
WEZ11035EL02DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 1.02 | Stock: Yes
WEZ11035EL03DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 1.00 | Stock: Yes
WEZ11040EL02DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 2 | Weight (kg): 1.08 | Stock: Yes
WEZ11050EL03DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.7) | LF length (mm): 170(169.7) | Teeth: 3 | Weight (kg): 1.19 | Stock: Yes
