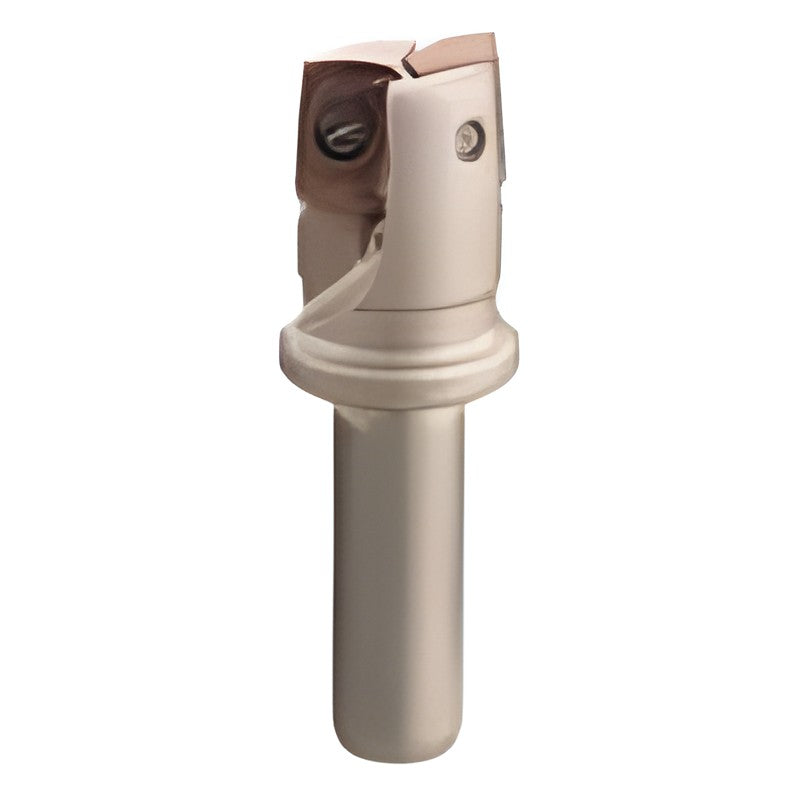

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000ES Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000ES Shank Type Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ11014ES01-12 DC (mm): 14 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 1 | Weight (kg): 0.05 | Stock: Yes
WEZ11016ES02-10 DC (mm): 16 | DMM shank dia (mm): 10 | DCSFMS boss dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 55(54.7) | Teeth: 2 | Weight (kg): 0.04 | Stock: Yes
WEZ11016ES02-12 DC (mm): 16 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 2 | Weight (kg): 0.05 | Stock: Yes
WEZ11020ES03-10 DC (mm): 20 | DMM shank dia (mm): 10 | DCSFMS boss dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 55(54.7) | Teeth: 3 | Weight (kg): 0.04 | Stock: Yes
WEZ11020ES03-12 DC (mm): 20 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
WEZ11020ES03-16 DC (mm): 20 | DMM shank dia (mm): 16 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 70(69.7) | Teeth: 3 | Weight (kg): 0.10 | Stock: Yes
WEZ11025ES04-12 DC (mm): 25 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 4 | Weight (kg): 0.09 | Stock: Yes
WEZ11025ES04-16 DC (mm): 25 | DMM shank dia (mm): 16 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 70(69.7) | Teeth: 4 | Weight (kg): 0.12 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000ES Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

WEZ11014ES01-12, WEZ11016ES02-10, WEZ11016ES02-12, WEZ11020ES03-10, WEZ11020ES03-12, WEZ11020ES03-16, WEZ11025ES04-12, WEZ11025ES04-16

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZ11014ES01-12DC (mm): 14 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 1 | Weight (kg): 0.05 | Stock: Yes
WEZ11016ES02-10DC (mm): 16 | DMM shank dia (mm): 10 | DCSFMS boss dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 55(54.7) | Teeth: 2 | Weight (kg): 0.04 | Stock: Yes
WEZ11016ES02-12DC (mm): 16 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 2 | Weight (kg): 0.05 | Stock: Yes
WEZ11020ES03-10DC (mm): 20 | DMM shank dia (mm): 10 | DCSFMS boss dia (mm): 18 | LH head length (mm): 25(24.7) | LF length (mm): 55(54.7) | Teeth: 3 | Weight (kg): 0.04 | Stock: Yes
WEZ11020ES03-12DC (mm): 20 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 18 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 3 | Weight (kg): 0.06 | Stock: Yes
WEZ11020ES03-16DC (mm): 20 | DMM shank dia (mm): 16 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 70(69.7) | Teeth: 3 | Weight (kg): 0.10 | Stock: Yes
WEZ11025ES04-12DC (mm): 25 | DMM shank dia (mm): 12 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 65(64.7) | Teeth: 4 | Weight (kg): 0.09 | Stock: Yes
WEZ11025ES04-16DC (mm): 25 | DMM shank dia (mm): 16 | DCSFMS boss dia (mm): 23 | LH head length (mm): 30(29.7) | LF length (mm): 70(69.7) | Teeth: 4 | Weight (kg): 0.12 | Stock: Yes
