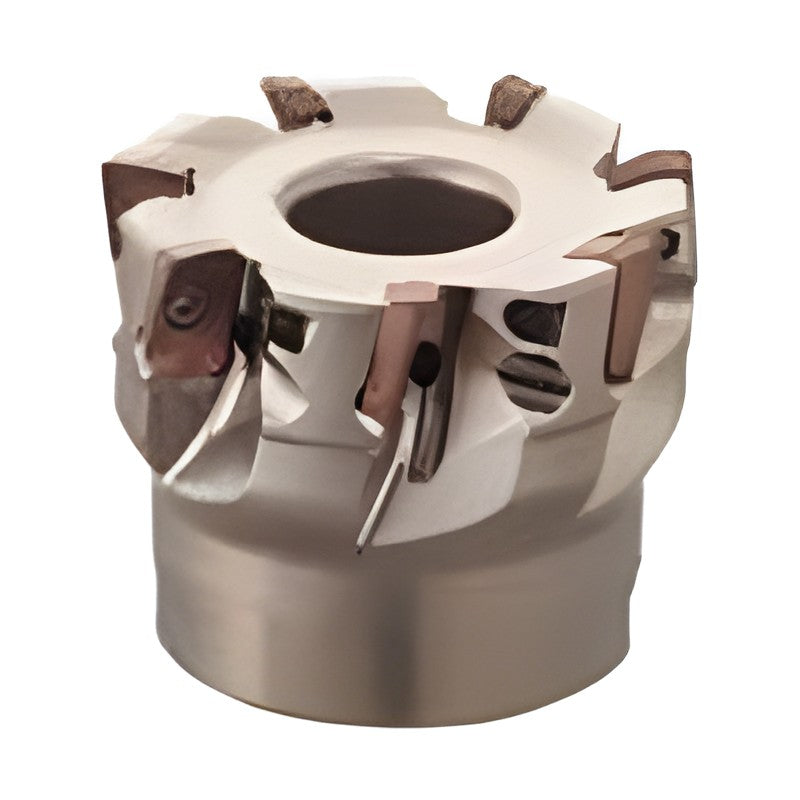

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 11000R(S) Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ11040RS04 DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40(39.7) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.21 | Stock: Yes
WEZ11040RS06 DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40(39.7) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.20 | Stock: Yes
WEZ11050RS05 DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40(39.7) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.32 | Stock: Yes
WEZ11050RS07 DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40(39.7) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.31 | Stock: Yes
WEZ11063RS06 DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40(39.7) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.58 | Stock: Yes
WEZ11063RS08 DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40(39.7) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.57 | Stock: Yes
WEZ11080RS07 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.7) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.08 | Stock: Yes
WEZ11080RS10 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.7) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.07 | Stock: Yes
WEZ11100RS09 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50(49.7) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 9 | Weight (kg): 1.57 | Stock: Yes
WEZ11100RS12 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50(49.7) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 12 | Weight (kg): 1.56 | Stock: Yes
WEZ11080R07 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.7) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.09 | Stock: Yes
WEZ11080R10 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.7) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.08 | Stock: Yes
WEZ11100R09 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63(62.7) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | D3 (mm): 18 | Teeth: 9 | Weight (kg): 2.12 | Stock: Yes
WEZ11100R12 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63(62.7) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | D3 (mm): 18 | Teeth: 12 | Weight (kg): 2.10 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
14 product codes available in this family
