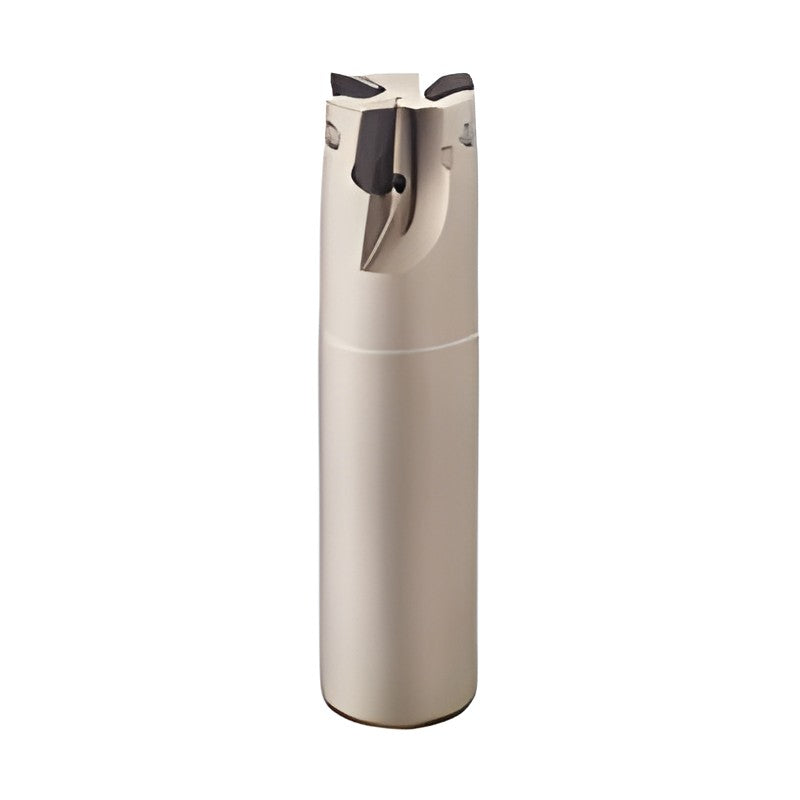

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000E Shank Type Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ17025E02 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.38 | Stock: Yes
WEZ17025E02-20 DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.25 | Stock: Yes
WEZ17028E02 DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.40 | Stock: Yes
WEZ17030E03 DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.43 | Stock: Yes
WEZ17032E02 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 2 | Weight (kg): 0.71 | Stock: Yes
WEZ17032E03 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.69 | Stock: Yes
WEZ17032E03-25 DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.44 | Stock: Yes
WEZ17035E03 DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.72 | Stock: Yes
WEZ17040E03 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 0.81 | Stock: Yes
WEZ17040E04 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 0.79 | Stock: Yes
WEZ17050E03 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 0.93 | Stock: Yes
WEZ17050E03-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 1.41 | Stock: Yes
WEZ17050E05 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 5 | Weight (kg): 0.89 | Stock: Yes
WEZ17050E05-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 5 | Weight (kg): 1.37 | Stock: Yes
WEZ17063E04 DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 1.10 | Stock: Yes
WEZ17063E04-42 DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 1.58 | Stock: Yes
WEZ17063E06 DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 6 | Weight (kg): 1.08 | Stock: Yes
WEZ17063E06-42 DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 6 | Weight (kg): 1.56 | Stock: Yes
WEZ17080E07 DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 7 | Weight (kg): 1.39 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (19)

WEZ17025E02, WEZ17025E02-20, WEZ17028E02, WEZ17030E03, WEZ17032E02, WEZ17032E03, WEZ17032E03-25, WEZ17035E03, WEZ17040E03, WEZ17040E04 + 9 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZ17025E02DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.38 | Stock: Yes
WEZ17025E02-20DC (mm): 25 | DMM shank dia (mm): 20 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.25 | Stock: Yes
WEZ17028E02DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 35(34.3) | LF length (mm): 120(119.3) | Teeth: 2 | Weight (kg): 0.40 | Stock: Yes
WEZ17030E03DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.43 | Stock: Yes
WEZ17032E02DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 2 | Weight (kg): 0.71 | Stock: Yes
WEZ17032E03DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.69 | Stock: Yes
WEZ17032E03-25DC (mm): 32 | DMM shank dia (mm): 25 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.44 | Stock: Yes
WEZ17035E03DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 40(39.3) | LF length (mm): 130(129.3) | Teeth: 3 | Weight (kg): 0.72 | Stock: Yes
WEZ17040E03DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 0.81 | Stock: Yes
WEZ17040E04DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 0.79 | Stock: Yes
WEZ17050E03DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 0.93 | Stock: Yes
WEZ17050E03-42DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 3 | Weight (kg): 1.41 | Stock: Yes
WEZ17050E05DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 5 | Weight (kg): 0.89 | Stock: Yes
WEZ17050E05-42DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 5 | Weight (kg): 1.37 | Stock: Yes
WEZ17063E04DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 1.10 | Stock: Yes
WEZ17063E04-42DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 4 | Weight (kg): 1.58 | Stock: Yes
WEZ17063E06DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 6 | Weight (kg): 1.08 | Stock: Yes
WEZ17063E06-42DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 6 | Weight (kg): 1.56 | Stock: Yes
WEZ17080E07DC (mm): 80 | DMM shank dia (mm): 32 | LH head length (mm): 30(29.3) | LF length (mm): 135(134.3) | Teeth: 7 | Weight (kg): 1.39 | Stock: Yes
