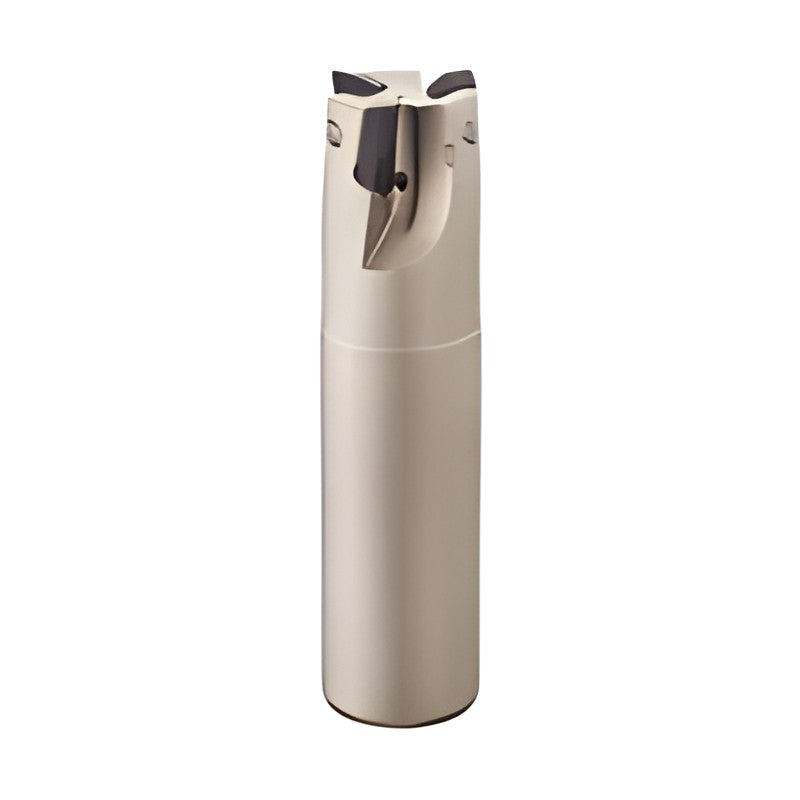

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000EL Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000EL Shank Type Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ17025EL02 DC (mm): 25 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.55 | Stock: Yes
WEZ17028EL02 DC (mm): 28 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.57 | Stock: Yes
WEZ17030EL02 DC (mm): 30 | DMM shank dia (mm): 25 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.59 | Stock: Yes
WEZ17032EL02 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.94 | Stock: Yes
WEZ17032EL02-30 DC (mm): 32 | DMM shank dia (mm): 30 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.85 | Stock: Yes
WEZ17032EL03 DC (mm): 32 | DMM shank dia (mm): 32 | LH head length (mm): 60(59.3) | LF length (mm): 170(169.3) | Teeth: 3 | Weight (kg): 0.92 | Stock: Yes
WEZ17035EL02 DC (mm): 35 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 0.98 | Stock: Yes
WEZ17040EL02 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 2 | Weight (kg): 1.09 | Stock: Yes
WEZ17040EL03 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 3 | Weight (kg): 1.08 | Stock: Yes
WEZ17040EL04 DC (mm): 40 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 4 | Weight (kg): 1.05 | Stock: Yes
WEZ17050EL03 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 3 | Weight (kg): 1.29 | Stock: Yes
WEZ17050EL03-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 3 | Weight (kg): 1.83 | Stock: Yes
WEZ17050EL05 DC (mm): 50 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 5 | Weight (kg): 1.25 | Stock: Yes
WEZ17050EL05-42 DC (mm): 50 | DMM shank dia (mm): 42 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 5 | Weight (kg): 1.79 | Stock: Yes
WEZ17063EL04 DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 4 | Weight (kg): 1.61 | Stock: Yes
WEZ17063EL04-42 DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 4 | Weight (kg): 2.16 | Stock: Yes
WEZ17063EL06 DC (mm): 63 | DMM shank dia (mm): 32 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 6 | Weight (kg): 1.58 | Stock: Yes
WEZ17063EL06-42 DC (mm): 63 | DMM shank dia (mm): 42 | LH head length (mm): 50(49.3) | LF length (mm): 170(169.3) | Teeth: 6 | Weight (kg): 2.13 | Stock: Yes
