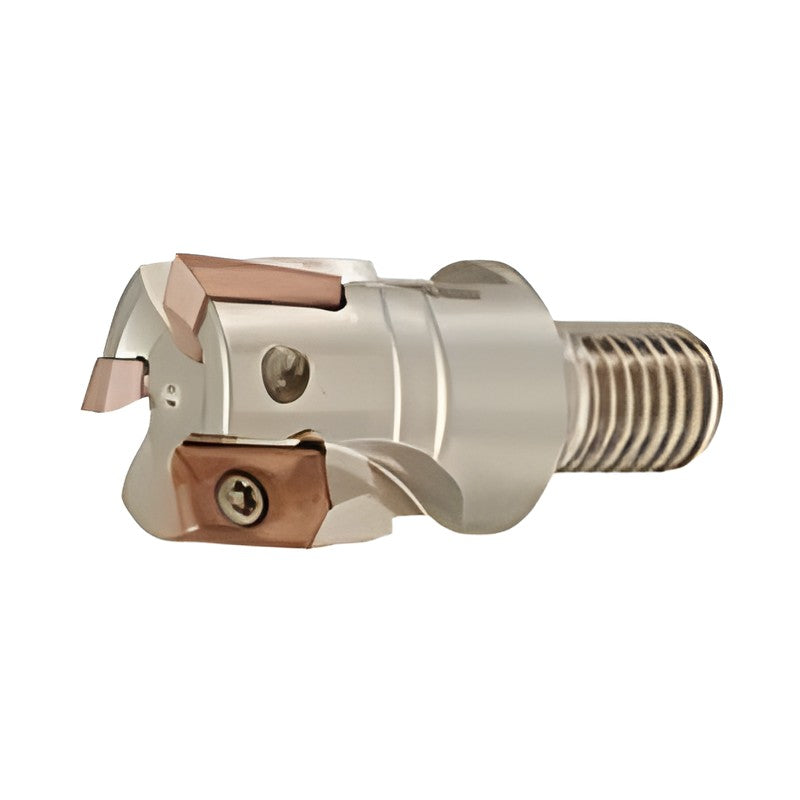

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000M Modular Head

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000M Modular Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
WEZ17025M12Z2 Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.08 | Stock: Yes
WEZ17025M12Z3 Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.07 | Stock: Yes
WEZ17028M12Z2 Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.10 | Stock: Yes
WEZ17030M16Z2 Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.17 | Stock: Yes
WEZ17030M16Z3 Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.15 | Stock: Yes
WEZ17032M16Z2 Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEZ17032M16Z3 Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.16 | Stock: Yes
WEZ17032M16Z4 Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.14 | Stock: Yes
WEZ17035M16Z2 Cutting dia DC (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.21 | Stock: Yes
WEZ17035M16Z3 Cutting dia DC (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.19 | Stock: Yes
WEZ17040M16Z2 Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.25 | Stock: Yes
WEZ17040M16Z3 Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEZ17040M16Z4 Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.21 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000M Modular Head

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (13)

WEZ17025M12Z2, WEZ17025M12Z3, WEZ17028M12Z2, WEZ17030M16Z2, WEZ17030M16Z3, WEZ17032M16Z2, WEZ17032M16Z3, WEZ17032M16Z4, WEZ17035M16Z2, WEZ17035M16Z3 + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZ17025M12Z2Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.08 | Stock: Yes
WEZ17025M12Z3Cutting dia DC (mm): 25 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.07 | Stock: Yes
WEZ17028M12Z2Cutting dia DC (mm): 28 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56(55.3) | Effective length LF (mm): 35(34.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 2 | Weight (kg): 0.10 | Stock: Yes
WEZ17030M16Z2Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.17 | Stock: Yes
WEZ17030M16Z3Cutting dia DC (mm): 30 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.15 | Stock: Yes
WEZ17032M16Z2Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.19 | Stock: Yes
WEZ17032M16Z3Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.16 | Stock: Yes
WEZ17032M16Z4Cutting dia DC (mm): 32 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.14 | Stock: Yes
WEZ17035M16Z2Cutting dia DC (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.21 | Stock: Yes
WEZ17035M16Z3Cutting dia DC (mm): 35 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.19 | Stock: Yes
WEZ17040M16Z2Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 2 | Weight (kg): 0.25 | Stock: Yes
WEZ17040M16Z3Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.23 | Stock: Yes
WEZ17040M16Z4Cutting dia DC (mm): 40 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17 | Connection thread CRKS: M16 | Overall length OAL (mm): 63(62.3) | Effective length LF (mm): 40(39.3) | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 4 | Weight (kg): 0.21 | Stock: Yes
