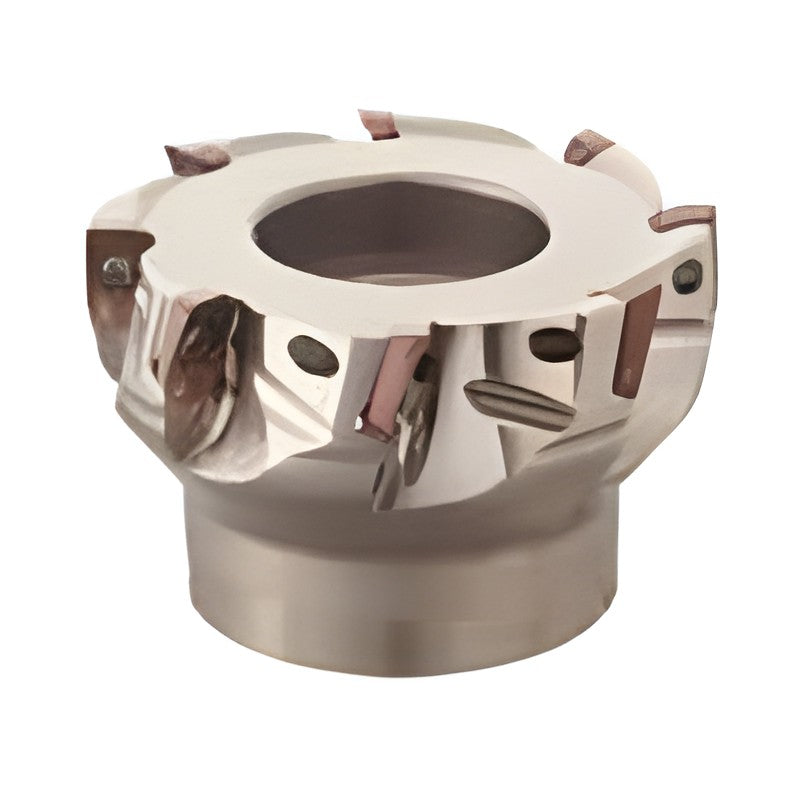

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000R(S) Milling Cutter

Indexable shoulder (corner) milling cutter using AOMT/AOET 11T3 or 1705 inserts; optimized edge design and high-precision body give excellent wall accuracy and surface finish with low cutting resistance.

Key features

  • Excellent wall accuracy and surface finish
  • Low cutting resistance, reduced noise and burr formation
  • Ground-class inserts for sharp cutting available
  • Universal grade ACU2500 for steel, cast iron, stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WEZ17040RS03 DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40(39.3) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 3 | Weight (kg): 0.19 | Stock: Yes
WEZ17040RS04 DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40(39.3) | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.16 | Stock: Yes
WEZ17050RS03 DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40(39.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.30 | Stock: Yes
WEZ17050RS05 DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40(39.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.26 | Stock: Yes
WEZ17063RS04 DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40(39.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.54 | Stock: Yes
WEZ17063RS06 DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40(39.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.51 | Stock: Yes
WEZ17080RS04 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 1.10 | Stock: Yes
WEZ17080RS07 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.05 | Stock: Yes
WEZ17100RS05 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50(49.3) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.58 | Stock: Yes
WEZ17100RS08 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50(49.3) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 8 | Weight (kg): 1.57 | Stock: Yes
WEZ17125RS06 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 6 | Weight (kg): 3.04 | Stock: Yes
WEZ17125RS09 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 9 | Weight (kg): 3.07 | Stock: Yes
WEZ17125RS11 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 52 | D2 (mm): 29 | Teeth: 11 | Weight (kg): 3.02 | Stock: Yes
WEZ17160RS08 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 90 | Teeth: 8 | Weight (kg): 5.24 | Stock: Yes
WEZ17160RS10 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 90 | Teeth: 10 | Weight (kg): 5.31 | Stock: Yes
WEZ17160RS12 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 40 | KWW keyway width (mm): 16.4 | KDP keyway depth (mm): 9 | CBDP mounting depth (mm): 29 | D1 (mm): 90 | Teeth: 12 | Weight (kg): 5.26 | Stock: Yes
WEZ17080R04 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.3) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 1.10 | Stock: Yes
WEZ17080R07 DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50(49.3) | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 7 | Weight (kg): 1.06 | Stock: Yes
WEZ17100R05 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63(62.3) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | D3 (mm): 18 | Teeth: 5 | Weight (kg): 2.08 | Stock: Yes
WEZ17100R08 DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63(62.3) | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | D3 (mm): 18 | Teeth: 8 | Weight (kg): 2.07 | Stock: Yes
WEZ17125R06 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 6 | Weight (kg): 3.09 | Stock: Yes
WEZ17125R09 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 9 | Weight (kg): 3.11 | Stock: Yes
WEZ17125R11 DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63(62.3) | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 11 | Weight (kg): 3.06 | Stock: Yes
WEZ17160R08 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 5.04 | Stock: Yes
WEZ17160R10 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 10 | Weight (kg): 5.09 | Stock: Yes
WEZ17160R12 DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63(62.3) | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 12 | Weight (kg): 5.04 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZ 17000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (26)

WEZ17040RS03, WEZ17040RS04, WEZ17050RS03, WEZ17050RS05, WEZ17063RS04, WEZ17063RS06, WEZ17080RS04, WEZ17080RS07, WEZ17100RS05, WEZ17100RS08 + 16 more — see full table ↓
