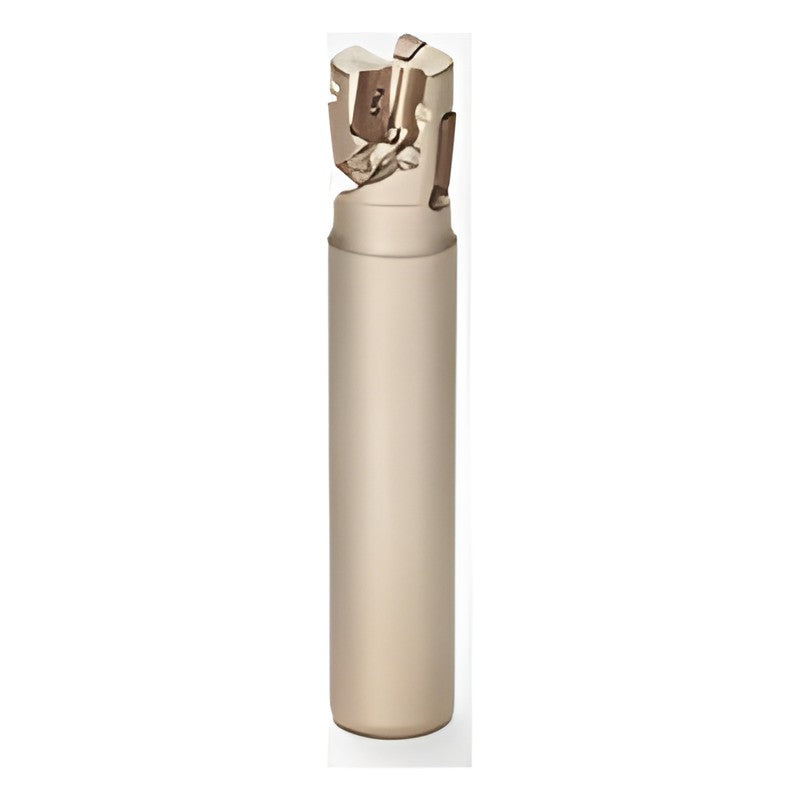

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 11000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 11000E Shank Type Milling Cutter

Long-edge (repeater) shoulder milling cutter with multi-stage AOMT/AOET inserts of the WEZ type for high-efficiency deep shoulder milling.

Key features

  • Multi-stage insert arrangement for deep shoulder milling
  • Sharp inserts and unequal-pitch body suppress vibration
  • Flute shape combining rigidity and chip evacuation
  • Grade line-up including universal ACU2500

Specifications

Insert Not included (sold separately)
WEZR11020E1920Z02 DC (mm): 20 | APMX max depth of cut (mm): 19(18) | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Total inserts: 4 | Tiers: 2 | Effective teeth: 2 | Weight (kg): 0.22 | Stock: Yes
WEZR11020E3620Z01 DC (mm): 20 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 20 | LH head length (mm): 45(44.7) | LF length (mm): 125(124.7) | Total inserts: 4 | Tiers: 4 | Effective teeth: 1 | Weight (kg): 0.24 | Stock: Yes
WEZR11025E2725Z02 DC (mm): 25 | APMX max depth of cut (mm): 27(26) | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Total inserts: 6 | Tiers: 3 | Effective teeth: 2 | Weight (kg): 0.41 | Stock: Yes
WEZR11025E3625Z02 DC (mm): 25 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.42 | Stock: Yes
WEZR11030E5325Z02 DC (mm): 30 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 25 | LH head length (mm): 65(64.7) | LF length (mm): 155(154.7) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 0.52 | Stock: Yes
WEZR11032E3632Z02 DC (mm): 32 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 32 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.74 | Stock: Yes
WEZR11032E3632Z03 DC (mm): 32 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 32 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 0.71 | Stock: Yes
WEZR11032E5332Z02 DC (mm): 32 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 32 | LH head length (mm): 70(69.7) | LF length (mm): 160(159.7) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 0.90 | Stock: Yes
WEZR11035E5332Z03 DC (mm): 35 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 32 | LH head length (mm): 65(64.7) | LF length (mm): 155(154.7) | Total inserts: 18 | Tiers: 6 | Effective teeth: 3 | Weight (kg): 0.88 | Stock: Yes
WEZR11040E4432Z03 DC (mm): 40 | APMX max depth of cut (mm): 44(43) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 150(149.7) | Total inserts: 15 | Tiers: 5 | Effective teeth: 3 | Weight (kg): 0.87 | Stock: Yes
WEZR11040E4432Z04 DC (mm): 40 | APMX max depth of cut (mm): 44(43) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 150(149.7) | Total inserts: 20 | Tiers: 5 | Effective teeth: 4 | Weight (kg): 0.85 | Stock: Yes
WEZR11040E6132Z03 DC (mm): 40 | APMX max depth of cut (mm): 61(60) | DMM shank dia (mm): 32 | LH head length (mm): 75(74.7) | LF length (mm): 165(164.7) | Total inserts: 21 | Tiers: 7 | Effective teeth: 3 | Weight (kg): 0.95 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 11000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

WEZR11020E1920Z02, WEZR11020E3620Z01, WEZR11025E2725Z02, WEZR11025E3625Z02, WEZR11030E5325Z02, WEZR11032E3632Z02, WEZR11032E3632Z03, WEZR11032E5332Z02, WEZR11035E5332Z03, WEZR11040E4432Z03 + 2 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZR11020E1920Z02DC (mm): 20 | APMX max depth of cut (mm): 19(18) | DMM shank dia (mm): 20 | LH head length (mm): 30(29.7) | LF length (mm): 110(109.7) | Total inserts: 4 | Tiers: 2 | Effective teeth: 2 | Weight (kg): 0.22 | Stock: Yes
WEZR11020E3620Z01DC (mm): 20 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 20 | LH head length (mm): 45(44.7) | LF length (mm): 125(124.7) | Total inserts: 4 | Tiers: 4 | Effective teeth: 1 | Weight (kg): 0.24 | Stock: Yes
WEZR11025E2725Z02DC (mm): 25 | APMX max depth of cut (mm): 27(26) | DMM shank dia (mm): 25 | LH head length (mm): 40(39.7) | LF length (mm): 130(129.7) | Total inserts: 6 | Tiers: 3 | Effective teeth: 2 | Weight (kg): 0.41 | Stock: Yes
WEZR11025E3625Z02DC (mm): 25 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 25 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.42 | Stock: Yes
WEZR11030E5325Z02DC (mm): 30 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 25 | LH head length (mm): 65(64.7) | LF length (mm): 155(154.7) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 0.52 | Stock: Yes
WEZR11032E3632Z02DC (mm): 32 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 32 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.74 | Stock: Yes
WEZR11032E3632Z03DC (mm): 32 | APMX max depth of cut (mm): 36(35) | DMM shank dia (mm): 32 | LH head length (mm): 50(49.7) | LF length (mm): 140(139.7) | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 0.71 | Stock: Yes
WEZR11032E5332Z02DC (mm): 32 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 32 | LH head length (mm): 70(69.7) | LF length (mm): 160(159.7) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 0.90 | Stock: Yes
WEZR11035E5332Z03DC (mm): 35 | APMX max depth of cut (mm): 53(52) | DMM shank dia (mm): 32 | LH head length (mm): 65(64.7) | LF length (mm): 155(154.7) | Total inserts: 18 | Tiers: 6 | Effective teeth: 3 | Weight (kg): 0.88 | Stock: Yes
WEZR11040E4432Z03DC (mm): 40 | APMX max depth of cut (mm): 44(43) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 150(149.7) | Total inserts: 15 | Tiers: 5 | Effective teeth: 3 | Weight (kg): 0.87 | Stock: Yes
WEZR11040E4432Z04DC (mm): 40 | APMX max depth of cut (mm): 44(43) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.7) | LF length (mm): 150(149.7) | Total inserts: 20 | Tiers: 5 | Effective teeth: 4 | Weight (kg): 0.85 | Stock: Yes
WEZR11040E6132Z03DC (mm): 40 | APMX max depth of cut (mm): 61(60) | DMM shank dia (mm): 32 | LH head length (mm): 75(74.7) | LF length (mm): 165(164.7) | Total inserts: 21 | Tiers: 7 | Effective teeth: 3 | Weight (kg): 0.95 | Stock: Yes
