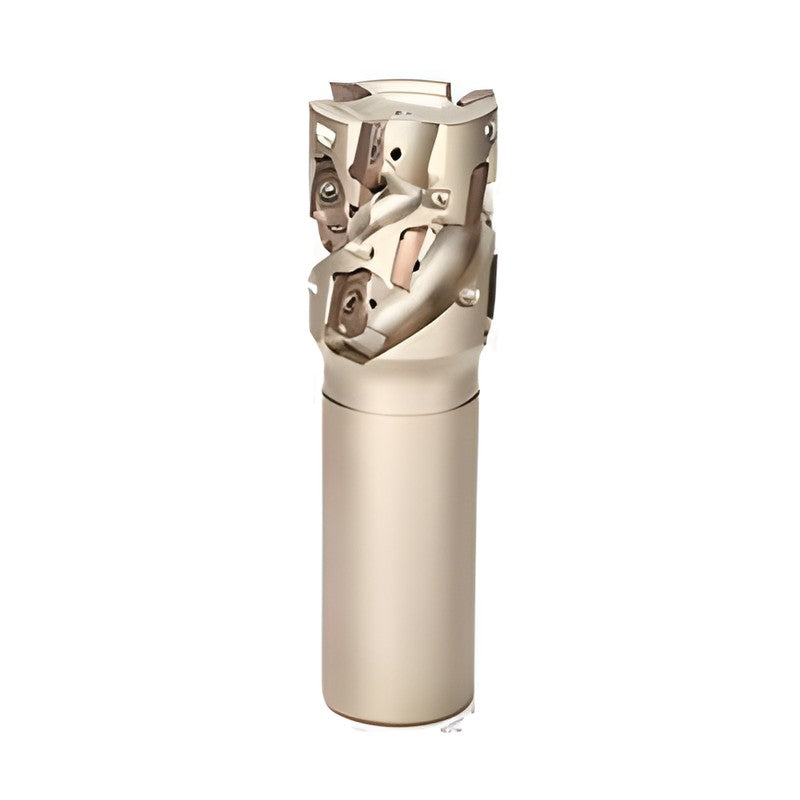

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000E Shank Type Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000E Shank Type Milling Cutter

Long-edge (repeater) shoulder milling cutter with multi-stage AOMT/AOET inserts of the WEZ type for high-efficiency deep shoulder milling.

Key features

  • Multi-stage insert arrangement for deep shoulder milling
  • Sharp inserts and unequal-pitch body suppress vibration
  • Flute shape combining rigidity and chip evacuation
  • Grade line-up including universal ACU2500

Specifications

Insert Not included (sold separately)
WEZR17040E2932Z03 DC (mm): 40 | APMX max depth of cut (mm): 29(28) | DMM shank dia (mm): 32 | LH head length (mm): 45(44.3) | LF length (mm): 135(134.3) | Total inserts: 6 | Tiers: 2 | Effective teeth: 3 | Weight (kg): 0.75 | Stock: Yes
WEZR17040E4332Z02 DC (mm): 40 | APMX max depth of cut (mm): 43(42) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.3) | LF length (mm): 150(149.3) | Total inserts: 6 | Tiers: 3 | Effective teeth: 2 | Weight (kg): 0.86 | Stock: Yes
WEZR17050E5742Z03 DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DMM shank dia (mm): 42 | LH head length (mm): 75(74.3) | LF length (mm): 165(164.3) | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 1.58 | Stock: Yes
WEZR17050E8442Z02 DC (mm): 50 | APMX max depth of cut (mm): 84(83) | DMM shank dia (mm): 42 | LH head length (mm): 105(104.3) | LF length (mm): 195(194.3) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 1.94 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

WEZR17040E2932Z03, WEZR17040E4332Z02, WEZR17050E5742Z03, WEZR17050E8442Z02

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZR17040E2932Z03DC (mm): 40 | APMX max depth of cut (mm): 29(28) | DMM shank dia (mm): 32 | LH head length (mm): 45(44.3) | LF length (mm): 135(134.3) | Total inserts: 6 | Tiers: 2 | Effective teeth: 3 | Weight (kg): 0.75 | Stock: Yes
WEZR17040E4332Z02DC (mm): 40 | APMX max depth of cut (mm): 43(42) | DMM shank dia (mm): 32 | LH head length (mm): 60(59.3) | LF length (mm): 150(149.3) | Total inserts: 6 | Tiers: 3 | Effective teeth: 2 | Weight (kg): 0.86 | Stock: Yes
WEZR17050E5742Z03DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DMM shank dia (mm): 42 | LH head length (mm): 75(74.3) | LF length (mm): 165(164.3) | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 1.58 | Stock: Yes
WEZR17050E8442Z02DC (mm): 50 | APMX max depth of cut (mm): 84(83) | DMM shank dia (mm): 42 | LH head length (mm): 105(104.3) | LF length (mm): 195(194.3) | Total inserts: 12 | Tiers: 6 | Effective teeth: 2 | Weight (kg): 1.94 | Stock: Yes
