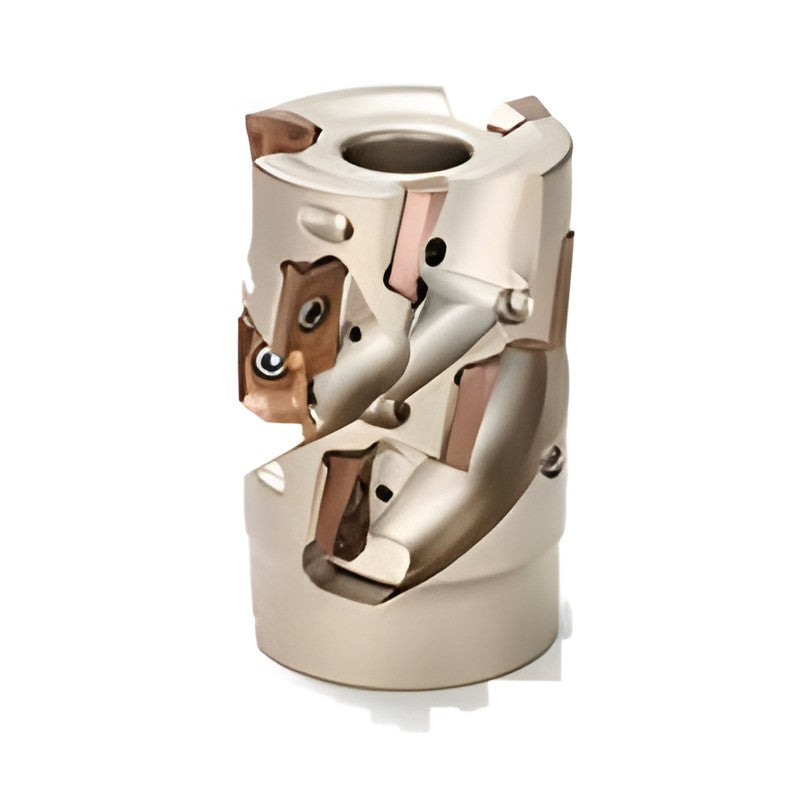

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000RS Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000RS Milling Cutter

Long-edge (repeater) shoulder milling cutter with multi-stage AOMT/AOET inserts of the WEZ type for high-efficiency deep shoulder milling.

Key features

  • Multi-stage insert arrangement for deep shoulder milling
  • Sharp inserts and unequal-pitch body suppress vibration
  • Flute shape combining rigidity and chip evacuation
  • Grade line-up including universal ACU2500

Specifications

Insert Not included (sold separately)
WEZR17050RS2922Z04 DC (mm): 50 | APMX max depth of cut (mm): 29(28) | DCSFMS boss dia (mm): 47 | LF length (mm): 50(49.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 8 | Tiers: 2 | Effective teeth: 4 | Weight (kg): 0.35 | Stock: Yes
WEZR17050RS5722Z02 DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 47 | LF length (mm): 80(79.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.70 | Stock: Yes
WEZR17050RS5722Z03 DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 47 | LF length (mm): 80(79.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 0.59 | Stock: Yes
WEZR17063RS2927Z05 DC (mm): 63 | APMX max depth of cut (mm): 29(28) | DCSFMS boss dia (mm): 60 | LF length (mm): 55(54.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 10 | Tiers: 2 | Effective teeth: 5 | Weight (kg): 0.74 | Stock: Yes
WEZR17063RS5727Z03 DC (mm): 63 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 60 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 1.11 | Stock: Yes
WEZR17063RS5727Z04 DC (mm): 63 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 60 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 16 | Tiers: 4 | Effective teeth: 4 | Weight (kg): 1.05 | Stock: Yes
WEZR17080RS5627Z05 DC (mm): 80 | APMX max depth of cut (mm): 56(55) | DCSFMS boss dia (mm): 70 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 20 | Tiers: 4 | Effective teeth: 5 | Weight (kg): 1.85 | Stock: Yes
WEZR17080RS5632Z05 DC (mm): 80 | APMX max depth of cut (mm): 56(55) | DCSFMS boss dia (mm): 70 | LF length (mm): 80(79.3) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 26 | Total inserts: 20 | Tiers: 4 | Effective teeth: 5 | Weight (kg): 1.76 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WEZR 17000RS Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (8)

WEZR17050RS2922Z04, WEZR17050RS5722Z02, WEZR17050RS5722Z03, WEZR17063RS2927Z05, WEZR17063RS5727Z03, WEZR17063RS5727Z04, WEZR17080RS5627Z05, WEZR17080RS5632Z05

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WEZR17050RS2922Z04DC (mm): 50 | APMX max depth of cut (mm): 29(28) | DCSFMS boss dia (mm): 47 | LF length (mm): 50(49.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 8 | Tiers: 2 | Effective teeth: 4 | Weight (kg): 0.35 | Stock: Yes
WEZR17050RS5722Z02DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 47 | LF length (mm): 80(79.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 8 | Tiers: 4 | Effective teeth: 2 | Weight (kg): 0.70 | Stock: Yes
WEZR17050RS5722Z03DC (mm): 50 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 47 | LF length (mm): 80(79.3) | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 0.59 | Stock: Yes
WEZR17063RS2927Z05DC (mm): 63 | APMX max depth of cut (mm): 29(28) | DCSFMS boss dia (mm): 60 | LF length (mm): 55(54.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 10 | Tiers: 2 | Effective teeth: 5 | Weight (kg): 0.74 | Stock: Yes
WEZR17063RS5727Z03DC (mm): 63 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 60 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 12 | Tiers: 4 | Effective teeth: 3 | Weight (kg): 1.11 | Stock: Yes
WEZR17063RS5727Z04DC (mm): 63 | APMX max depth of cut (mm): 57(56) | DCSFMS boss dia (mm): 60 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 16 | Tiers: 4 | Effective teeth: 4 | Weight (kg): 1.05 | Stock: Yes
WEZR17080RS5627Z05DC (mm): 80 | APMX max depth of cut (mm): 56(55) | DCSFMS boss dia (mm): 70 | LF length (mm): 80(79.3) | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | Total inserts: 20 | Tiers: 4 | Effective teeth: 5 | Weight (kg): 1.85 | Stock: Yes
WEZR17080RS5632Z05DC (mm): 80 | APMX max depth of cut (mm): 56(55) | DCSFMS boss dia (mm): 70 | LF length (mm): 80(79.3) | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 26 | Total inserts: 20 | Tiers: 4 | Effective teeth: 5 | Weight (kg): 1.76 | Stock: Yes
