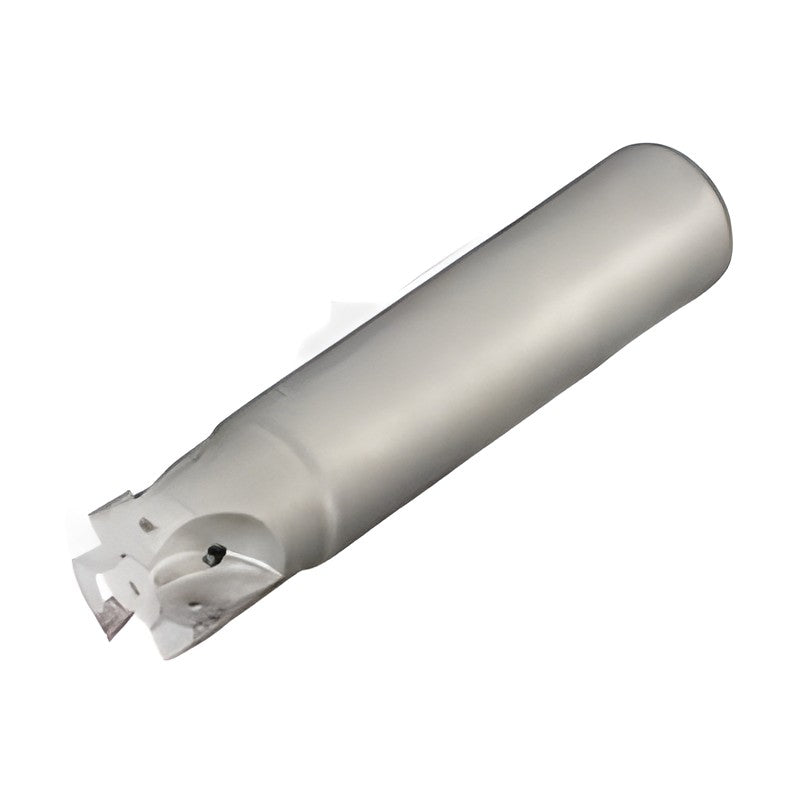

Sumitomo Electric Hardmetal SEC-Wave Mill WFX 08000E Shank Type Milling Cutter

Indexable shoulder milling cutter using screw-clamped SOMT/SOET 0803 or 1204 inserts with 4 usable corners, giving good wall accuracy in corner milling.

Key features

4 usable corners per insert
Convex cutting edge secures edge strength
Flat edge reduces steps in wall machining
Wiper function improves surface finish
New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert	Not included (sold separately)

WFX08020E-16		DC (mm): 20 \| DMM shank dia (mm): 16 \| LH head length (mm): 30 \| LF length (mm): 110 \| Teeth: 2 \| Stock: Yes
WFX08020E		DC (mm): 20 \| DMM shank dia (mm): 20 \| LH head length (mm): 30 \| LF length (mm): 110 \| Teeth: 2 \| Stock: Yes
WFX08022E		DC (mm): 22 \| DMM shank dia (mm): 20 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 2 \| Stock: Yes
WFX08025E-20		DC (mm): 25 \| DMM shank dia (mm): 20 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 2 \| Stock: Yes
WFX08025E		DC (mm): 25 \| DMM shank dia (mm): 25 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 2 \| Stock: Yes
WFX08028E		DC (mm): 28 \| DMM shank dia (mm): 25 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 2 \| Stock: Yes
WFX08030E		DC (mm): 30 \| DMM shank dia (mm): 25 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 3 \| Stock: Yes
WFX08032E		DC (mm): 32 \| DMM shank dia (mm): 32 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 3 \| Stock: Yes
WFX08033E		DC (mm): 33 \| DMM shank dia (mm): 32 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 3 \| Stock: Yes
WFX08040E		DC (mm): 40 \| DMM shank dia (mm): 32 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 3 \| Stock: Yes
WFX08050E		DC (mm): 50 \| DMM shank dia (mm): 32 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 4 \| Stock: Yes
WFX08063E		DC (mm): 63 \| DMM shank dia (mm): 32 \| LH head length (mm): 30 \| LF length (mm): 120 \| Teeth: 5 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFX 08000E Shank Type Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (12)

WFX08020E-16, WFX08020E, WFX08022E, WFX08025E-20, WFX08025E, WFX08028E, WFX08030E, WFX08032E, WFX08033E, WFX08040E + 2 more — see full table ↓
