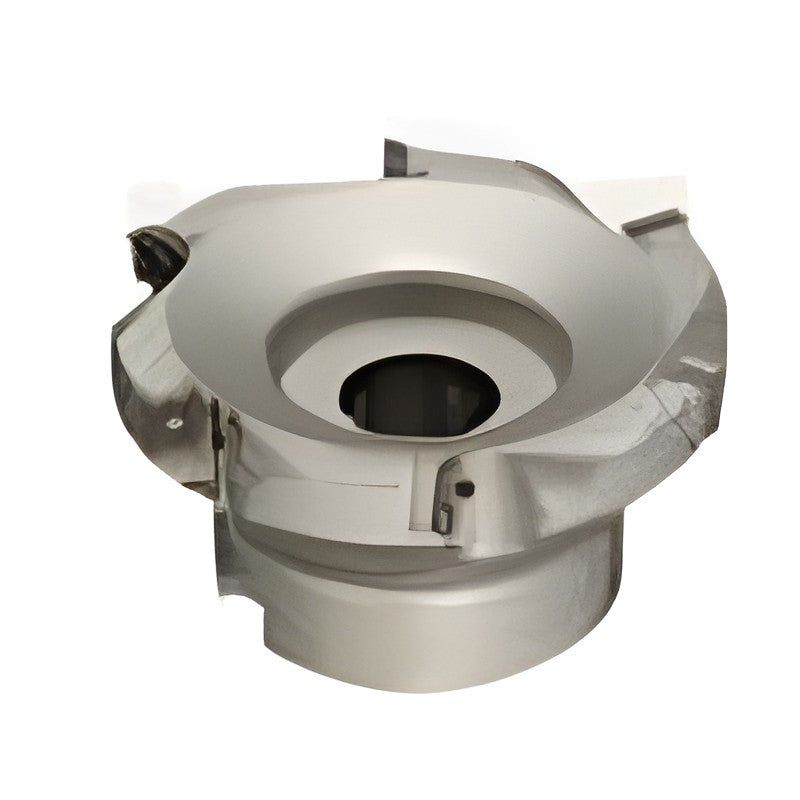

Sumitomo Electric Hardmetal SEC-Wave Mill WFX 12000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFX 12000R(S) Milling Cutter

Indexable shoulder milling cutter using screw-clamped SOMT/SOET 0803 or 1204 inserts with 4 usable corners, giving good wall accuracy in corner milling.

Key features

  • 4 usable corners per insert
  • Convex cutting edge secures edge strength
  • Flat edge reduces steps in wall machining
  • Wiper function improves surface finish
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
WFX12050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
WFX12063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
WFX12080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
WFX12100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.3 | Stock: Yes
WFX12080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
WFX12100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 5 | Weight (kg): 1.7 | Stock: Yes
WFX12125R DC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.4 | Stock: Yes
WFX12160R DC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 3.6 | Stock: Yes
WFX12200R DC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 6.8 | Stock: Yes
WFX12250R DC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 12 | Weight (kg): 9.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFX 12000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

WFX12050RS, WFX12063RS, WFX12080RS, WFX12100RS, WFX12080R, WFX12100R, WFX12125R, WFX12160R, WFX12200R, WFX12250R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFX12050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 3 | Weight (kg): 0.3 | Stock: Yes
WFX12063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.5 | Stock: Yes
WFX12080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
WFX12100RSDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 5 | Weight (kg): 1.3 | Stock: Yes
WFX12080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 4 | Weight (kg): 0.9 | Stock: Yes
WFX12100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 5 | Weight (kg): 1.7 | Stock: Yes
WFX12125RDC (mm): 125 | DCSFMS boss dia (mm): 80 | LF length (mm): 63 | DCB bore dia (mm): 38.1 | KWW keyway width (mm): 15.9 | KDP keyway depth (mm): 10 | CBDP mounting depth (mm): 35.5 | D1 (mm): 55 | D2 (mm): 30 | Teeth: 6 | Weight (kg): 2.4 | Stock: Yes
WFX12160RDC (mm): 160 | DCSFMS boss dia (mm): 100 | LF length (mm): 63 | DCB bore dia (mm): 50.8 | KWW keyway width (mm): 19.1 | KDP keyway depth (mm): 11 | CBDP mounting depth (mm): 38 | D1 (mm): 72 | Teeth: 8 | Weight (kg): 3.6 | Stock: Yes
WFX12200RDC (mm): 200 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 135 | Teeth: 10 | Weight (kg): 6.8 | Stock: Yes
WFX12250RDC (mm): 250 | DCSFMS boss dia (mm): 130 | LF length (mm): 63 | DCB bore dia (mm): 47.625 | KWW keyway width (mm): 25.4 | KDP keyway depth (mm): 14 | CBDP mounting depth (mm): 35 | D1 (mm): 160 | Teeth: 12 | Weight (kg): 9.5 | Stock: Yes
