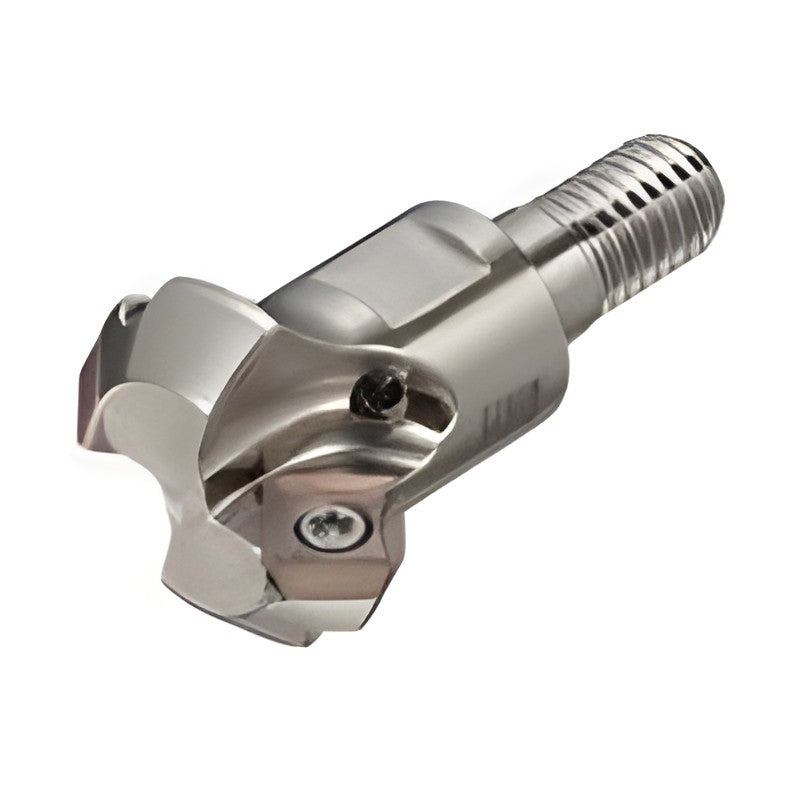

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 08000M/12000M Modular Chamfering Head

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 08000M/12000M Modular Chamfering Head

Exchangeable head of the SEC-Modular Tool system, screw-mounted on carbide, steel or BBT integrated arbors.

Key features

  • Screw-mounted exchangeable head
  • Combines with carbide, steel or BBT30 integrated arbors
WFXC08016M08Z2 Min machining dia DC1 (mm): 16 | Max cutting dia DCX (mm): 25.5 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
WFXC12025M12Z3 Min machining dia DC1 (mm): 25 | Max cutting dia DCX (mm): 41.0 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 32 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
WFXC12032M16Z3 Min machining dia DC1 (mm): 32 | Max cutting dia DCX (mm): 48.0 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
Chamfer ToolsSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 08000M/12000M Modular Chamfering Head

Brand Sumitomo Electric Hardmetal·Chamfer Tools

Available part numbers (3)

WFXC08016M08Z2, WFXC12025M12Z3, WFXC12032M16Z3

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXC08016M08Z2Min machining dia DC1 (mm): 16 | Max cutting dia DCX (mm): 25.5 | Boss dia DCSFMS (mm): 14.5 | Connection dia DCON (mm): 8.5 | Connection thread CRKS: M8 | Overall length OAL (mm): 42 | Effective length LF (mm): 25 | Length LS2 (mm): 5 | Flat length L11 (mm): 8 | Width across flats H (mm): 13 | Teeth: 2 | Weight (kg): 0.1 | Stock: Yes
WFXC12025M12Z3Min machining dia DC1 (mm): 25 | Max cutting dia DCX (mm): 41.0 | Boss dia DCSFMS (mm): 23.0 | Connection dia DCON (mm): 12.5 | Connection thread CRKS: M12 | Overall length OAL (mm): 56 | Effective length LF (mm): 32 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 19 | Teeth: 3 | Weight (kg): 0.1 | Stock: Yes
WFXC12032M16Z3Min machining dia DC1 (mm): 32 | Max cutting dia DCX (mm): 48.0 | Boss dia DCSFMS (mm): 28.5 | Connection dia DCON (mm): 17.0 | Connection thread CRKS: M16 | Overall length OAL (mm): 63 | Effective length LF (mm): 40 | Length LS2 (mm): 5 | Flat length L11 (mm): 10 | Width across flats H (mm): 24 | Teeth: 3 | Weight (kg): 0.2 | Stock: Yes
