• Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 12000E Chamfering Cutter
1 1

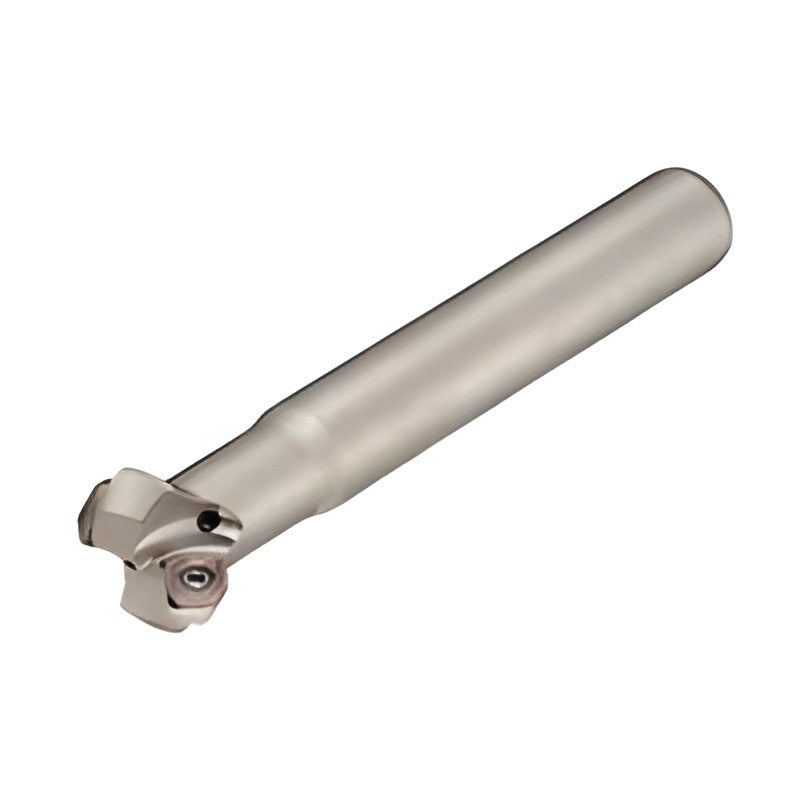

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 12000E Chamfering Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 12000E Chamfering Cutter

Chamfering tool of the SEC-Wave Mill series using WFX-series inserts; the chamfering range depends on the insert corner radius.

WFXC12025E Min machining dia DC1 (mm): 25 | Max cutting dia DCX (mm): 41 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.6 | Stock: Yes
WFXC12032E Min machining dia DC1 (mm): 32 | Max cutting dia DCX (mm): 48 | Shank dia DMM (mm): 32 | Head length LH (mm): 40 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
Chamfer ToolsSumitomo Electric Hardmetal
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXC 12000E Chamfering Cutter

Brand Sumitomo Electric Hardmetal·Chamfer Tools

Available part numbers (2)

WFXC12025E, WFXC12032E

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXC12025EMin machining dia DC1 (mm): 25 | Max cutting dia DCX (mm): 41 | Shank dia DMM (mm): 25 | Head length LH (mm): 40 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 0.6 | Stock: Yes
WFXC12032EMin machining dia DC1 (mm): 32 | Max cutting dia DCX (mm): 48 | Shank dia DMM (mm): 32 | Head length LH (mm): 40 | Overall length LF (mm): 150 | Teeth: 3 | Weight (kg): 1.0 | Stock: Yes
