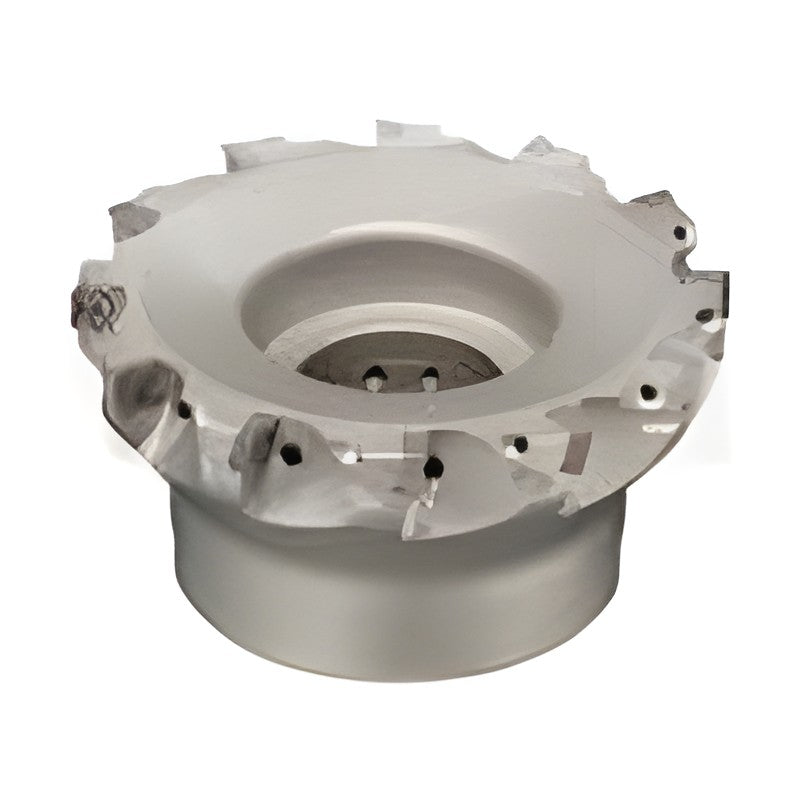

Sumitomo Electric Hardmetal SEC-Wave Mill WFXF 08000R(S) Milling Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFXF 08000R(S) Milling Cutter

Indexable shoulder milling cutter using screw-clamped SOMT/SOET 0803 or 1204 inserts with 4 usable corners, giving good wall accuracy in corner milling (extra-fine pitch version).

Key features

  • 4 usable corners per insert
  • Convex cutting edge secures edge strength
  • Flat edge reduces steps in wall machining
  • Wiper function improves surface finish
  • New ACS grades for stainless steel and difficult-to-cut materials

Specifications

Insert Not included (sold separately)
Pitch Extra-fine pitch
WFXF08040RS DC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.2 | Stock: Yes
WFXF08050RS DC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.3 | Stock: Yes
WFXF08063RS DC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.5 | Stock: Yes
WFXF08080RS DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 0.9 | Stock: Yes
WFXF08100RS DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 12 | Weight (kg): 1.4 | Stock: Yes
WFXF08080R DC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
WFXF08100R DC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXF 08000R(S) Milling Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

WFXF08040RS, WFXF08050RS, WFXF08063RS, WFXF08080RS, WFXF08100RS, WFXF08080R, WFXF08100R

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXF08040RSDC (mm): 40 | DCSFMS boss dia (mm): 33 | LF length (mm): 40 | DCB bore dia (mm): 16 | KWW keyway width (mm): 8.4 | KDP keyway depth (mm): 5.6 | CBDP mounting depth (mm): 18 | D1 (mm): 14 | D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.2 | Stock: Yes
WFXF08050RSDC (mm): 50 | DCSFMS boss dia (mm): 41 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 7 | Weight (kg): 0.3 | Stock: Yes
WFXF08063RSDC (mm): 63 | DCSFMS boss dia (mm): 50 | LF length (mm): 40 | DCB bore dia (mm): 22 | KWW keyway width (mm): 10.4 | KDP keyway depth (mm): 6.3 | CBDP mounting depth (mm): 20 | D1 (mm): 18 | D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.5 | Stock: Yes
WFXF08080RSDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 27 | KWW keyway width (mm): 12.4 | KDP keyway depth (mm): 7 | CBDP mounting depth (mm): 22 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 0.9 | Stock: Yes
WFXF08100RSDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 50 | DCB bore dia (mm): 32 | KWW keyway width (mm): 14.4 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | Teeth: 12 | Weight (kg): 1.4 | Stock: Yes
WFXF08080RDC (mm): 80 | DCSFMS boss dia (mm): 55 | LF length (mm): 50 | DCB bore dia (mm): 25.4 | KWW keyway width (mm): 9.5 | KDP keyway depth (mm): 6 | CBDP mounting depth (mm): 25 | D1 (mm): 20 | D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
WFXF08100RDC (mm): 100 | DCSFMS boss dia (mm): 70 | LF length (mm): 63 | DCB bore dia (mm): 31.75 | KWW keyway width (mm): 12.7 | KDP keyway depth (mm): 8 | CBDP mounting depth (mm): 32 | D1 (mm): 46 | D2 (mm): 27 | Teeth: 12 | Weight (kg): 1.9 | Stock: Yes
