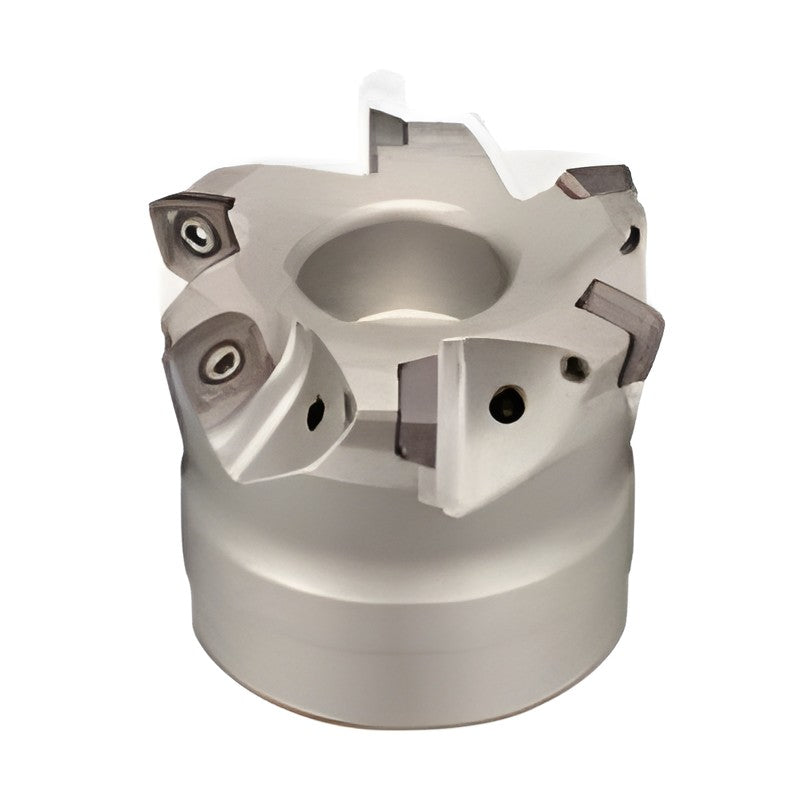

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 08000RS High-Feed Shell Cutter

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 08000RS High-Feed Shell Cutter

High-efficiency multi-function high-feed cutter of the SEC-Wave Mill series using WFX-series inserts for roughing, ramping and helical milling.

Key features

  • Uses WFX-series inserts
  • High-feed roughing with ramping and helical milling capability
  • ACS grades for stainless steel and difficult-to-cut materials
WFXH08040RS Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 26.5 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
WFXH08050RS Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 36.5 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
WFXH08050RS-Z6 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 36.5 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
WFXH08063RS Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 49.5 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal SEC-Wave Mill WFXH 08000RS High-Feed Shell Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (4)

WFXH08040RS, WFXH08050RS, WFXH08050RS-Z6, WFXH08063RS

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFXH08040RSMax cutting dia DCX (mm): 40 | Cutting dia DC (mm): 26.5 | Boss dia DCSFMS (mm): 33 | Height LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.2 | Stock: Yes
WFXH08050RSMax cutting dia DCX (mm): 50 | Cutting dia DC (mm): 36.5 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 5 | Weight (kg): 0.3 | Stock: Yes
WFXH08050RS-Z6Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 36.5 | Boss dia DCSFMS (mm): 41 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
WFXH08063RSMax cutting dia DCX (mm): 63 | Cutting dia DC (mm): 49.5 | Boss dia DCSFMS (mm): 50 | Height LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.5 | Stock: Yes
